Bare Conductor AAC/AAAC/ACSR/ACAR

Bare Conductor AAC/AAAC/ACSR/ACAR thumbnail-1
Bare Conductor AAC/AAAC/ACSR/ACAR thumbnail-2
Bare Conductor AAC/AAAC/ACSR/ACAR thumbnail-3
Bare Conductor AAC/AAAC/ACSR/ACAR thumbnail-4
Bare Conductor AAC/AAAC/ACSR/ACAR thumbnail-5
Bare Conductor AAC/AAAC/ACSR/ACAR thumbnail-6
Bare Conductor AAC/AAAC/ACSR/ACAR thumbnail-7
Bare Conductor AAC/AAAC/ACSR/ACAR photo-1

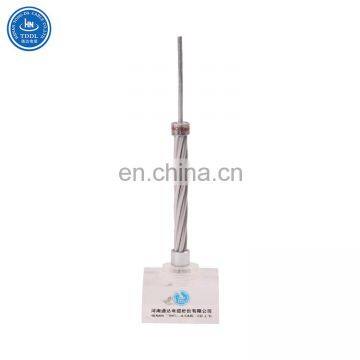

Bare Conductor AAC/AAAC/ACSR/ACAR photo-2
Bare Conductor AAC/AAAC/ACSR/ACAR photo-3
Bare Conductor AAC/AAAC/ACSR/ACAR photo-4
Bare Conductor AAC/AAAC/ACSR/ACAR photo-5
Bare Conductor AAC/AAAC/ACSR/ACAR photo-6
Bare Conductor AAC/AAAC/ACSR/ACAR photo-7
US$ 1 - 15 MOQ: 1 Meter
Key Specifications
Get Latest Price
Brand Name:
HNTDDL
Place of Origin:
Henan, China
Model Number:
AAC/AAAC/ACAR/ACSR
Contact Supplier Request Quote Chat Now
Henan Tong-Da Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HNTDDL
Place of Origin Henan, China
Model Number AAC/AAAC/ACAR/ACSR
Type Bare
Application Overhead
Conductor Material Aluminum
Conductor Type Stranded

ACSR (Aluminum conductor steel reinforced )





Aluminum Conductors Steel Reinforced         ASTM B 232
Code name Area Stranding and wire diameter Approx. overall diameter Weight Nominal breaking load Nominal DC resistance at 20 deg.
Nominal Alum. Steel Total Alum. Steel Alum. Steel Total
  AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ohm/km
TURKEY 6 13.29 2.19 15.48 6/1.68 1/1.68 5.04 37 17 54 5.24 2.1586
SWAN 4 21.16 3.55 24.71 6/2.12 1/2.12 6.36 58 27 85 8.32 1.3557
SWANATE 4 21.16 5.35 26.51 7/1.96 1/2.61 6.53 58 42 100 10.53 1.3557
SPARROW 2 33.61 5.61 39.22 6/2.67 1/2.67 8.01 92 44 136 12.7 0.8535
SPARATE 2 33.61 8.52 42.13 7/2.47 1/3.30 8.24 92 67 159 16.11 0.8535
RAVEN 1/0 53.48 8.9 62.38 6/3.37 1/3.37 10.11 147 69 216 19.32 0.5364
QUAIL 2/0 67.42 11.23 78.65 6/3.78 1/3.78 11.34 185 88 273 23.62 0.4255
PIGEON 3/0 85.03 14.19 99.22 6/4.25 1/4.25 12.75 233 110 343 29.41 0.3373
PENGUIN 4/0 107.23 17.87 125.1 6/4.77 1/4.77 14.31 294 139 433 37.06 0.2675
PARTRIDGE 266.8 135.16 22 157.16 26/2.57 7/2.00 16.28 374 172 546 50.29 0.2143
MERLIN 336.4 170.45 9.48 179.93 18/3.47 1/3.47 17.35 470 74 544 38.23 0.1691
LINNET 336.4 170.45 27.81 198.26 26/2.89 7/2.25 18.31 472 217 689 62.71 0.1699
ORIOLE 336.4 170.45 39.81 210.26 30/2.69 7/2.69 18.83 473 311 784 77.27 0.1704
IBIS 397.5 201.42 32.77 234.19 26/3.14 7/2.44 19.88 558 256 814 72.11 0.1438
LARK 397.5 201.42 46.97 248.39 30/2.92 7/2.92 20.44 560 367 927 88.69 0.1442
PELICAN 477 241.68 13.42 255.10 18/4.14 1/4.14 20.70 666 105 771 52.16 0.1193
FLICKER 477 241.68 31.29 272.97 24/3.58 7/2.39 21.49 670 245 915 76.66 0.1199
HAWK 477 241.68 39.42 281.10 26/3.44 7/2.67 21.79 670 308 978 86.65 0.1199
HEN 477 241.68 56.39 298.07 30/3.20 7/3.20 22.40 671 441 1112 105.34 0.1201
OSPREY 556.5 282.00 15.68 297.68 18/4.47 1/4.47 22.35 777 122 899 60.88 0.1022
PARAKEET 556.5 282.00 36.58 318.58 24/3.87 7/2.58 23.22 781 286 1067 88.22 0.1027
DOVE 556.5 282.00 45.94 327.94 26/3.72 7/2.89 23.55 781 359 1140 101.03 0.1027
EAGLE 556.5 282.00 65.81 347.81 30/3.46 7/3.46 24.21 783 515 1298 122.92 0.103
PEACOCK 605 306.58 39.74 346.32 24/4.03 7/2.69 24.20 849 311 1160 95.88 0.0945
SQUAB 605 306.58 49.94 356.52 26/3.87 7/3.01 24.51 850 390 1240 108.14 0.0945
TEAL 605 306.58 69.87 376.45 30/3.61 19/2.16 25.24 851 548 1399 133.59 0.0947
GROSBEAK 636 322.26 52.45 374.71 26/3.97 7/3.09 25.15 893 409 1302 111.8 0.08989
STARLING 715.5 362.58 59.03 421.61 26/4.21 7/3.28 26.68 1005 461 1466 125.91 0.07989
TERN 795 402.84 27.87 430.71 45/3.38 7/2.25 27.03 1116 217 1333 97.37 0.07191
CONDOR 795 402.84 52.19 455.03 54/3.08 7/3.08 27.72 1116 408 1524 124.45 0.07191
CUCKOO 795 402.84 52.19 455.03 24/4.62 7/3.08 27.74 1116 408 1524 123.94 0.07191
DRAKE 795 402.84 65.61 468.35 26/4.44 7/3.45 28.11 1116 512 1628 139.92 0.07191
MALLARD 795 402.84 91.87 494.71 30/4.14 19/2.48 28.96 1119 719 1838 171.18 0.07208
RAIL 954 483.42 33.42 516.84 45/3.70 7/2.47 29.61 1339 262 1601 115.63 0.05992
CURLEW 1033.5 523.68 67.87 591.55 54/3.52 7/3.52 31.68 1451 530 1981 161.8 0.05531
BLUEJAY 1113 563.93 39.03 602.96 45/4.00 7/2.66 31.98 1563 305 1868 132.63 0.05136
FINCH 1113 563.93 71.55 635.48 54/3.65 19/2.19 32.85 1570 560 2150 174.41 0.05161



AAAC (All Aluminum Alloy Conductor)

Applications:

 AAAC aluminum alloy conductors are extensively used for overhead distribution and transmission lines adjacent to ocean

 coastlines where there can be a problem of corrosion in the steel of an ACSR construction. The aluminum alloy conductors

are used in place of single-layer ACSR conductors (i.e., #6 to #4/0 AWG) to reduce power losses in overhead distribution and transmission lines.

The inductive effect of the ACSR's steel core is eliminated, hence increasing the operating efficiency of the line.



Construction:

Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay-stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are

 similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for

 an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum

conductors, but without a steel core.
