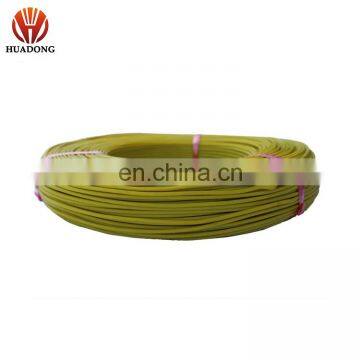

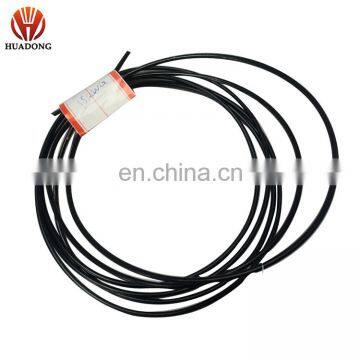

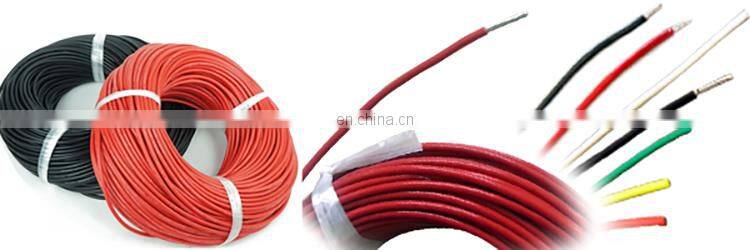

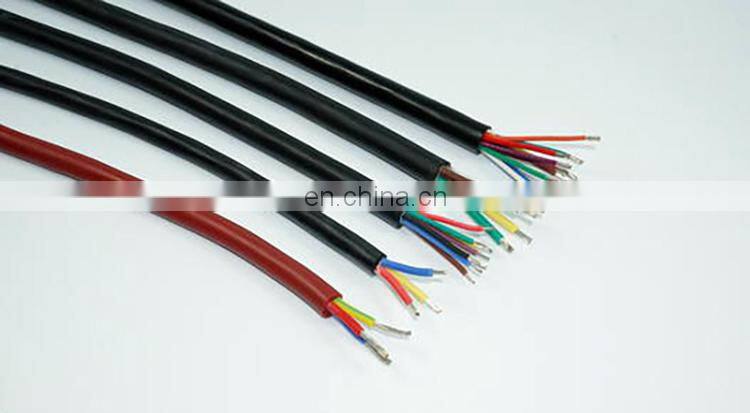

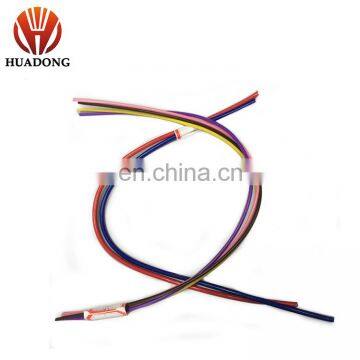

insulated electrical wire high temperature wires 0.75mm copper wire
| Name | PFA/FEP/PTFE Insulated High-temp wire |
| Conductor | Silver/Tin-plated Copper wire |
| Insulated | FEP/ETFE/PFA etc. |
| Model | AFX/AFPX |
| Voltage test | 1500V - 2000V |
| Voltage range | 300V - 600V |
| Temperature range | -100ºC~ +200ºC, peak at 250ºC |
| Standards | VDE0250 etc |
| Color | Red, white, yellow, green, blue, black, transparent, double-color, etc. |
| Core | single or muilti |
| Note | we accept customer's OEM requirement for any wire and cable |
Click Now for Catalogs & Factory Price!
| Description: | |
| (a) Conductor |
This FEP, PFA or PTFE insulated wire and cable is configured with the bare copper, tinned annealed, silver wire serving as the conductor. Therein, the tinned copper is the copper strand made of high pure copper rod, with the tin is coated on bare copper. The tin coating is about 7 or 8μm thick.
In addition, the nickel coated copper wire varies in two types, namely the common nickel coating with 3% thickness used at 200ºC and the electric plating layer with 27% thickness working at 450ºC. Our conductor is made according to the class 5 IEC standard. It is featured by preeminent flexibility and conductive performance, obeying the rules on protecting the environment.
|
| (b) Insulation | With strict quality control, our insulated wire and cable employs optimal insulation materials, like FEP, PTFE and PFA . It has outstanding performance in resisting high temperature, corrosion, chemical liquid, acid and alkali. Our product also offers excellent thermal stability, suitable for working at 200ºC continuously. Due to the extruded FEP insulation layer with thin or heavy wall, the product is space saving and light in weight. |
Related High Temperature wire products:
Henan Huadong Cable Co., Ltd. is a joint stock enterprise integrated in cable production, and domestic & international trade, founded in 2005, located in Xiuwu Industrial Zone, Jiaozuo and occupied 66,000 square meters, with advanced 20 sets equipments and 25 sets testing machines, annual production capacity is over 15 million kilometers.Henan Huadong Cable Co., Ltd. is a joint stock enterprise integrated in cable production, and domestic & international trade, founded in 2005, located in Xiuwu Industrial Zone, Jiaozuo and occupied 66,000 square meters, with advanced 20 sets equipments and 25 sets testing machines, annual production capacity is over 15 million kilometers.
Our collaborated cocompany is Henan Huadong Cable Co., Ltd. located in Zhengzhou city, which is well-known for convenient transportation.
We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-35kV power cables (including XLPE insulated cables, PVC insulated cables, SWA/STA a rmored cables), (XLPE/PVC insulated ABC cable), control cables, welding cables, rubber cables, mining cables and electrical wires (PVC sheathed flexible cable). These cables can be used for power transmission in air, underground and industry, such as power station, railway, agriculture, and estate. We strictly according to GB, IEC, BS, ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.
We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia, Oceania countries. We are adhering reliable quality and professional service to make our Huadong Cable be famous in domestic and oversea. Thanks for your supporting and trusting! Huadong Cables welcomes your inquiry and visiting, we are at your service !
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
