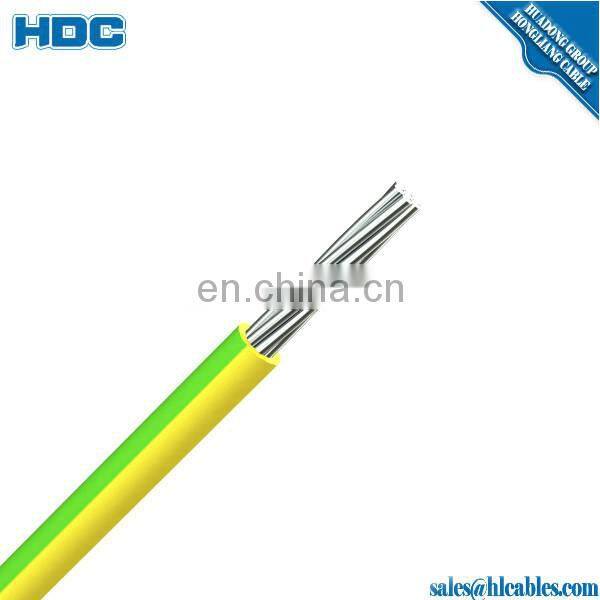

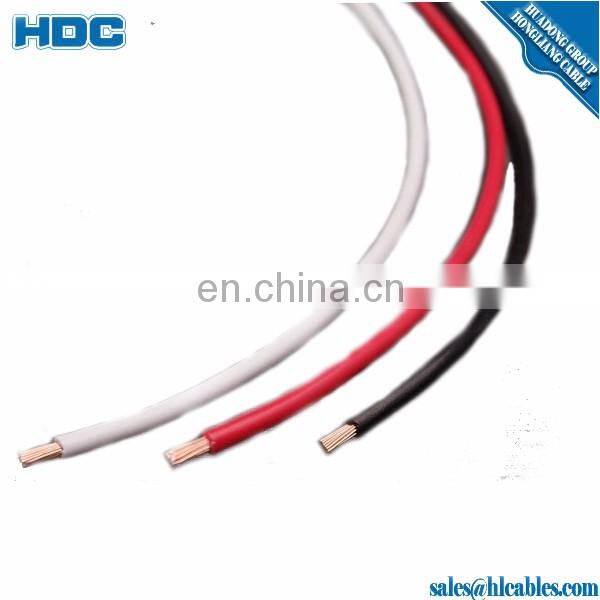

Item name: Hook-up Wire 2.5mm electric cable electric cable electric cable wire with single core stranded solid copper and pvc jacket
1.Application
This product is apply for AC450/750V or below power, and household electrical appliance,Instrument and apparatus, telecommunications equipment and lighting ect. fixed installation.
2.Operating Characteristic
1)The rated voltage of cable Uo/U is:450/750V,300/500V,300/300V
2)The conductor of electric wire cable allows working temperature <70°C for long time
3) The installment temp of cable should not less than 0°C, OD<25mm cable, allowed bending radius should ≥4D,OD≥25mm, allowed bending radius should≥6D
3.Executive Standard
JB/T8734-2012,GB/T5023-2008
1. Single core electrical house wire.
nductor: solid or stranded or flexible.
3.insulation: PVC insulation
4.Rated voltage: 450/750V
5.Size: 0.75mm2- 400mm2.
|
Nominal Section (mm2) |
No./Diameter (mm) |
Max. Overall Diameter(mm) |
Copper Weight (kg/100m) |
Plastic Weight (kg/100m) |
Total Weight (kg/100m) |
0.75² |
1/0.97 |
2.25 |
0.66 |
0.48 |
1.14 |
1² |
1/1.13 |
2.40 |
0.89 |
0.53 |
1.42 |
1.5² |
1/1.38 |
2.90 |
1.33 |
0.75 |
2.08 |
2.5² |
1/1.78 |
3.4 |
2.2 |
1.1 |
3.16 |
4² |
1/2.25 |
3.9 |
3.54 |
1.31 |
4.73 |
6² |
1/2.76 |
4.4 |
5.33 |
1.42 |
6.72 |
10² |
7/1.35 |
6.2 |
9.02 |
2.6 |
11.7 |
16² |
7/1.70 |
7.2 |
14.3 |
3.0 |
17.3 |
25² |
7/2.14 |
9.0 |
22.7 |
4.8 |
27.5 |
35² |
7/2.52 |
10.1 |
31.4 |
5.6 |
37 |
50² |
19/1.78 |
11.9 |
42.8 |
7.5 |
50.3 |
70² |
19/2.14 |
13.7 |
62 |
8.5 |
70.5 |
95² |
19/2.52 |
16.0 |
85.7 |
11.3 |
97 |
120² |
37/2.03 |
17.6 |
108.4 |
12.6 |
121 |
150² |
37/2.25 |
19.5 |
133.2 |
15.8 |
149 |
185² |
37/2.52 |
22 |
167.1 |
20.4 |
187.5 |
240² |
61/2.24 |
25 |
218.7 |
26.8 |
245.5 |
300² |
61/2.50 |
27.5 |
271.5 |
29.0 |
300.5 |
400² |
61/2.85 |
31 |
352.5 |
35.8 |
388.3 |
Hook-up Wire 2.5mm electric cable electric cable electric cable wire with single core stranded solid copper and pvc jacket
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
Hook-up Wire 2.5mm electric cable electric cable electric cable wire with single core stranded solid copper and pvc jacket
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km .
Hook-up Wire 2.5mm electric cable electric cable electric cable wire with single core stranded solid copper and pvc jacket Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
Hook-up Wire 2.5mm electric cable electric cable electric cable wire with single core stranded solid copper and pvc jacket Certificate:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
1.what is our payment term ?
1.Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
