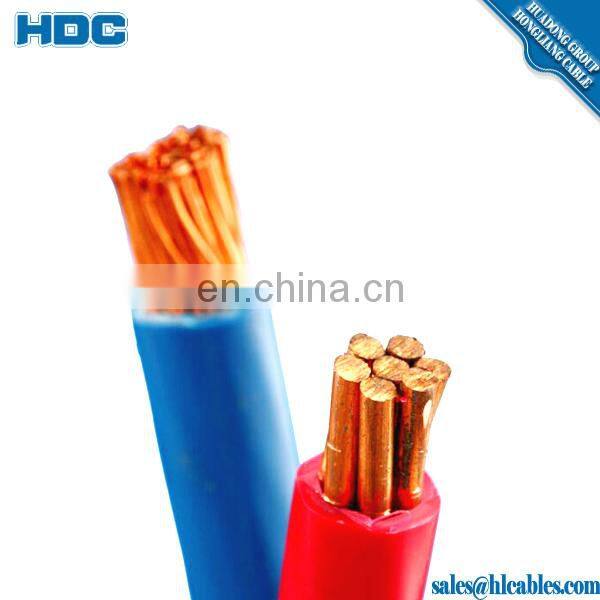

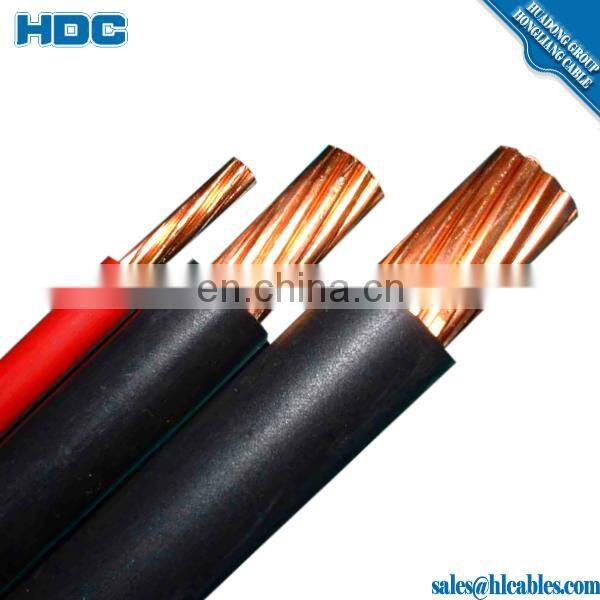

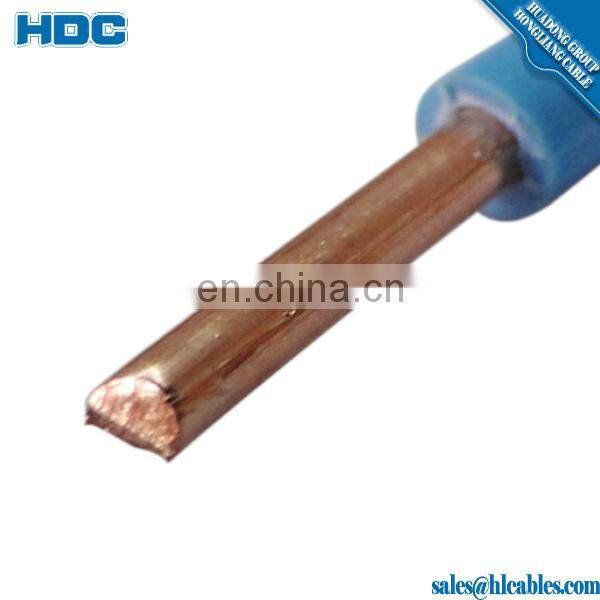

KYNAR PVDF HMWPE Cable for Cathodic Protection:
Appllication for PVDF Cable:
Cathodic protection cables CU/PVDF/HMWPE are used as deep anode lead wires where chlorine and hydrogen gases are generated
The cathodic protection cable CU/PVDF/HMWPE can be directly installed in fresh, brackish, or salt waters
Construction for PVDF Cable:
Conductor------------ stranded bare or tinned copper conductor conforms to ASTM Spec B-3 and B-8
Insulation-------------- PVDF Fluoropolymer
Sheath/Jacket ------- HMWPE (High Molecular Weight Polyolefin) to ASTM Spec D-1248
size --------------------- 8 AWG through 1/0 AWG sizes
Cathodic protection cable is made with a flouropolymer insulation that has exceptional resistance to chemicals. Cathodic protection cable consists of a layer of insulation on the conductor, followed by a layer of HMWPE (high molecular weight polyethylene) insulation. The PVDF insulation is extremely resistant to chlorine, sulfuric acid and hydrochloric acid, which the HMWPE alone cannot withstand. The HMWPE outer jacketing can provide flexible strength and can withstand much abuse during installation without damaging the conductor.
Technical Parameter for PVDF Cable:
Conductor |
Nominals (In.) |
|||||||
AWG |
Strand |
Dia |
Cir Mils |
PVDF |
HMWPE |
Dia |
Wgt/MFT |
DC Ohms |
8 |
7 |
0.146 |
16,533 |
0.02 |
0.065 |
0.316 |
81 |
0.645 |
6 |
7 |
0.184 |
26,218 |
0.02 |
0.065 |
0.354 |
116 |
0.407 |
4 |
7 |
0.232 |
41,718 |
0.02 |
0.065 |
0.402 |
170 |
0.256 |
2 |
7 |
0.292 |
66,407 |
0.02 |
0.065 |
0.462 |
254 |
0.16 |
PVDF Cable:
1)Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
PVDF Cable :
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
PVDF Cable:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
PVDF Cable:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
you are welcome at any time ,please send me inquiries .
thanks dear .
