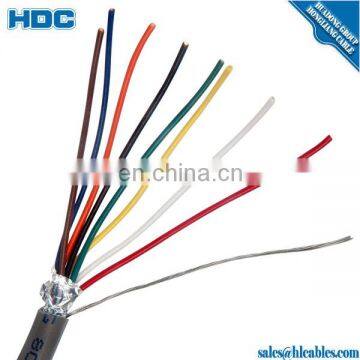

Help Center24 AWG (14/34) 0.25 Mm2 21 AWG (16/32) 0.50 Mm2 18 AWG (32/32) 1.0 Mm2 LiYCY (TP) Cable
Related Products
-
Three Conductor of Copper, Gauge # 8 AWG + Ground, 600 V, THW Insulation, 75 ''CUS$ 0.1 - 50MOQ: 100 Meters -
Factory Best Selling Yellow Green H07V-K Cable 6mm2 PVC Insulation Flexible Conductor Without Sheath Equipment WireUS$ 0.1 - 5MOQ: 200 Meters
-
CONDUCTOR DE COBRE DE 300 MCM CON AISLACION TIPO THHNUS$ 0.1 - 50MOQ: 100 Meters
-
High Quality Copper Wire Screened Control Cable F-cvv-sb CableUS$ 0.1 - 6.35MOQ: 10 Meters
-
Copper Conductor XLPE Insulated Shielded PVC Sheathed Flexible Control CableUS$ 0.1 - 3.6MOQ: 100 Meters
Continuous Flexing Control Cable Wire Size 22 AWG Number of Conductors 4 Spool Length 1 to 1600 ft. Max Amps 7 Max Voltage 300V Nominal Outside Dia 0.2 In. Jacket Color Dark Blue Wire Color Black with White Numbers + (1) Green/Yellow Min Bend Radius 5 x O.D. Unshielded Conductor Material Copper Jacket Material TPE Temp Range -31 Degrees to 212 Degrees F Features Oil and Coolant Resistant Flame Retardant Notch Proof and PVC and Halogen Free Standards DIN47100
For prices, please contact us via the below contact form or go to the CONTACT page and visit our website. The prices in our website are not discounted so please contact us to know the BEST wholesale price!
specification:
1.Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable
GB9330-1988,IEC,DIN,BS,450/750V AC
2,450/750V Copper Coductor PVC Insulated and sheathed Flexible Control Cable
Detailed Product Description
3,The control cable can be produced according to the standard GB9330-1988,IEC,DIN,BS,and the factory can also manufacture the cables in accordance with other standards.
4,The control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
5,Maximum operation voltage: 600 V.
6,Maximum operation temperature in the conductor:
90°C In a dry environment.
75°C In a wet environment.
7,Soft drawn concentric lay stranded copper conductor class B (7 wires).
8,Manufactured in sizes from 0,823 5 to 5,26 mm2 (18 to 10 AWG).
9,No-flame propagation characteristics.
10,Polyvinyl Chloride (PVC) insulation and jacket with low smoke emission and low acid gas content characteristics.
Black outer jacket.
11,Con. Multiple-cond. THW-LS / THHW-LS Con. Multiple-cond. THWN / THHN Con. PE + PVC type
Control EPR + CPE Type Control EPR + PVC Type Control XLPE + PVC
Control Zero Halogens LS PVC + PVC type LS PVC + PVC type / shielded cables
0.6 / 1kv control cable Name |
Section Area(mm2) |
No. of Core |
0.6 / 1kv control cable Application Site |
Copper Conductor,PVC Insulated and Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-16 |
Permanent installation indoors,in cable ditches or pipes |
4 6 |
2-14 |
||
10 |
2-10 |
||
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable |
0.75 1.0 1.5 2.5 |
2-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
2-14 |
||
10 |
2-10 |
||
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable |
0.75 1.0 1.5 2.5 |
4-10 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
7-61 |
||
10 |
4-10 |
||
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
4 6 |
4-14 |
||
10 |
4-14 |
||
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable |
0.5 0.75 1.0 |
4-61 |
Installation indoors where flexibility shielding and movability are required |
1.5 2.5 |
4-48 |
||
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-16 |
Permanent installation indoors,in cable ditches or pipes |
4 6 |
2-14 |
||
10 |
2-10 |

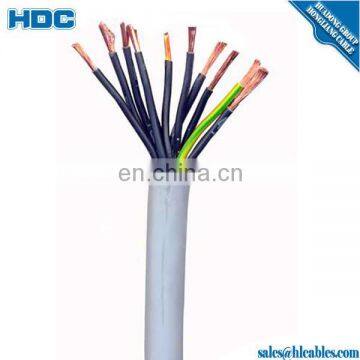

24 AWG (14/34) 0.25 mm2 21 AWG (16/32) 0.50 mm2 18 AWG (32/32) 1.0 mm2 LiYCY (TP) cable .
1,100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
24 AWG (14/34) 0.25 mm2 21 AWG (16/32) 0.50 mm2 18 AWG (32/32) 1.0 mm2 LiYCY (TP) cable .
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
control cable Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
control cable Certificate:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
