Silicone rubber is resistant to extreme temperature conditions, as for high (up to 180 °C, briefly even to 250 °C), so also for low (-60 °C) temperature. It has a high point (temperature) of inflammability, it is halogen-free, releases no corrosive gases at combustion, and around the conductor is formed additional insulation of silicone-oxide ashes. Due to a higher electrical resistance, tinned copper is also more suitable for higher temperatures (up to 220 °C) than bare copper. Such composition of these conductors makes them applicable in extreme temperature environment, for inst. in steel production, aircraft industry, same as in shipbuilding, cement plants and glass and ceramics factories, in electric power plants etc. They are also suitable for inner wiring of lighting, heating elements, burners, furnaces etc. To retain its mechanical properties at temperatures higher than 90 °C, silicone rubber needs to be properly ventilated or laid outdoor or in tubes. Glass fibers increase mechanical resistance of conductor. |
Home > Products > Rubber Cable > Shipbuilding 180degree SiF/GL Silicone Rubber Cable 2.5mm2 Class5 Tinned Copper Codnuctor Factory Price
Shipbuilding 180degree SiF/GL Silicone Rubber Cable 2.5mm2 Class5 Tinned Copper Codnuctor Factory Price
- Qingdao /Tianjin/Shanghai / Guangzhou for Multi conductor ABC cable
- T/T Credit Card
You May Like
-
VDE 0250 220 Degree SiHF Silicone Rubber Cable 5x1.5mm2 Tinned Copper Conductor Factory Price
-
3x35 + 1x25 Mm2 Rubber RTI-1 or RTI-2-CL Flexible 35mm2 2awg Cat5e Waterproof Electrical Silicone Rubber Welding Cable
-
3+2 Core Power Cable 3+1 Core 4+1 Core Power With Earth Conductor LV Cable
-
H01N2-D and H01N2-E Welding Cable 2-5Cores 450/750V 16 25 35 50 Mm2 Flexible General Rubber Sheath
-
JISC Standard Stranded Copper Conductor PNCTF 2 Core 3 Core 4 Core 0.75mm2 1.25mm2 2.0mm2 Rubber Cable
-
Steel Braided SiHF/GLS Flexible Cable 5x1mm2 Class 5 Tinned Copper Conductor Silicone Rubber Glass Fiber Grid Cable Price
Product Details
| Brand Name | Huadong | Place of Origin | Henan, China | |
| Model Number | SiF/GL Cable | Type | Insulated | |
| Insulation Material | Rubber | |||
| Conductor Material | Copper |
Product Description
Shipbuilding 180degree SiF/GL silicone rubber cable 2.5mm2 class5 tinned copper codnuctor factory price
Applications:
Standards
Construction:
Conductor:Tinned copper conductor,fine wired strande,class5 acc.to IEC 60228/HD383/DIN VDE0295
Insulation:silicone rubber
Braid:fiberglass grid

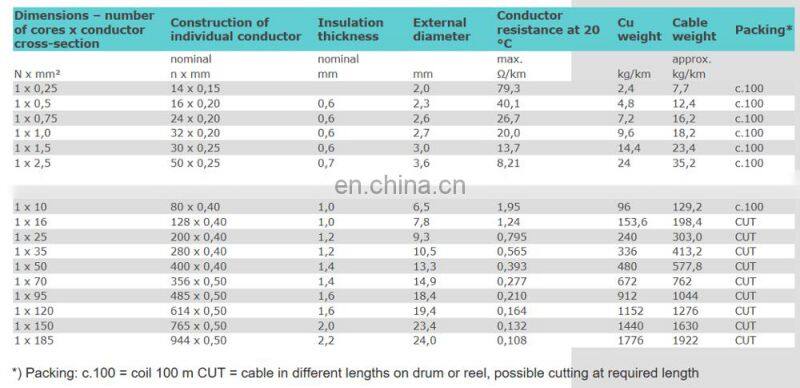

Technical data
Temperature range:
-Operating temperature:-60℃ up to +180℃(with adequate ventilation)
-Short-term peak temperature :220℃
-Norminal Voltage:U0/U=300/500V
-Test voltage:2000V
-Behaviour in fire:IEC60332-1
-Halogen-free:IEC 60754-1
Corrosiveness of combustion gases:not corrosive acc.to IEC60754-2
Specific el.resistance of insulation:>200MΩxkm
Maximal tensile strength:
Under normal conditions:5N/mm2
After ageing (240h/200℃):4N/mm2
Minimal inner bending radius:15D
Packing by iron-wooden drum or as customer`s requirement.
Shipbuilding 180degree SiF/GL silicone rubber cable 2.5mm2 class5 tinned copper codnuctor factory price
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km .
Main products:
Bare stranded conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);OPGW,0.6/1KV Aerial Bundled Cable (ABC Cable);Power cable,Electrical wire cable,Different voltages of XLPE insulated cables, Armored cables, Control cables, Rubber insulated cables, PVC insulated wires and cables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.
Frequently Asked Question
1. Which payment terms do you accept?
a.The payment term varies with different price level and total rate of each contract.
The following are most common terms:
b. 30% T/T down payment, the balance before you picking up the goods.
c. 100% L/C at sight.
d. 30% T/T down payment, the balance against 100% L/C at sight.
2. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different cable type.
Usually it’s 100 meters for Medium Voltage Cables.
3. What about the lead time for our cable product ?
The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.
4. What about our product's package ?
our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.
