Home > Products > Rubber Cable > Rubber Cable BASKET HEAVY FLEX SPREADER CONTROL CABLE 300/500V 3GRDGOU 36/42/48/54C 2.5mm for Gravity Fed Collector
Rubber Cable BASKET HEAVY FLEX SPREADER CONTROL CABLE 300/500V 3GRDGOU 36/42/48/54C 2.5mm for Gravity Fed Collector
- Qingdao/ Tianjin or as your request
- T/T Credit Card
You May Like
-
MGCG Marine Type Shipboard Boat Power Cable 0.6/1kv Tinned Copper Conductor EPR Insulation Copper Wire Braid CR Sheath
-
Free Samples, CEI 20-22/2, Fg7r/Fg7or, Flexible Cu/Hepr/PVC Rubber Cable, 0.6/1kV
-
Flexible Copper Conductor 50mm2 Welding Cable/Battery Cable/earth Lead Cable
-
4 Core Rubber Cable Malaysia New Zealand 16mm2 Flexible Cable
-
Vacuum Cleaner Rubber Cable H05RR-F 300/500V 5G 2.5mm2 Factory Price
-
YJGCFPB 10kv 6kv Flat Rubber Power Cable Silicon Rubber Insulation Sheath Tinner Copper Shielded Wild Rolling Use
Product Details
| Brand Name | Huadong | Place of Origin | Henan, China | |
| Model Number | FRNC rubber cable H07ZZ-F 02X1 SW 450/750V | Type | Low Voltage | |
| Application | Industrial | Insulation Material | Rubber | |
| Jacket | Rubber | Conductor Material | Copper |
Product Description

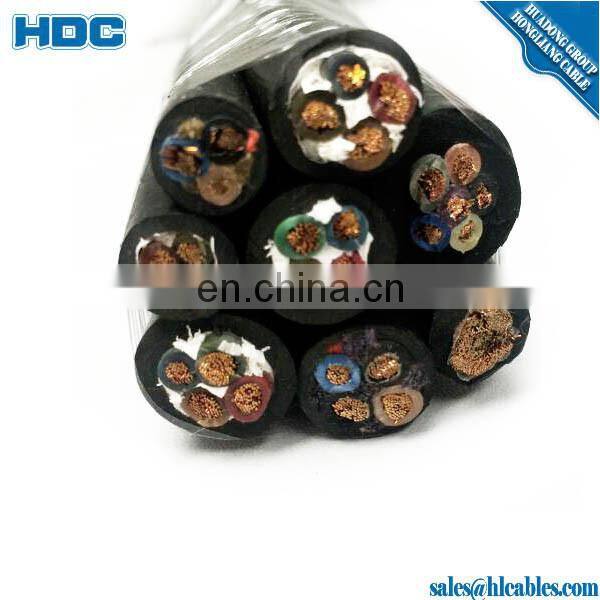

Item name:Rubber cable BASKET HEAVY FLEX SPREADER CONTROL CABLE 300/500V 3GRDGOU 36/42/48/54C 2.5mm for gravity fed collector
MAIN APPLICATION
For vertical operation with high mechanical stress, suitable to be collected in gravity-fed collector basket.

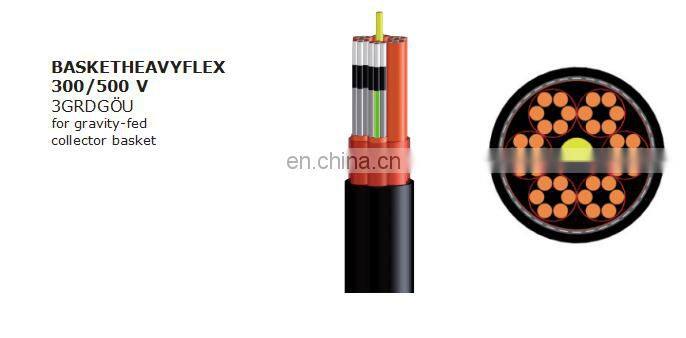

CONSTRUCTION
Conductor: Tinned copper conductor, cl.5 IEC 60228 Specially designed for mobile application
Insulation: EPR compound better than 3GI3 Specially developed compound with improved mechanical characteristics
Cores identification: Black with printed numbers+1 green/yellow Each cores consecutively numbered
Bundle: Six cores layed-up with suitable tape(s)
Central strainer: Made of aramidic yarns To be used as support element with a minimun tensile stregth of 10 kN
Laying-up: Short lay length for better ≤ 8 times the laying-up bundle diameter
Separation(if any): Tape(s)
Inner sheath: Polychloroprene rubber based compound Better than GM1b
Anti-twisting protection: Synthetic yarns Firmly bonded between inner and outer sheath
Outer sheath: Special CSP compound High density specially developed compound UV resistant, lubricants resistant

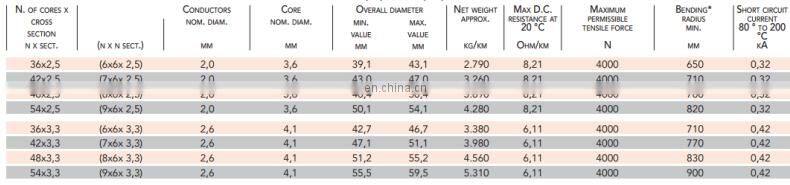

PARAMETERS
Electrical | Rated voltage | Uo/U= 300/500 V |
Maximum permissible operating voltage in AC systems | Um = 550 V | |
AC test voltage over 5 minutes | 2,0 kV | |
|
| |
Thermal | Fully flexible operation | - 25 °C |
Fixed installation | - 40 °C | |
Maximum permissible operating temperature of the conductor | 90 °C | |
Short-circuit temperature of the conductor | 250 °C |
Mechanical | Tensile load | Up to 15 N/mm2 with minimum 4000 N |
| Travel speed | Up to 160 m/min |
|
|
|
Chemical | Resistance to oil | According to VDE / IEC standard |
| Weather resistance | Unrestricted use outdoor and indoor, |
|
| UV resistant, moisture resistant. |
Rubber cable BASKET HEAVY FLEX SPREADER CONTROL CABLE 300/500V 3GRDGOU 36/42/48/54C 2.5mm for gravity fed collector
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request.
Rubber cable BASKET HEAVY FLEX SPREADER CONTROL CABLE 300/500V 3GRDGOU 36/42/48/54C 2.5mm for gravity fed collector
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km .
Rubber cable BASKET HEAVY FLEX SPREADER CONTROL CABLE 300/500V 3GRDGOU 36/42/48/54C 2.5mm for gravity fed collector standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
Rubber cable BASKET HEAVY FLEX SPREADER CONTROL CABLE 300/500V 3GRDGOU 36/42/48/54C 2.5mm for gravity fed collector Certificate:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
