Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Huadong Bare Wire Cable Manufacturers Aaac Conductor Wire From China
US$ 0.1 - 50
MOQ: 500 Meters
Key Specifications
Get Latest Price
Brand Name:
Huadong cable Group
Place of Origin:
Henan, China
Model Number:
aaac, AAAC
Payment & Shipping
Payment Methods:
Port of Shipment:
AAAC MOOSE CONDUCTOR can be Qingddao/Shanghai/Tianjin/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Huadong AAC 500 MCM Stranding Conductor Electrical Wires Used All Aluminum MaterialUS$ 1 - 1MOQ: 500 Meters -
Huadong MV ABC Cable Aluminium 11kv Price List of Aerial Bundled Cable ABC Concentric CableUS$ 1 - 10MOQ: 500 Meters
-
Insulated Overhead Cable Aluminum Bundled 4*70 ABC CableUS$ 5 - 30MOQ: 1000 Meters
-
185mm2 150mm2 120mm2 70mm2 50mm2 95mm2 AAAC ConductorUS$ 0.1 - 50MOQ: 500 Meters
-
0.6/1 kv Aliminum ABC Cable 150mm 3c Service Drip WireUS$ 1.2 - 28MOQ: 1000 Meters
Brand Name
Huadong cable Group
Place of Origin
Henan, China
Model Number
aaac, AAAC
Product Description

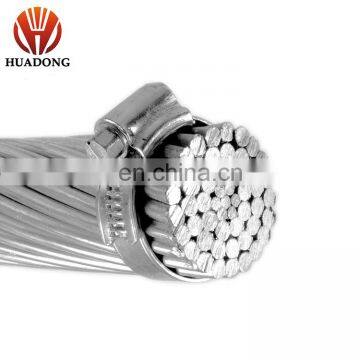

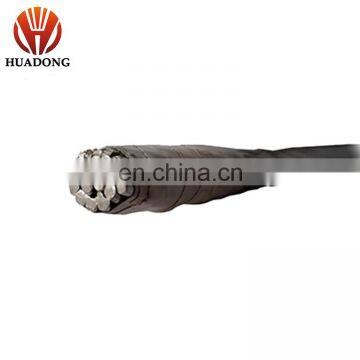

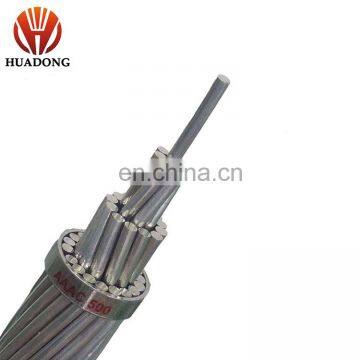

AAAC aluminum alloy conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction. All Aluminum-Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum -alloy wires available in both single layer and multi-layer constructions.
AAAC Technical characteristics of Canadian
| Conductor size | Stranding | Section area | Diameter of conductor | Linear mass | Rated strength | D.C. resistance at 20℃ | Current Rating |
| MCM | No./mm | mm2 | mm | Kg/km | kgf | Ω/km | A |
| 19 | 7/1.32 | 9.5 | 3.96 | 26 | 290 | 3.416 | 55 |
| 24 | 7/1.48 | 12 | 4.44 | 33 | 360 | 2.71000 | 69 |
| 30 | 7/1.66 | 15.20 | 4.98 | 41.00 | 460 | 2.14800 | 79 |
| 38 | 7/1.86 | 19.10 | 5.58 | 52.00 | 580 | 1.70300 | 93 |
| 48 | 7/2.09 | 24.10 | 6.27 | 66.00 | 730 | 1.35200 | 108 |
| 60 | 7/2.35 | 30.40 | 7.05 | 83.00 | 920 | 1.07200 | 126 |
| 76 | 7/2.64 | 38.30 | 7.92 | 105.00 | 1160 | 0.84940 | 139 |
| 95 | 7/2.96 | 48.30 | 8.88 | 132.00 | 1470 | 0.67420 | 161 |
| 120 | 7/3.33 | 61.00 | 9.99 | 166.00 | 1850 | 0.53440 | 186 |
| 152 | 7/3.74 | 76.80 | 11.22 | 210.00 | 2330 | 0.42380 | 211 |
| 192 | 7/4.20 | 97.00 | 12.60 | 265.00 | 2940 | 0.33550 | 242 |
| 241 | 7/4.72 | 122.30 | 14.15 | 334.00 | 3710 | 0.26660 | 276 |
| 241.0 | 19/2.86 | 122.30 | 14.30 | 335.00 | 3710 | 0.26780 | 280 |
| 304.0 | 19/3.21 | 154.10 | 16.05 | 423.00 | 4670 | 0.21250 | 321 |
| 342.0 | 19/3.41 | 173.40 | 17.05 | 475.00 | 5260 | 0.18890 | 343 |
| 384.0 | 19/3.61 | 194.40 | 18.05 | 533.00 | 5890 | 0.16840 | 369 |
| 453.0 | 19/3.92 | 229.70 | 19.60 | 629.00 | 6970 | 0.14230 | 404 |
| 544.0 | 19/4.30 | 275.70 | 21.50 | 756.00 | 8360 | 0.11870 | 451 |
| 570.0 | 37/3.15 | 288.80 | 22.05 | 796.00 | 8760 | 0.11370 | 464 |
| 635.0 | 37/3.33 | 321.50 | 23.31 | 885.00 | 9740 | 0.10260 | 497 |
| 725.0 | 37/3.56 | 367.40 | 24.92 | 1012.00 | 11140 | 0.08950 | 533 |
| 816.0 | 37/3.77 | 413.50 | 26.39 | 1140.00 | 12540 | 0.07950 | 577 |
| 856.0 | 37/3.86 | 433.70 | 27.02 | 1195.00 | 13140 | 0.07580 | 594 |
| 907.0 | 37/3.98 | 459.40 | 27.86 | 1266.00 | 13920 | 0.07140 | 614 |
| 997.0 | 37/4.16 | 505.20 | 29.12 | 1391.00 | 15320 | 0.06500 | 648 |
