170.48mm2 Aluminum Electric Cable Anona
US$ 0.1 - 6.2
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
Huadong
Place of Origin:
Henan, China
Model Number:
Cable Anona
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai/Ningbo/Guangzhou for Cable Anona
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Supply ASCR/AAC/AAAC Conductor&Cable for Overhead Transmission&Distribution LineUS$ 1 - 99MOQ: 200 Meters -
2x10mm2 Low Voltage AAC Phase Conductor Overhead Twisted ABC CableUS$ 0.1 - 66MOQ: 500 Meters
-
Overhead Aluminium XLPE Insulated Aluminium Conductor 3 Core Aerial Bundled CableUS$ 0.2 - 26MOQ: 1000 Meters
-
SIP 2A Wire 3*50+1*54.6 Standard GOST Aerial Bundled Cable AAC XLPE AAAC Neutral Messenger Uninsulated Self-supportingUS$ 0.1 - 6.35MOQ: 10 Meters
-
Overhead Line ACSR Cable 200mm2 Chafer Aluminum Conductor Steel Wire Core 11kv and 33kv VoltageUS$ 1 - 99MOQ: 200 Meters
Brand Name
Huadong
Place of Origin
Henan, China
Model Number
Cable Anona
Application
Overhead
Insulation Material
XLPE
Conductor Material
Aluminum
170.48mm2 Aluminum Electric Cable Anona
Specifications for Cable Anona :
1,0.6/1KV.
2. Conductor: aluminum/copper.
3. Insulation: XLPE/PVC/PE
4. Cores: 1 C, 2C, 3C, 4C.
5. Nominal Cross-section: 10mm2 to 400mm2.
6. Standard: NFC33-209/ UTE33-209
7. Max. Operating Temperature: XLPE/PE: 90 °C
8. Type: ABC Cable, JKTRYJ, JKLYJ,JKTRY, JKLY, JKLGYJ, JKLGY, JKLYJ/Q, JKLY/Q, JKLGYJ/Q, JKLGY/Q.
9.Packing: Wooden Drum or according to the customer requirement.
10.Remark: The cable can be of flame retardant, fire resistance and other property.
Aerial Bundle ABC Cable
Construction &Types for Cable Anona:
| Code*Word | Phase conductor | Bare Neutral Message | Nominal lay Length | Weight Per 1000 ft.(lbs.) |
Allo wable Amp acitles | ||||||
| Size (A WG) |
Stranding | Insul Thick(Mils) |
Size (AWG) |
Stranding | Rated Strength (lbs.) |
inches | XLP | POLY | XLP | POLY | |
| AAC Neutral-messenger | |||||||||||
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 10.36 | 61 | 61 | 85 | 70 |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 10.36 | 64 | 64 | 85 | 70 |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 10.36 | 92 | 92 | 115 | 90 |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 10.36 | 96 | 96 | 115 | 90 |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 14.88 | 147 | 147 | 150 | 120 |
| Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 14.88 | 234 | 234 | 205 | 160 |
| Code*Word | Phase conductor | Bare Neutral Message | Nominal lay Length | Weight Per 1000 ft.(lbs.) |
Allo wable Amp acitles | ||||||
| Size (A WG) |
Stranding | Insul Thick(Mils) |
Size (AWG) |
Stranding | Rated Strength (lbs.) |
inches | XLP | POLY | XLP | POLY | |
| AAC Neutral-messenger | |||||||||||
| Clydessdale | 4 | 1 | 45 | 4 | 7 | 881 | 20.58 | 198 | 198 | 100 | 80 |
| Pinto | 4 | 7 | 45 | 4 | 7 | 881 | 20.58 | 211 | 211 | 100 | 80 |
| Mustang | 2 | 7 | 45 | 2 | 7 | 1350 | 25.42 | 318 | 318 | 135 | 105 |
| Criollo | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 25.42 | 503 | 503 | 180 | 140 |
| Percheron | 2/0 | 11 | 60 | 2/0 | 7 | 2510 | 29.97 | 619 | 619 | 205 | 160 |
| Hanovarian | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 35.18 | 764 | 764 | 235 | 185 |
| Oldenburg | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 35.18 | 945 | 945 | 275 | 210 |
| Lippizaner | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 38.79 | 1519 | 1519 | 370 | 280 |

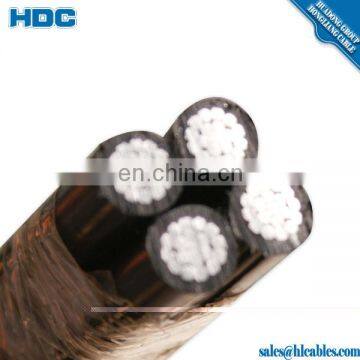

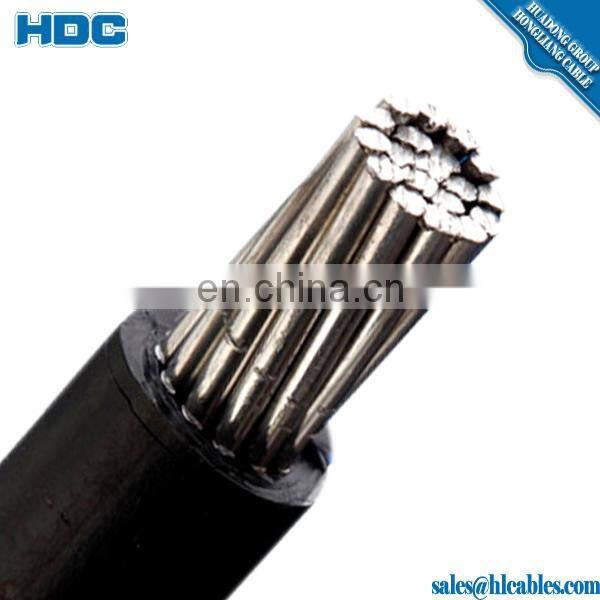

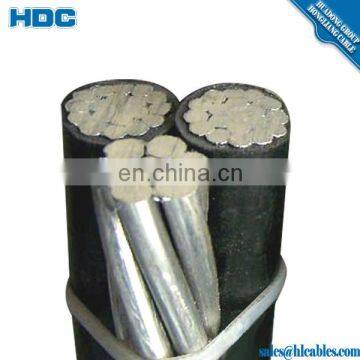

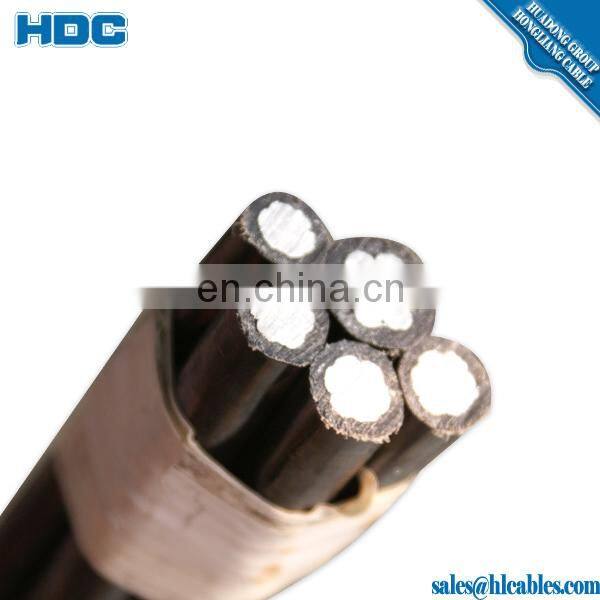

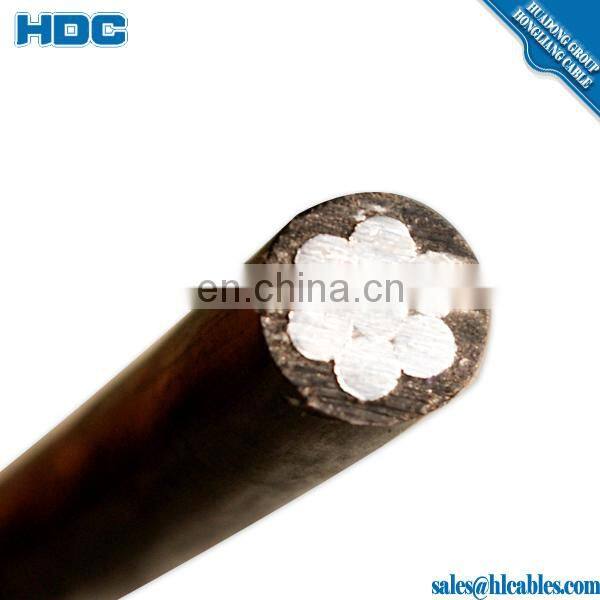

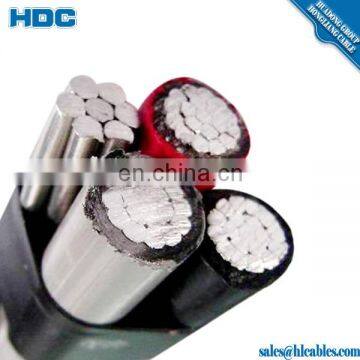

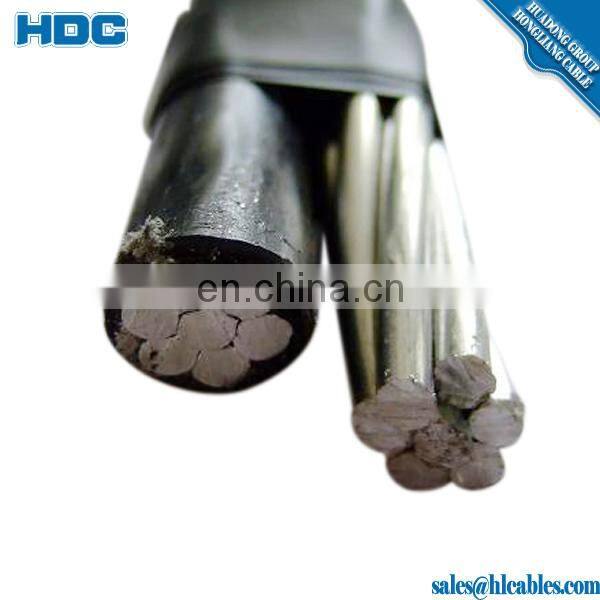

Pictures for Cable Anona:
