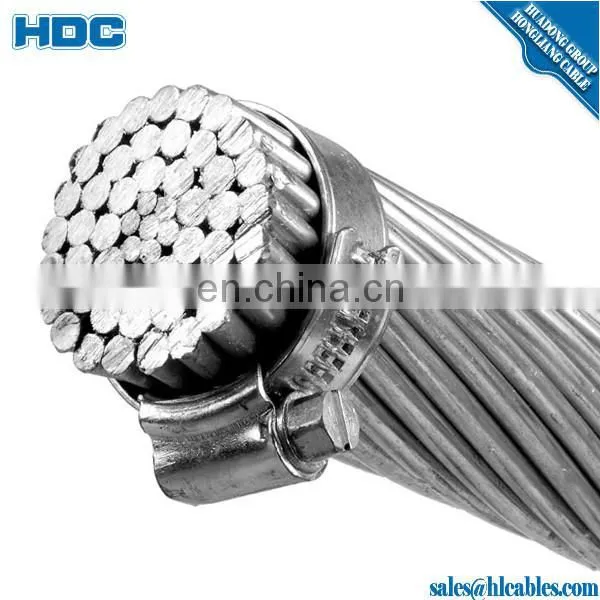

CONDUCTOR AAAC 4/0 AWG ALLIANCE
CONDUCTOR AAAC 4/0 AWG ALLIANCE
Applications:
Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high strength aluminum alloy to
achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to
corrosion than ACSR.
Specifications:
AAAC bare conductor meets or exceeds the following ASTM specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201 J81 Aluminum Alloy Conductors
Construction:
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay-stranded,
similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to
other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an
economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum
conductors, but without a steel core.
The DC resistance at 20"C of the 6201-T81 conductors and of the standard ACSR of the same diameter are approximately the same.
Conductors of the 6201 J81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of
1350-H 19 grade aluminum
CONDUCTOR AAAC 4/0 AWG ALLIANCE
1. wooden drum, Iron wooden drum or as your request
2. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
3. the long & wide & high of 40 size container:11.9*2.32*2.72.
CONDUCTOR AAAC 4/0 AWG ALLIANCE
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
Overhead Bare Aluminum Cable AAAC Standard.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
Overhead Bare Aluminum Cable AAAC Certification.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the
Transformation of Urban and Rural Power Grid Construction.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
