Product Details
| Brand Name | Huadong Cable | Place of Origin | Henan, China | |
| Model Number | 6AWG duplex wire cable, ABC CABLE. | Type | Insulated | |
| Application | Overhead | Insulation Material | PVC | |
| Conductor Material | Aluminum | Conductor Type | Stranded |
Product Description

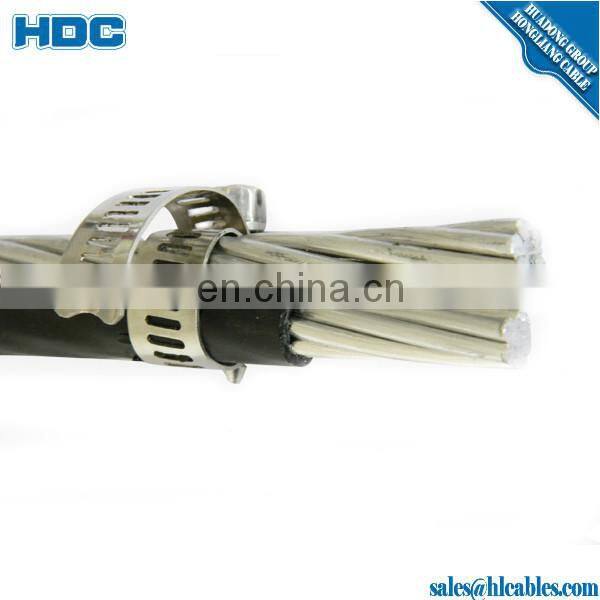

Item name:overhead service drop cable AAC conductor Pekingese 6AWG duplex wire cable
Construction:
1,0.6/1KV.
2. Conductor: Pure annealed copper or aluminum.
3. Insulation: XLPE/PE/PVC.
4. Cores: 1 C, 2C, 3C, 4C.
5. Nominal Cross-section: 10mm2 to 400mm2.
6. Standard:NFC 33-209,ICEA,GB/T.
7. Max. Operating Temperature: XLPE/PE: 90 °C , PVC : 70 °C .
8. Type: ABC Cable, JKTRYJ, JKLYJ,JKTRY, JKLY, JKLGYJ, JKLGY, JKLYJ/Q, JKLY/Q, JKLGYJ/Q, JKLGY/Q.
9.Packing: Wooden Drum or By rolls.
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight per 1000 ft. (lbs.) | Allowable Ampacities+ | ||||||
| Size (AWG) | Strand- ing | Insul. Thick. (mils) | Size (AWG) | Strand-ing | Rated Strength (lbs.) | XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Setter | 6 | 1 | 45 | 6 | 6/1 | 1190 | 72 | 72 | 85 | 70 |
| Shepherd | 6 | 7 | 45 | 6 | 6/1 | 1190 | 75 | 75 | 85 | 70 |
| Eskimo | 4 | 1 | 45 | 4 | 6/1 | 1860 | 110 | 110 | 115 | 90 |
| Terrier | 4 | 7 | 45 | 4 | 6/1 | 1860 | 115 | 115 | 115 | 90 |
| Chow | 2 | 7 | 45 | 2 | 6/1 | 2850 | 176 | 176 | 150 | 120 |
| Bull | 1/0 | 9 | 60 | 1/0 | 6/1 | 4380 | 280 | 280 | 205 | 160 |
overhead service drop cable AAC conductor Pekingese 6AWG duplex wire cable
16 mm 2 * 2C | ( AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70 | |
16 mm 2 * 4C | 3*(AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70 | |
25 mm 2 * 2C | ( AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12 | |
25 mm 2 * 4C | 3*(AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12 | |
35 mm 2 * 2C | ( AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50 | |
35 mm 2 * 4C | 3*(AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50 | |
50 mm 2 * 2C | ( AL19/1.78+PE O.D.11.7) + AL19/1.78 | |
50 mm 2 * 4C | 3*(AL19/1.78+PE O.D.11.7) + AL19/1.78 | |
70 mm 2 * 2C | ( AL19/2.12+PE O.D.13.5) + AL19/2.12 | |
70 mm 2 * 4C | 3*(AL19/2.12+PE O.D.13.5) + AL19/2.12 | |
95 mm 2 * 2C | ( AL19/2.50+PE O.D.15.8) + AL19/2.50 | |
95 mm 2 * 4C | 3*(AL19/2.50+PE O.D.15.8) + AL19/2.50 | |
overhead service drop cable AAC conductor Pekingese 6AWG duplex wire cable
Within 2 weeks after confirming the order BV Cable
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
overhead service drop cable AAC conductor Pekingese 6AWG duplex wire cable
Our Principles:
1)Quality first, customer first, safety first.
2)Better service, faster delivery.
3)Equal and mutual benefit.
4)Honesty and profession.
Our service:
1.Swift and professional response.
2.Patient and trusty.
3.Severe quality control system.
4.On-time delivery.
Our Mission:
Supply quality products with competitive price & excellent service.
overhead service drop cable AAC conductor Pekingese 6AWG duplex wire cable
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 1988 .
Total asset: USD 32 million.
Plant area: 30000 m2.
Number of staff: 380.
Engineer:20.
Laboratory Inspector: 18.
Production line: 18.
Testing machine:25.
Producing capacity each year: 320000 km .
aluminum twisted ABC Cable.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
aluminum twisted ABC Cable.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
overhead service drop cable AAC conductor Pekingese 6AWG duplex wire cable
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
