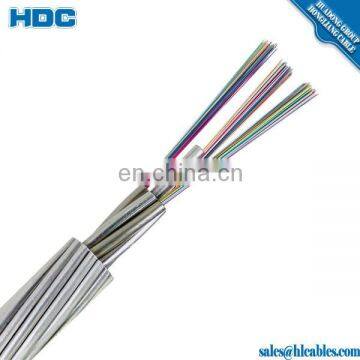

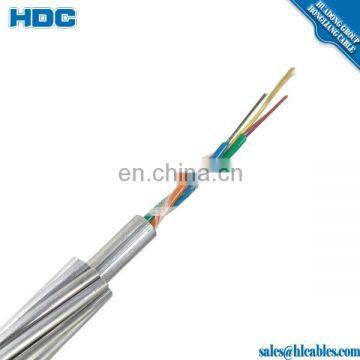

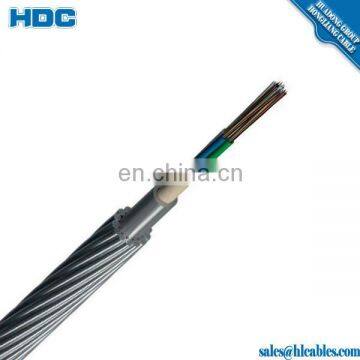

OPGW Aluminum tube fiber cable high 161/400KV 142mm2 48 FO transmission cable
AlumaCore Optical Ground Wire is preferred for its central aluminum pipe and color-coded fiber optic buffer tubes which simplify the splicing process while providing optimum fiber protection as well as long term product reliability.
Optical Ground Wire is a dual functioning cable. It is designed to replace traditional static / shield / earth wires on overhead transmission lines with the added benefit of containing optical fibers which can be used for telecommunications purposes. OPGW must be capable of withstanding the mechanical stresses applied to overhead cables by environmental factors such as wind and ice. OPGW must also be capable of handling electrical faults on the transmission line by providing a path to ground without damaging the sensitive optical fibers inside the cable
Features:
1>Preferred option for easy handling and splicing
2>Thick-walled aluminum pipe provides excellent crush resistance
3>Hermetically sealed pipe protects optical fibers
4>Outer wire strands selected to optimize mechanical and electrical properties
5>Optical sub-unit provides exceptional mechanical and thermal protection for fibers
6>Dielectric color-coded optical sub-units available in fiber counts of 6, 8, 12, 18 and 24
7>Multiple sub-units combine to achieve fiber counts up to 144
Applications:
For use by electric utilities on transmission lines in lieu of traditional shield wire
For retrofit applications where existing shield wire needs to be replaced with OPGW
For new transmission lines in lieu of traditional shield wire
Voice, video, data transmission
SCADA networks
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
