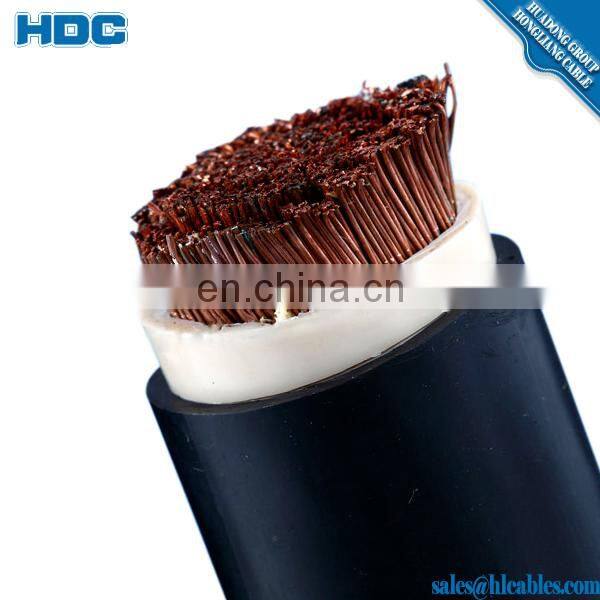

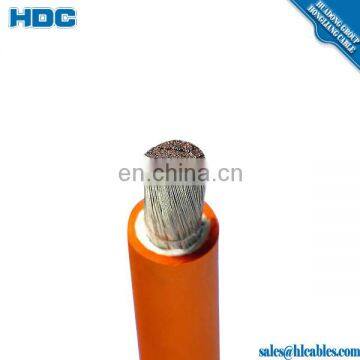

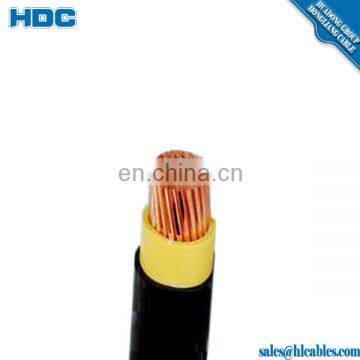

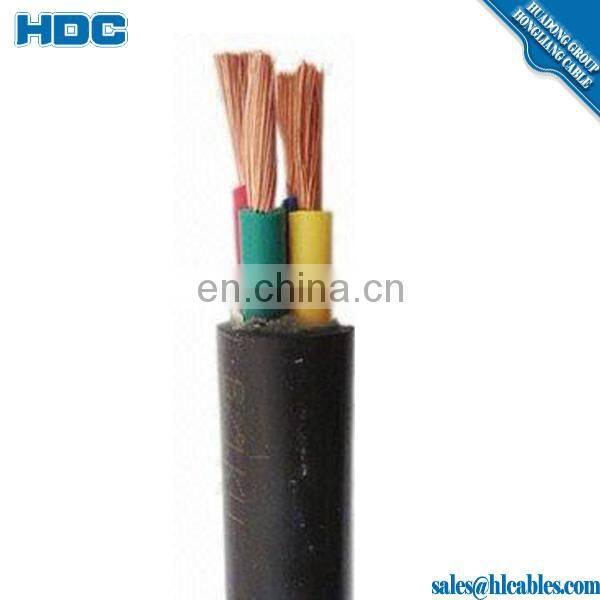

0.6/1kV Flexible Copper Conductor XLPE Insulation RVK Power Cable 16mm2
- 350000 Kilometer / Kilometers per Month
- RVK Power Cable 16mm2 can be Qingdao/Tianjin/Shanghai/Ningbo/Guangzhou
- T/T Credit Card
- IEC 60502 0.6/1KV F-FR-8 power cable Stranded copper conductor XLPE insulation PVC sheath single core or multicore 4mm2 16mm2
- 4 core 25mm 35mm 50mm 70mm 95mm underground electrical armoured cable power cable
- Single core AL /CU/PVC/PVC 120mm 150mm 240mm Armored Electric Cable
- TPYC EPR/XLPE/PVC/NR+SBR insulated rubber Marine Shipboard Power Cable SHRRF
- 0.6/1kV pvc sheathed xlpe insulated electric cable armed 16mm2 Ups to 630mm2
- 1kV aluminium copper 10mm 16mm 25mm 35mm XLPE insulated N2XH Power cable
Product Details
Brand Name: | Huadong for RVK Power Cable 16mm2 | Place of Origin: | Henan, China | Model Number: | RVK Power Cable 16mm2 |
Application: | Construction | Insulation Material: | XLPE | ||
Product Description
Item Name : 0.6/1kV Flexible Copper Conductor XLPE Insulation RVK Power Cable 16mm2 .
1.RVK Power Cable 16mm2 Information :
TTU Cables are manufactured under the following standards:
ASTM B3,. Soft copper wire.
ASTM B8, Concentric Lay Stranded copper conductors
ASTM B787, 19 Wire Combination Unilay Stranded Copper conductors for subsequent insulation.
NET-3203. Reference Standard for Electrical Wires, Cables and Flexible Cords.
ICEA S-95-658, Power Cables rated 2000 volts or less for the Distribution of Electrical Energy.
Note: We can also produce the TTU cables as your request.
b,RVK Power Cable 16mm2 Construction :
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
c, RVK Power Cable 16mm2 Nominal Section:
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
d. RVK Power Cable 16mm2 Operating Features :
1)The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2)Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable
e, RVK Power Cable 16mm2 Features :
XLPE insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.
XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of
A, B, C.
2 Standard:
IEC60502,and BS6346, VDE, AS/NZS, etc or as customer's request.
3 The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
4 Application:
1)These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.
2) For laying in ground along route with large difference of level able to bear external mechanical forces.
0.6/1kV Flexible Copper Conductor XLPE Insulation RVK Power Cable 16mm2 Product Details,
Reference Standards: | IEC60502-2, IEC 60228, IEC60332 -1/2/3, BS6622, BS7835, VDE0276, AS/NZS 1429.1, GB/T 12706, etc. |
Rated Voltage: | 6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kV |
Core Number: | Single Core or Three Core (1C or 3C) |
Available Dimensions: | 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2. |
Codes Available: | N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY, N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY |
YJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32 | |
Application: | For power networks, underground, outdoors and in cable ducting. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected during installation. |
Construction: |
|
Conductor: | Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed. |
Conductor Screen: | Semi-conducting material |
Insulation: | XLPE (Cross-Linked Polyethylene) |
Insulation Screen: | Semi-conducting material |
Metallic Screen: | Copper tape screen or copper wire screen (CTS / CWS ) |
Filler: | PP rope |
Separator: | Binding tape |
Bedding: | PVC (Polyvinyl Chloride) |
Armouring: | Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA) |
Sheath: | PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR |
Colour: | Red or Black |
Temperature Rating: | 0°C to 90°C |
Minimum Bending Radius: | Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former |
0.6/1kV Flexible Copper Conductor XLPE Insulation RVK Power Cable 16mm2 Packing and Shipping Details,
Usually by wooden drum or iron-wooden drum .
Our Service for 0.6/1kV Flexible Copper Conductor XLPE Insulation RVK Power Cable 16mm2 ,
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
0.6/1kV Flexible Copper Conductor XLPE Insulation RVK Power Cable 16mm2 certificate:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
