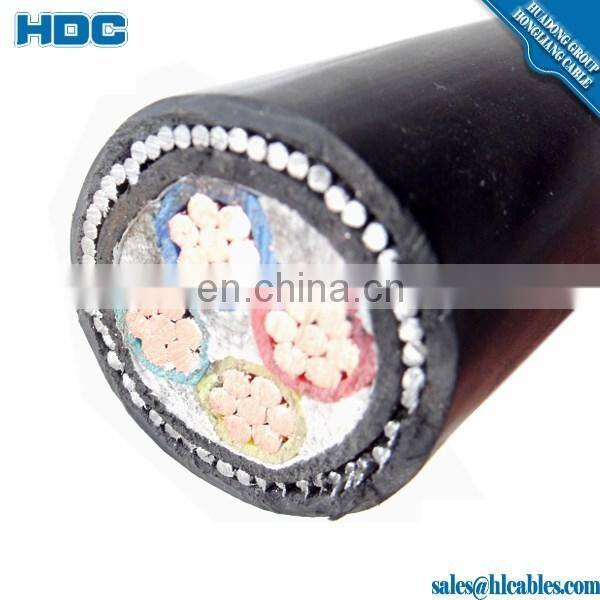

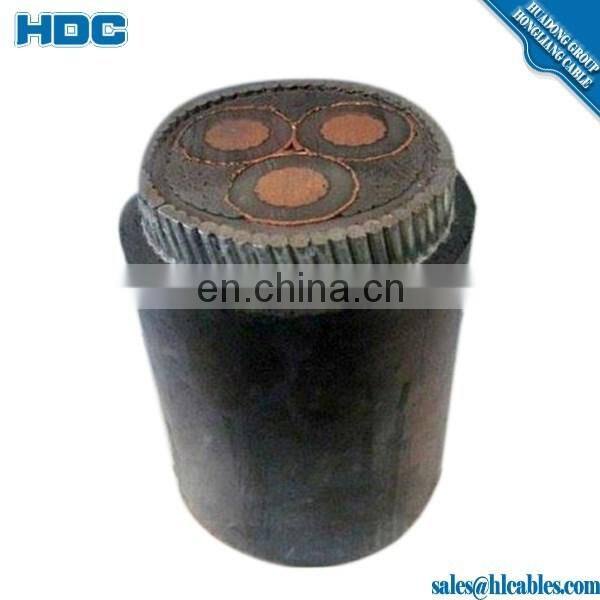

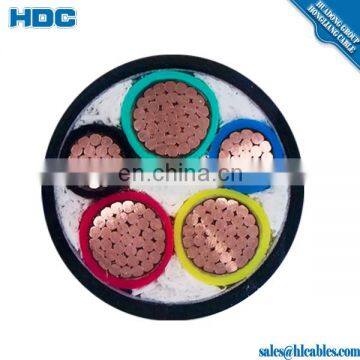

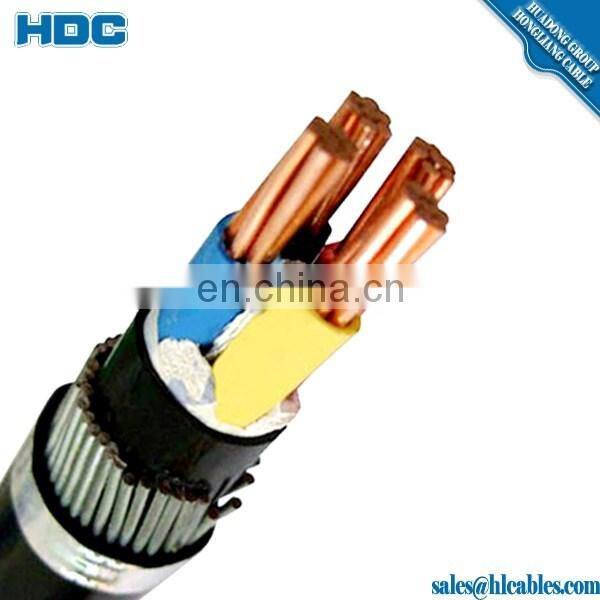

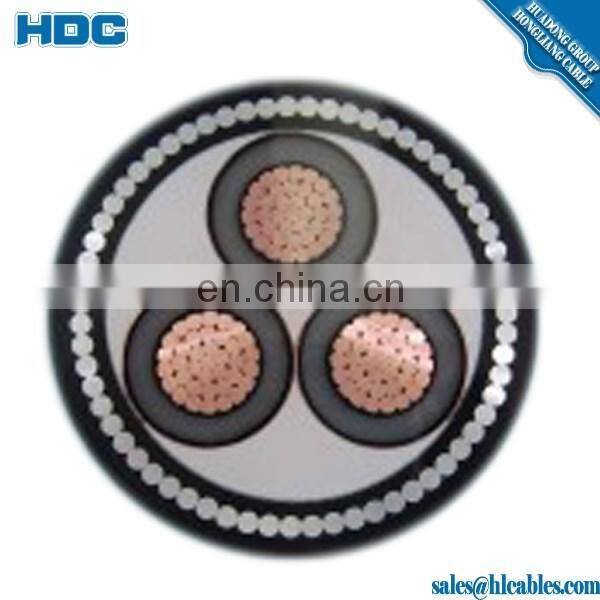

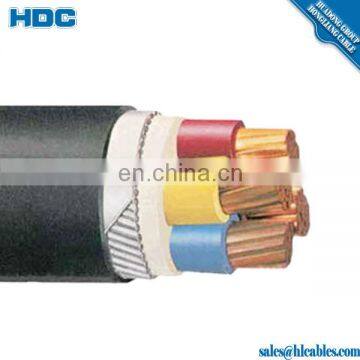

600/1000V 5x25mm cabo de pvc power cable.
Item Name: 600/1000V 5x25mm cabo de pvc power cable.
1.Construction of SWA PVC Power Cables.
Stranded and compacted cooper/aluminium conductor.
Inner semi conductor.
XLPE/pvc insulation.
Outer semi conductor.
Water blocking semi conducting tape.
Copper wire screen plus copper tape .
Polyester tape.
PVC inner sheath.
Steel tape armored.
PVC outer sheath.
2.Standard of SWA PVC Power Cables.
IEC60502, IEC60228
nstruction of the power cable for different voltage grade.
1. low voltage cable power cable.
Low voltage (0.6/1 kv).
single core or multi-core.
copper or aluminium conductor.
pvc inusulation.
steel tape armored or galvanized steel wire armored or unarmored.
pvc outer sheath.
power cable.
2. medium voltage cabel power cable.
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor.
xlpe insulation.
copper tape or copper wire screen.
galvanized steel wire armored.
pvc or pe sheath.
power cable.
3. high voltage cable power cable.
High voltage (35kv~220kv)
copper or aluminium conductor.
xlpe insulation.
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.
4.More other details of SWA PVC Power Cables.
| Type | Description | Application |
| VV | Copper conductor ,PVC insulated ,PVC sheathed power cable | Used for installing indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
| VLV | Aluminium conductor ,PVC insulated ,PVC sheathed power cable | |
| VY | Copper conductor, PVC insulated, PE sheathed power cable | |
| VLY | Aluminium conductor ,PVC insulated ,PE sheathed power cable | |
| VV22 | Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable | Used for Installing indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
| VLV22 | Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable | |
| VV23 | Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable | |
| VLV23 | Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable | |

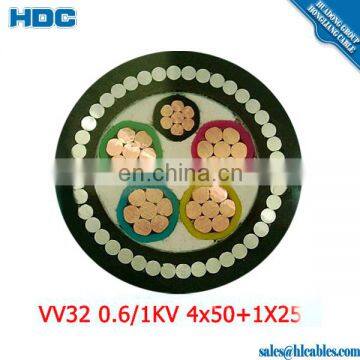

| VV32 | Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable | Used for intalling indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
| VLV32 | Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable | |
| VV33 | Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable | |
| VLV33 | Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable |

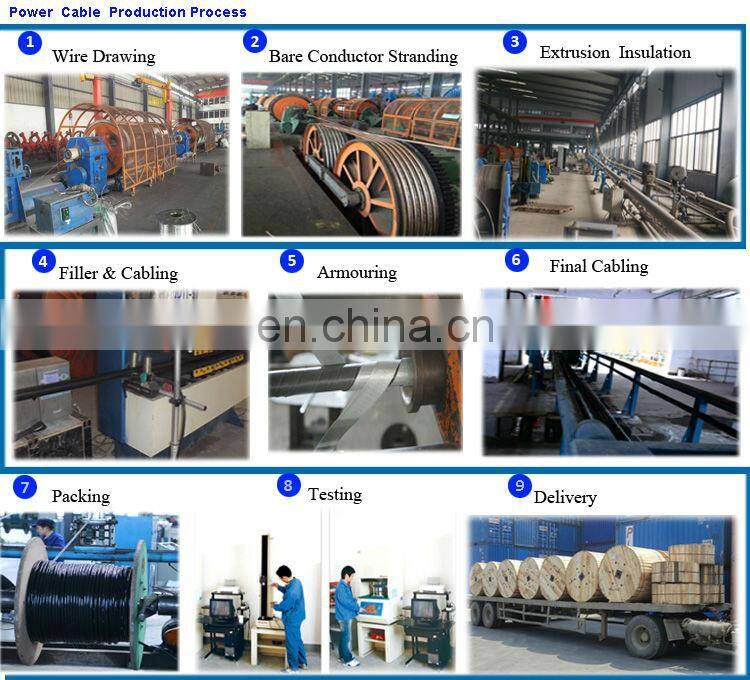

5. Production process of SWA PVC Power Cables.
6. Testing of SWA PVC Power Cables
research & development,and domestic & international trade.Our main products consist of power cables, bare conductors, aerial bundled cables,
control cables, welding cables, rubber cables, special cables and electrical wires. Our products are produced according to the standards of
GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
Packaging & Shipping
600/1000V 5x25mm cabo de pvc power cable.
packed in wooden drums or steel-wooden drums or as your request.
600/1000V 5x25mm cabo de pvc power cable
The Following items for your reference :
1. Payment Terms : T/T 30% Deposit,then the balance before delivery or L/C at sight .
2.Delivery Time : 15-35Days once the order was confirmed .
3.Production Standard depend on customer requested, otherwise according to IEC, NFC standard .
4.Before production, the technical data will be clarified with customer in case of any error.
5.Trading Terms :FOB Qingdao, Shanghai, Tianjin or CIF ,CNF are available.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,
installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,
If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton,We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from
our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and
take charge in all expenses of reinstallation.
600/1000V 5x25mm cabo de pvc power cable.
600/1000V 5x25mm cabo de pvc power cable.
