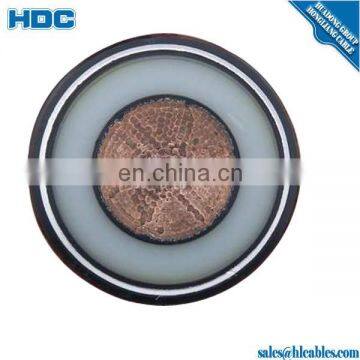

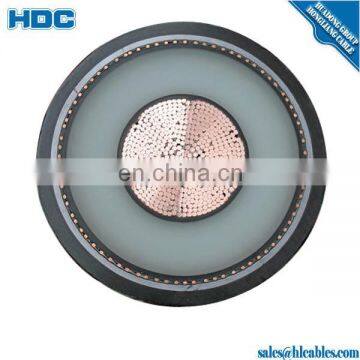

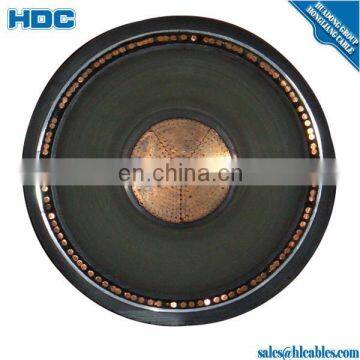

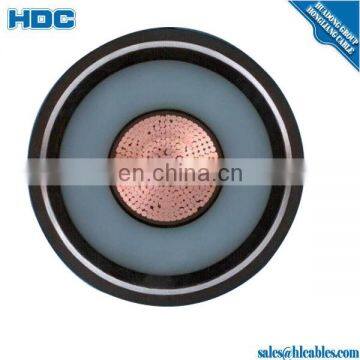

Philippines Cable Tinned CU/XLPE/CWS/PVC/AWA/FR-PVC/ 87/154kV/1*1000mm2

Philippines Cable Tinned CU/XLPE/CWS/PVC/AWA/FR-PVC/ 87/154kV/1*1000mm2

Cable Construction

Single of multi-wire conductors of plain copper wires, PVC core insulation, cores twice concentrically according to VDE 0293, common core sheathing, outer sheath of PVC standard colour black, flame retardant.

Technical Data

• Minimum bending radius for single core : 15 x outer diameter
• Minimum bending radius for multi core : 12 x outer diameter

8.7/15kv power cable yjv

 :

According to VDE 0295 / IEC 60228

• re = round conductor, single wire
• rm = round conductor, multi wire
• sm = sectorial conductor
