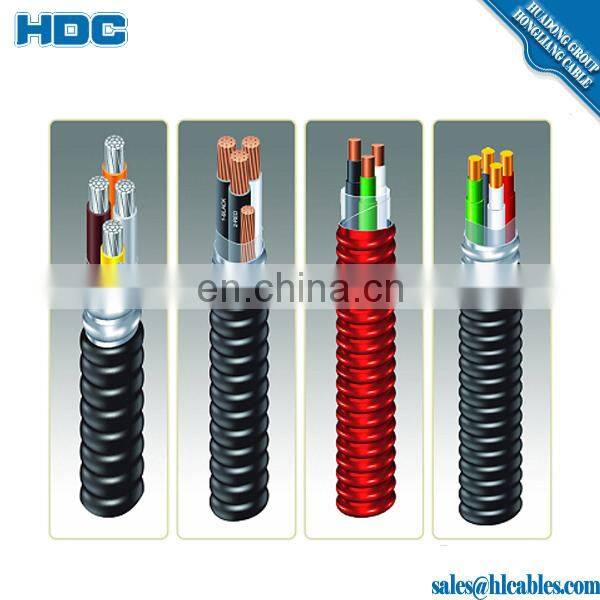

Armored Power, 8 kV 133%, Shielded, 3/C VFD

Armored Power, 8 kV 133%, Shielded, 3/C VFD

Product Construction:
Conductor:
• Bare annealed copper per ASTM B3
• Compact stranding per ASTM B496
Extruded Strand Shield (ESS):
• Extruded thermoset semi-conductor
stress control layer over the conductor
Insulation:
• 175 mils Ethylene Propylene Rubber
(EPR) insulation per ICEA S-93-639
and UL 1072
Extruded Insulation Shield (EIS):
• Thermoset semi-conducting polymeric
layer, free stripping from the insulation
Shield:
• 5 mil annealed bare copper tape with
25% overlap
Phase Identification:
• Color-coded polymeric identification
tape laid under the shield - black, red
and blue
Grounding Conductor:
• Class B stranded bare annealed
copper grounding conductor
Cable Assembly:
• Insulated and grounding conductors
are cabled together with non-
hygroscopic fillers when required
• Binder tape is applied over the cabled
core
CCW Armor:
• Impervious, continuously welded and
corrugated aluminum alloy sheath per
• CCW armor conductivity meets the
grounding requirements of the NEC

Jacket:
• Flame-retardant, moisture- and
sunlight-resistant Polyvinyl Chloride
(PVC), red
• Low temperature performance meets
ASTM D746 brittleness temperature at
or below -40°C
Applications:
• CCW armored medium-voltage
power cables offer an economical,
rugged and reliable alternative to
labor-intensive cable in conduit wiring
methods
• For use on feeders and branch circuits
in industrial power distribution systems
per NEC Articles 328 and 330
• For use in Class I, II and III, Divisions
1 and 2; and Class I, Zones 1 and 2
hazardous locations per NEC Articles
501, 502, 503 and 505
• Installed on metal racks, troughs, in
raceways, in cable trays or secured
to supports spaced not more than six
feet apart
• Installed in both exposed and
concealed work, wet or dry locations,
directly buried or embedded in
concrete
• Recognized for use on fixed or
floating offshore petroleum facilities
as recommended by the American
Petroleum Institute
Features:
• Triple Extrusion: The strand shield,
EPR insulation and insulation shield
are all extruded in one operation

1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.

2. High-effiency oversale team makes your business much easier.

3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!

1.what is our payment term ?

1.Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
