0.6/1kV SWA Cable pvc/xlpe insulation armoured flame retardant pvc sheath 4C 16 25 35mm2 IEC 60502-1
CU/PVC/SWA/PVC,IEC 60502 Standard PVC Insulated PVC bedding Galvanized steel wire armored PVC Sheathed Cable, 0.6/1kV

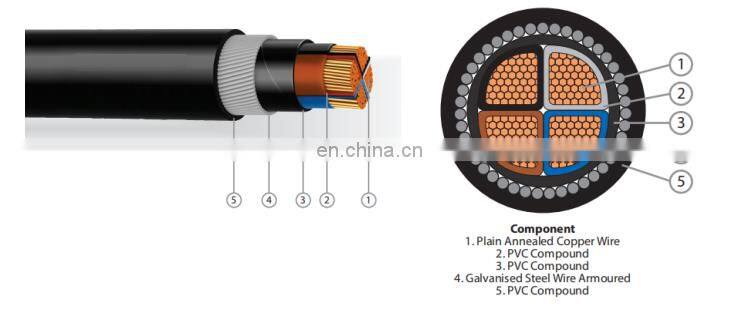

CONSTRUCTION
Conductor: Plain Annealed Copper, Class 2 Stranded Circular, Compacted or Sectored
Insulation: Polyvinyl Chloride (PVC) Compound Type A
Insulation Colour: 2 Cores: Brown, Blue or Red, Black
3 Cores: Brown, Black, Grey or Red, Yellow, Blue
4 Cores: Brown, Black, Grey, Blue or Red, Yellow, Blue, Black
5 Cores: Brown, Black, Grey, Blue, Green/Yellow or Red, Yellow, Blue, Black, Green/Yellow
or White with Black numbering or Others
Assembly: Cores cabled together with filler and covered with Polyester (PET) Tape
Bedding: Polyvinyl Chloride (PVC) Compound TM 1 Black
Armour: Galvanized steel wire SWA
Outer Sheath: Polyvinyl Chloride (PVC) Compound TM 1 Black
ELECTRICAL CHARACTERISTICS
Operating Voltage, Uo/U: 0.6/1KV
Operating Temperature: -15ºC to 70ºC
Final Short Circuit Temperature: 160ºC for cable ≤ 300mm2 140ºC for cable >300mm2
Test Voltage: 3.5kV for 5 minutes
REFERENCE STANDARDS
Design Specification: IEC60502-1 Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC60332-1, BS EN60332-1
INSTALLATION REFERENCE
Min. Bending Radius (mm): 8 x cable overall diameter
Max. Pulling Tension (N/mm2): 70
0.6/1kV SWA Cable pvc/xlpe insulation armoured flame retardant pvc sheath 4C 16 25 35mm2 IEC 60502-1
1. wooden drum, Iron wooden drum or as your request
2. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
3. the long & wide & high of 40 size container:11.9*2.32*2.72.
0.6/1kV SWA Cable pvc/xlpe insulation armoured flame retardant pvc sheath 4C 16 25 35mm2 IEC 60502-1
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Contacts: Chris Wang
Phone&Whatsapp&Viber: +86-15893954220
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
0.6/1kV SWA Cable pvc/xlpe insulation armoured flame retardant pvc sheath 4C 16 25 35mm2 IEC 60502-1 Standard.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
0.6/1kV SWA Cable pvc/xlpe insulation armoured flame retardant pvc sheath 4C 16 25 35mm2 IEC 60502-1 Certification.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
