Home > Products > Power Cable > Factory Price Electric Push Pull Cable Steering Armoured 0.6/1kV Power Cable
Factory Price Electric Push Pull Cable Steering Armoured 0.6/1kV Power Cable
- Qingdao Shanghai Tianjin
- T/T Credit Card
You May Like
-
Manufactures Direct Supply Low Voltage Armoured Power Cable With Pvc Insulation
-
Low Voltage Electric Armoured Cables Suppliers
-
PVC Insulated Low Voltage Copper Conductor Power Cable
-
0.6/1kV Standard Single or Multi Core Industry Power Cable
-
Mongolia Power Cable XLPE Insulated PVC Sheath 300mm Single Core Aluminum Cable
-
High Quality Electric Power 5 Core Copper Conductor AWG YJV 0.6 to 1kv XLPE Insulated Low Voltage Power Cable
Product Details
| Brand Name | huadong cable, Huadong cable | Place of Origin | Henan, China | |
| Model Number | TTU Cable, armoured 0.6/1kV power cable | Type | Low Voltage | |
| Application | Underground | Insulation Material | XLPE | |
| Jacket | PVC |
Product Description

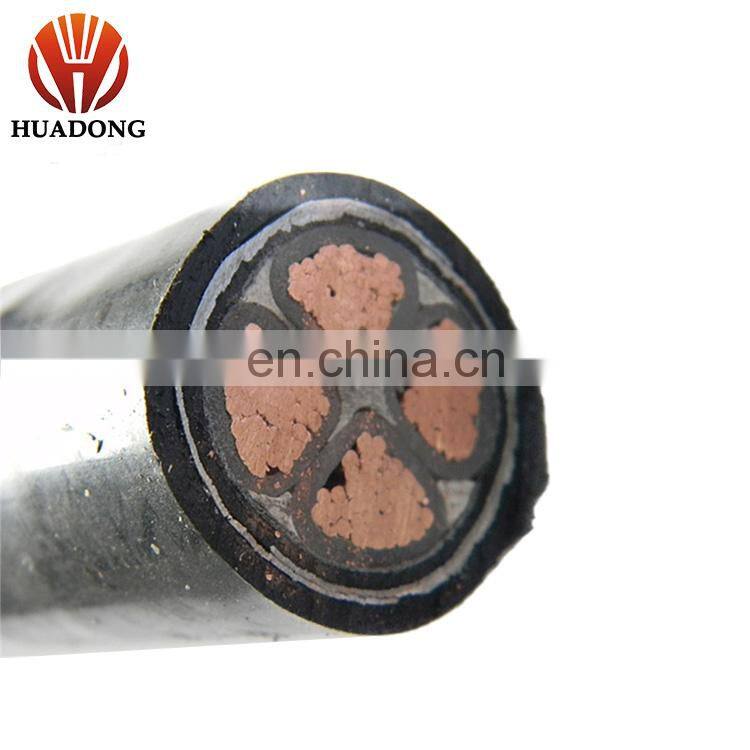

factory price electric push pull cable steering armoured  0.6/1kV power cable
Detail Description or Construction:
Conductor: Compressed or Compacted copper conductor class B
Insulation: Polyethylene (PE) 75°C
Jacket: Extruded black sunlight resistant, selfextinguishing, oils resistant PVC jacket with excellent mechanical properties Packaging: Non-returnable wooden drums
Options:
• CT USE applications
• Lineal low density Polyethylene jacket
• (LLDPE) jacket

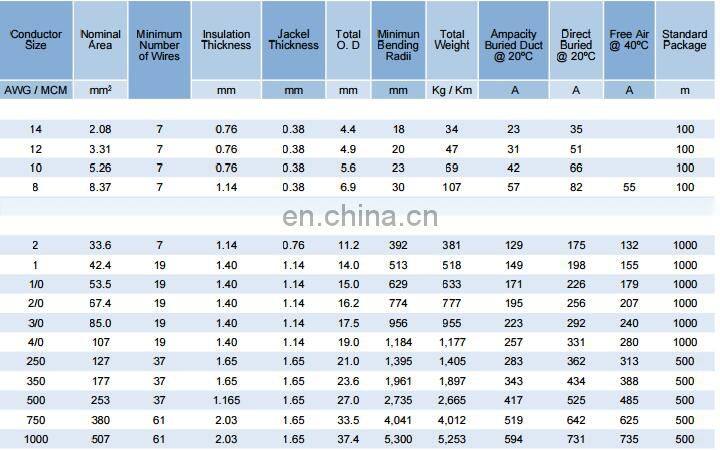

Specification:
1)rated voltage: 0.6/1KV
2) Standard: IEC,BS,ASTM, VDE ,COVENIN 541
3)Cu or Al conductor, XLPE insulated electical cable
4)TTU 75 meets or exceeds the requirements of ICEA S-95-658 and COVENIN 541.
Applications
(1) Rated voltage is 0.6/1 KV
(2) Maximum rated temperature of cable conductor is 90°C,Normal 75℃.
(3) Maximum conductor temperature is lower than 250°C ,normal 105℃,when cable is shorted for less than 5 seconds.
(4) Ambient temperature is not lower than 0°C and its minimum bending radius is as follows when cable is installed
Primary power and distribution circuits in industrial, commercial and power circuit generating plants. Single conductors cables, 1/0 AWG and larger, can be marked for CT Use to be installed in ladder cable tray, according NEC Article 318.
Installation:
TTU 75 cables may be installed in wet or dry locations at maximum operating temperature of 75°C for normal operation; 90°C for emergency and 150°C for short circuit conditions. Cables may be installed indoor and outdoor, exposed to sunlight, in raceway, conduit, duct or aerially supported by a messenger and directly buried according NEC 250-51.
0.6/1kV low voltage copper conductor XLPE insulate 250MCM TTU Cable.
1.Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm or as your request .
