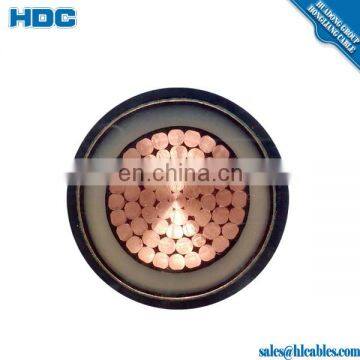

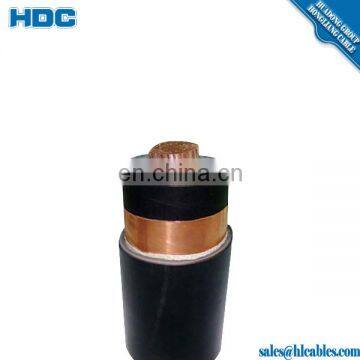

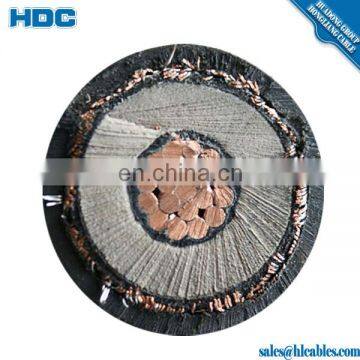

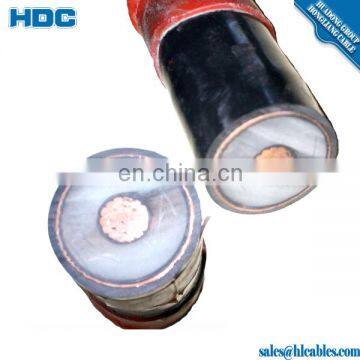

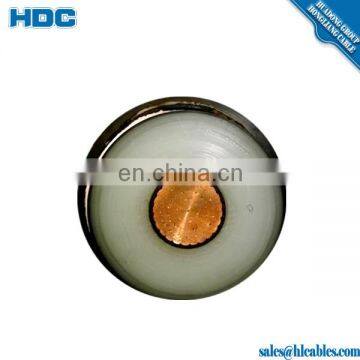

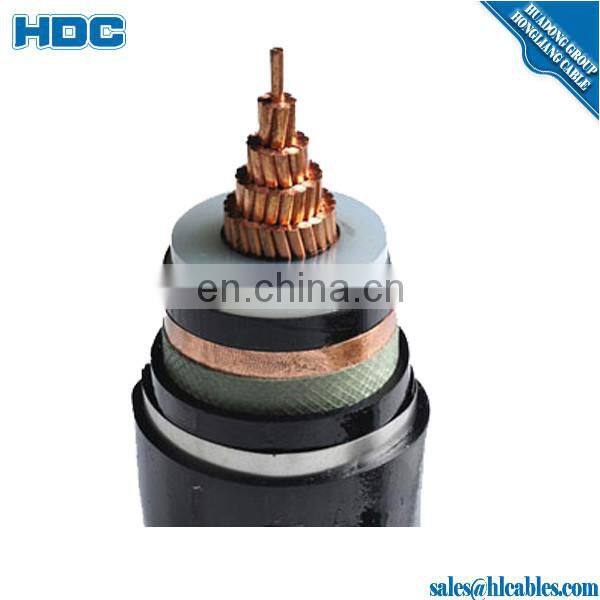

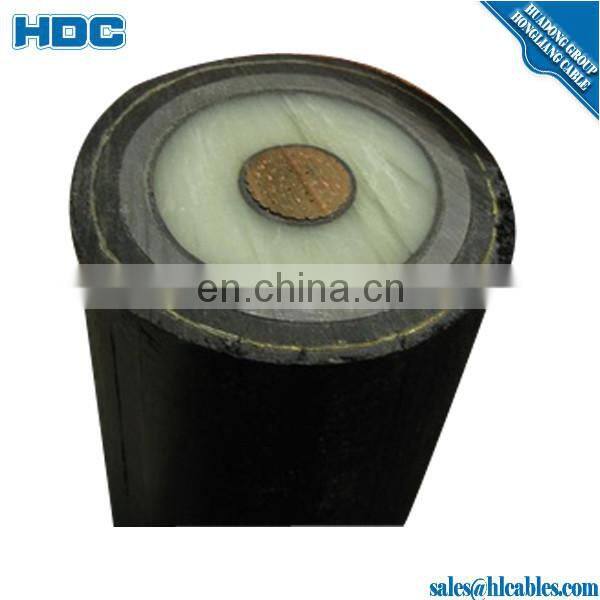

Item Name: 11 KV, 1 X 300mm2 XLPE Copper Cable YJV Cable Price .
The cable can be used for laying indoor, tunnel, underground , canal, water and seabed , etc . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , corrugated alu sheath , lead sheath , etc.
Standards: IEC,ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc. ,
Conductor:Copper / Aluminum
Conductor screen: Semi-conducting XLPE
Insulation:xlpe
Insulation Screen: Semi-conducting XLPE
Metallic Screen: Individual and overall copper tape screen
Bedding: PVC
11 KV, 1 X 300mm2 XLPE Copper Cable YJV Cable Price Standard .
Single Core: Aluminum Wire Armored (AWA)
Multicourse: Steel Wire Armored (SWA) or Steel tape armoured (STA)
Sheath: PVC,PE,LDPE,LLDPE,LSZH
Color:Red ,black or as your request
Conductor Cross-section area is up to 1000mm2
For other detailed information , pls contact us directly .
11 KV, 1 X 300mm2 XLPE Copper Cable YJV Cable Price types .
Reference Standards: |
IEC60502-2, IEC 60228, IEC60332 -1/2/3, BS6622, BS7835, VDE0276, AS/NZS 1429.1, GB/T 12706, etc. |
Rated Voltage: |
6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kV |
Core Number: |
Single Core or Three Core (1C or 3C) |
Available Dimensions: |
25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2. |
Codes Available: |
N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY, N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY |
YJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32 | |
Application: |
For power networks, underground, outdoors and in cable ducting. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected during installation. |
Construction: |
|
Conductor: |
Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed. |
Conductor Screen: |
Semi-conducting material |
Insulation: |
XLPE (Cross-Linked Polyethylene) |
Insulation Screen: |
Semi-conducting material |
Metallic Screen: |
Copper tape screen or copper wire screen (CTS / CWS ) |
Filler: |
PP rope |
Separator: |
Binding tape |
Bedding: |
PVC (Polyvinyl Chloride) |
Armouring: |
Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA) |
Sheath: |
PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR |
Colour: |
Red or Black |
Temperature Rating: |
0°C to 90°C |
Minimum Bending Radius: |
Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former |
11 KV, 1 X 300mm2 XLPE Copper Cable YJV Cable Price Packing and Shiping:
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement .
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm. or as your request.
company information for 11 KV, 1 X 300mm2 XLPE Copper Cable YJV Cable Price .
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
our service for 11 KV, 1 X 300mm2 XLPE Copper Cable YJV Cable Price .
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
11 KV, 1 X 300mm2 XLPE Copper Cable YJV Cable Price standard :
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.Meanwhile we can produce based on customers' requirements and specifications.
11 KV, 1 X 300mm2 XLPE Copper Cable YJV Cable Price Certification:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National ElectricalProduct Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformationof Urban and Rural Power Grid Construction.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
