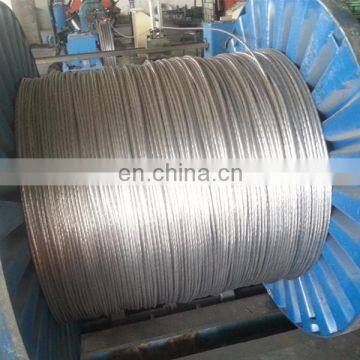

ASTM 477.0 MCM ACSRPelican/Flicker/Hawk/Hen
PRODUCT APPLICATION
Bare aluminum conductors, especially in the form of Aluminum Conductors Steel Reinforced(ACSR), have been widely used for Overhead Transmission Lines as the most cost-effective and dependable product.
As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC grade Aluminum Wires over a high strength coated steel core. The core may be single wire or stranded, depending on the size. Because of the numerous stranding combinations of aluminum and steel wires that may be used, it is possible to vary the portions of aluminum and steel so as to obtain the most suitable relation between current carrying capacity and mechanical strength for each application.
ACSR has long been widely used as overhead high tension transmission lines and has an established reputation for economy and dependability. The illustration below shows typical standard sizes and stranding patterns.
CONSTRUCTION
ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H16
on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.
ACSR is according to electrical and mechanical strength requirements of transmission or distribution cable, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Delivery
Our logistic
Strong factory
JINSHUI CABLE GROUP in charge of 35 domestic sales agents and one trade company - Zhengzhou Jin Hang High-Tech Co., Ltd. Our trade company is mainly responsible for overseas markets. There are 638 staff members in our factory, including 18 experienced engineers, 52 lab assistants and 568 workers. Our asset reaches USD10,507,000. We have various advanced production lines and equipment, including 180 sets for production use and 40 sets for testing and measurement use.
Canton fair
attend China Import and Export Fair(another name Canton Fair) in Guangzhou city of China
Favorable Comment
We insisted on the tenet of "pay adequate attention to every customer's request". We insist on our principle of "Good quality results trust and honesty makes success". We sincerely welcome you to visit us.
Q: Are you trading company or manufacturer ?
A: We are factory.Jinshui Cable Group, founded in 1983 and formerly known as Zhengzhou 2nd Cable Plant, is the largest cables and wire and electrical products R&D and production base, sales and export base, and CNC logistics distribution base in central China, as well as Top-10 of China in comprehensive cables and wire strength.
Q: what is your main products?
A: Our cable ranges included :Bare conductor ,Overhead insulated cable ,PVC/XLPE insulated power cable ,Armored cable ,URD cable ,fire resistant cable ,LSHF cable ,Building wire ,Thhn Nylon jacketed wire ,control cable ,concentric cable ,welding cable ,rubber sheathed cable etc .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge for you to check the cable quality but will not pay the cost of freight.
Q: What is your terms of payment ?
A:Normally 30% paid as prepayment, balance paid before delivery. Or 100% L/C at sight.
