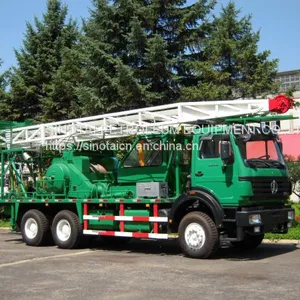

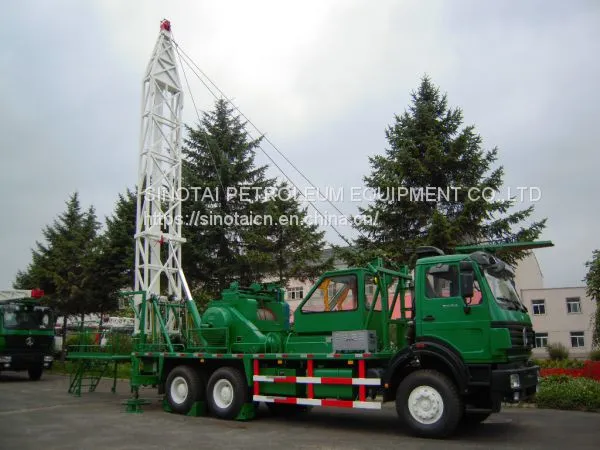

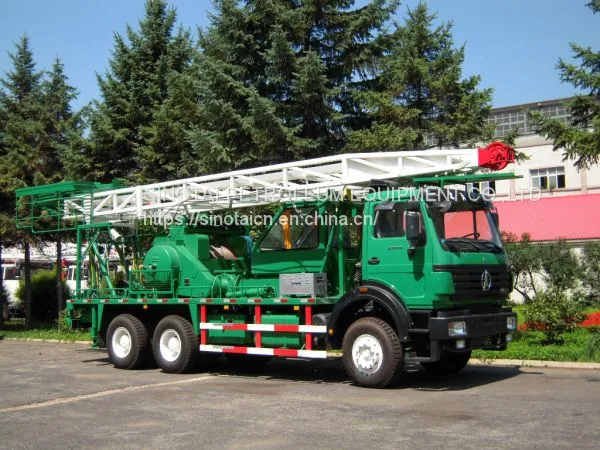

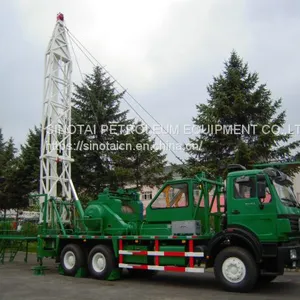

Back aligned bailing oil truck
Back aligned bailing oil truck is commonly known as "back bailing", which is mainly used for bailing oil from the wells that is on the edge of the oil field, low yield or inconvenient to lay the oil pipe. No need of ground guy line, the derrick can stand up conveniently and quickly, the drum wire rope is arranged neatly, the gear shift and rope control are all operated in the control room, can realize centralized control.
The rise and fall of the derrick are fully hydraulic controlled

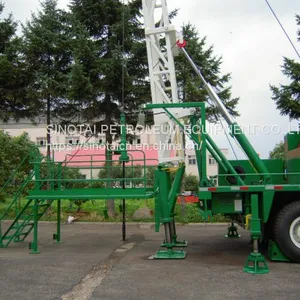

The tail of the machine can choose install foldable platform, convenient for the operator of wellhead.
The drum wire rope adopts the manual pneumatic control compelling roping system
The wellhead device is controlled by manual hydraulic pump, which can be used for oil cleaning and environmental protection.
Item |
Back aligned bailing oil truck |
||
Drum load |
m |
2500 |
|
Steel wire line OD. |
mm |
16 |
|
Maximum hoisting load |
KN |
45 |
|
Steel wire line hoisting speed |
m/s |
≦4(when drum rope have biggest OD.) ≦1.5(when drum rope have smallest OD. |
|
Derrick maximum length |
m |
12 |
|
Derrick maximum lifting angle |
° |
4.5 |
|
Carrier engine power |
KW/r/min |
213/2200 |
221/1900 |
Driven type |
6×4 |
||
Max. pump depth |
m |
2450 |
|
Barrel oil pump submergence |
m |
≦200（5 1/2’’casing） |
|
Hydraulic system working pressure |
MPa |
≦12 |
|
Rope way |
Manual |
||
Carrier type |
Styer |
||
