Home > Products > oilfield service equipment > Front aligned bailing oil truck for oilfield
Front aligned bailing oil truck for oilfield
- 260 Set / Sets per Month
- Tianjin Seaport
- T/T L/C D/P D/A
- 2 days
You May Like
-
Front aligned oil production truck for oilfield
-
Front aligned oil recovery truck for oilfield
-
Convenient front aligned oil recovery truck for oilfield
-
High Quality Front aligned bailing oil truck for oilfield
-
High Quality back aligned bailing oil truck for oilfield
-
Back aligned oil production truck for oilfield
Product Details
| Brand Name | TS-SINOTAI | Place of Origin | China | |
| Certification | API | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12 Months | Weight | 31000kg | |
| Dimension(L*W*H) | 11400*2500*3800mm | Condition | New |
Product Description

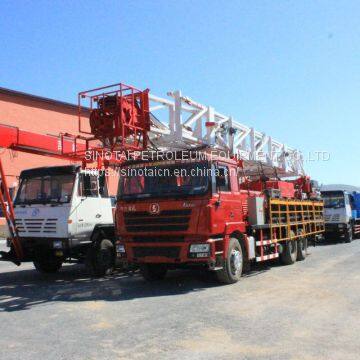

Front Aligned Bailing Oil Truck
Front aligned bailing oil truck is commonly known as "front bailing", which is mainly used for bailing oil from the wells that is on the edge of the oil field, low yield or inconvenient to lay the oil pipe. No need of ground guy line, the derrick can stand up conveniently and quickly, the drum wire rope is arranged neatly, the drum line is controlled in the control room, other controls are all in the chassis driving room.
Derrick locates on the top of truck’s cab when working. Crown block and pump are all in front of the truck, It is convenient to aim the wellhead. The operator operates in the car driving room.
Derrick with double section structure form, can scale backward and forward, up and down. Guide pulley is mounted under the derrick telescopic boom, its telescopic landing movements is controlled by the hydraulic cylinder, can meet the requirements of aiming wellhead, installing barrel oil pump and weight balancing.
Item | Front aligned bailing oil truck | |
Drum load | m | 2500 |
Steel wire line OD. | mm | 16 |
Maximum hoisting load | KN | 30 |
Steel wire line hoisting speed | m/s | ≦4(when drum rope have biggest OD.) ≦1.5(when drum rope have smallest OD.) |
Derrick maximum length | m | 8.3 |
Derrick maximum lifting angle | ° | 45 |
Carrier engine power | KW/r/min | 213/2200 |
Driven type | 6×4 | |
Max. pump depth | m | 2450 |
Barrel oil pump submergence | m | ≦200（5 1/2’’casing） |
Hydraulic system working pressure | MPa | ≦12 |
Rope way | Manual | |
Carrier type | Styer | |
