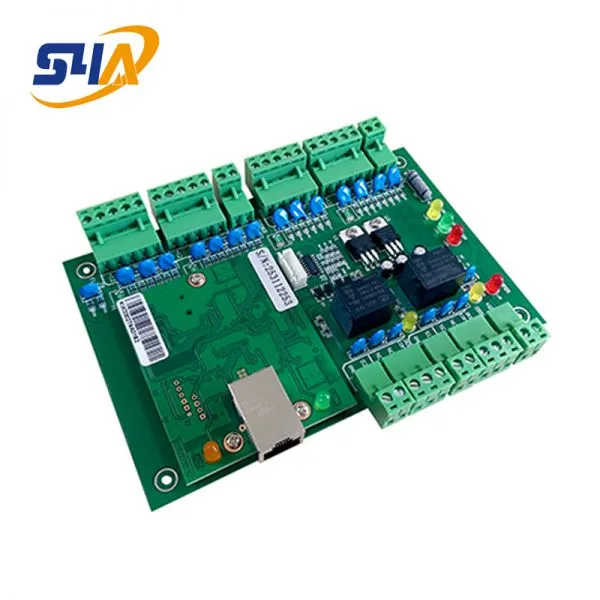

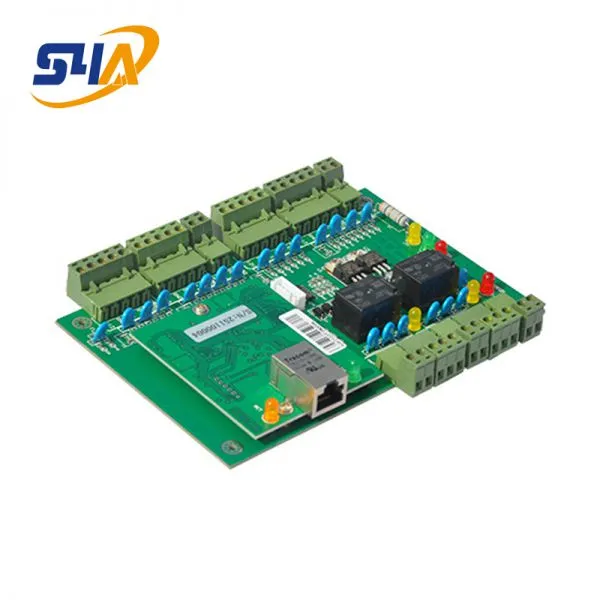

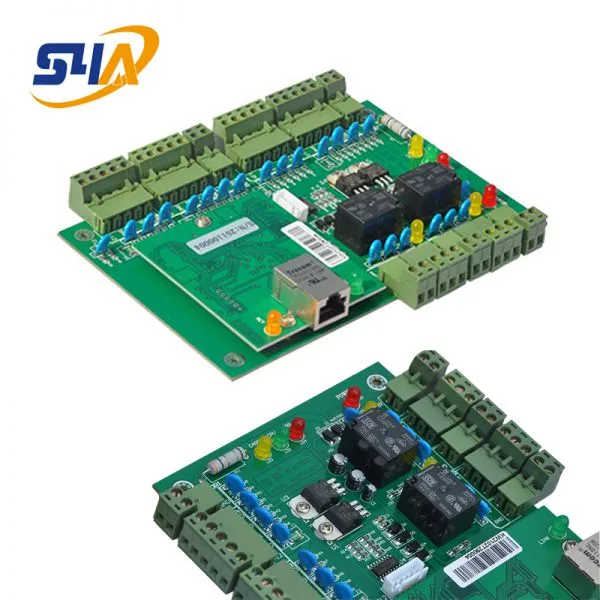

Micro tillage ACB-w1 access control panel S4A brand networking double door
Model No.: ACB-W2
/four-doors-tcp-ip-network-access-control-panel-wiegand-access-control_p66.html
What is Access Control?
Access control is focused on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control, and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.
Parameter |
One-door TCP/IP Network Door Controller |
Two-door TCP/IP Network Door Controller |
Four-door TCP/IP Network Door Controller |
Model # |
ACB-W1 |
ACB-W2 |
ACB-W4 |
Communication |
TCP/IP 10M/100M adaptive |
TCP/IP 10M/100M adaptive |
TCP/IP 10M/100M adaptive |
Description |
Control 1 door, get in and out the door by swiping card or get in by swiping the card and get out the door by button |
Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button |
Control 4 doors, get in the door by swiping the card and get out the door by button |
Size of PCB board |
160mm *106mm |
160mm *106mm |
218mm *106mm |
Size of Case |
273mm*228mm*65mm |
||
Power Supply |
12VDC 4-7A |
||
Power Consumption of Circuit Board |
Less than 100mA |
||
Input Format of Reader |
Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) |
||
Quantity of Readers |
2pcs |
4pcs |
4 pcs |
Door Controlled |
1door |
2 Doors |
4 Doors |
Door opening time extending setting |
1-600 seconds(adjustable) |
||
Max q ' ty of controller |
No limit |
||
Here are all available powerful functions for our ACB-W1,ACB-W2, and ACB-W4
