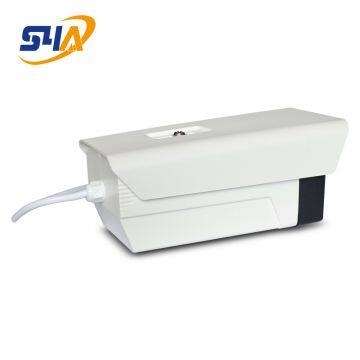

Face Recognition Camera CCTV System Access Control Night Infrared Vision 2MP Starlight Facial Recognition IP Camera
Model No.: CCTV-200

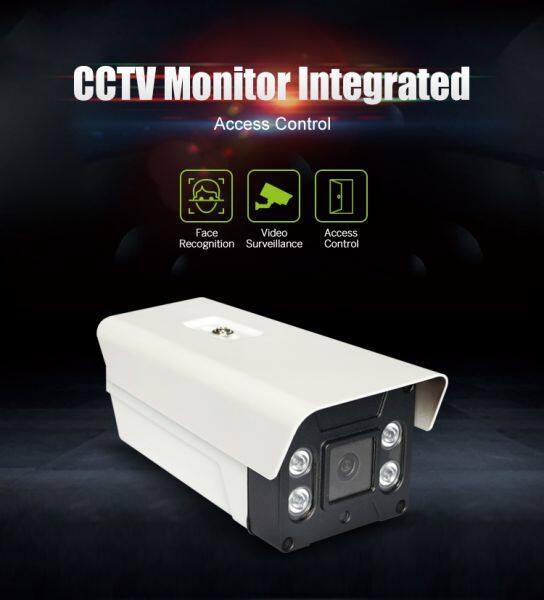

CCTV Integrated Camera with Access control function, support Web-server to authorize new users and monitor it at real-time
Product | Model No, | CCTV-200 |
Motherboard model | RS-H636Q-A0-A 3516CV500 (Support 16G/32G/64G EMMC) | |
System | Main processor | Hass 3516CV500 |
Imaging device | 1/2.8 S0I IMX327 | |
Operating system | Embedded LINUX Operating System | |
Face | Snapshot mode | Auto mode, Fast mode, Optimal mode, Custom mode |
Recognition ability | 10~20 frames detection frame rate, up to 32 people per frame; maximum support of 150 people per second | |
Recognize face size | Face pixels 40x40~300x300 | |
Attitude | Attitude pitch within 45°, right and left can be captured within 90°, oblique face angle within 45° | |
Occlude | Ordinary glasses, short stay in the sea, masks have no effect on recognition | |
Expression | Under normal circumstances, the expression does not affect recognition | |
Face capture rate | ≥98% (Meet the above conditions) | |
Responding speed | ≤200ms | |
Face to repeat | Support | |
Face quality filtering | Support | |
Face dynamic exposure adjustment | Support | |
Recognition area | Full image recognition, support area optional setting, the minimum and maximum pixels for detecting faces can be set, and the detection area can be set | |
Image Format | Support face matting, half body matting, whole body matting | |
Mobile push message | Multiple alarm graphic information | |
Upload method | FTP, SDK call upload | |
Video | Video encoding standard | H.264/H.265/H.265+ |
System format | PAL 50HZ/NTSC 60HZ | |
Effective resolution | 1920x1080/1280x720 | |
Pixels | 2.0 M pixels | |
Video frame rate | 25fps | |
Video stream | 128kbps-12288kbps (Default variable bit rate) | |
Signal to noise ratio | Signal to noise ratio ≥50dB (Auto gain off) | |
Minimum illumination | Day mode 1Lux, Night vision mode 0.01Lux | |
Day and night mode | Auto (Passive mode)/Day/Night/Auto (Active mode)/Timing | |
AWB/BLC/AGC/WDR | AUTO | |
AES | AUTO/ 1/50(1/60)-1/100,000sec | |
Video output | Easytool/EasyVMS Client/Mobile APP Client | |
Motion detection | Support | |
Snapshot function | Support | |
Audio | Coding standards | G.711U |
Audio input | Passive microphone MIC/active pickup | |
Audio output | External 8Ω / MAX 1.5W speaker | |
Video Management | Video mode | Manual recording, alarm recording, timing recording |
Video save | EMMC (Full Function Board)/PC/NVR | |
Alarm | Alarm input/output | Support |
Alarm trigger | Motion detection alarm, speaker alarm, alarm recording, snapshot, email, external sound and light alarm | |
Network | Network protocol | HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.) |
Other | TF card capacity | Optional support up to 128G, Micro SD (SDHC/SDXC) card local storage |
Operating voltage | Standard DC12V (Wide voltage 10~16V) | |
Working current | 160mA ±10mA | |
Working environment | -10℃~50℃ | |
Dimension | Motherboard model | 38x38mm |
ICR/LENS pitch | 20mm | |

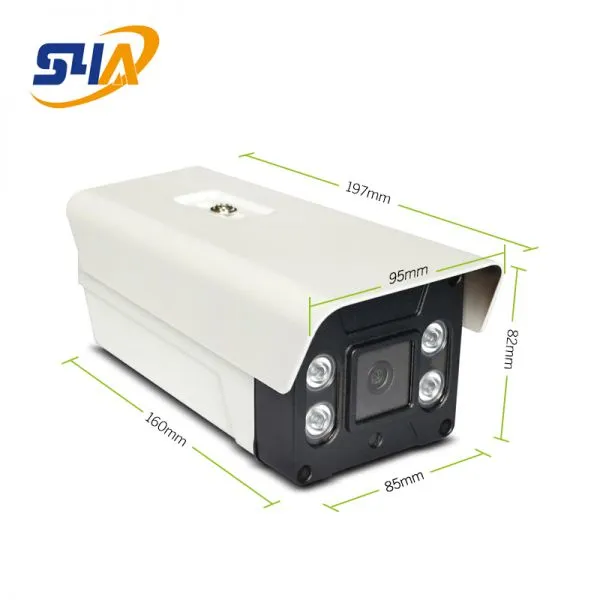

Product | 197x95x82mm | |

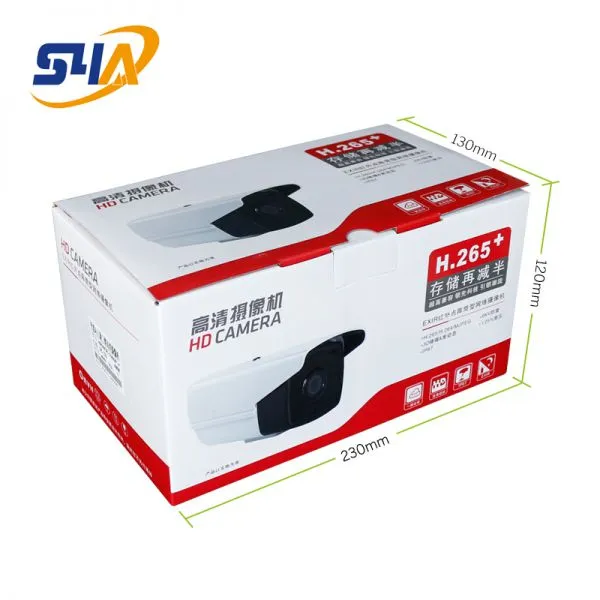

Package | 230x130x120mm |
