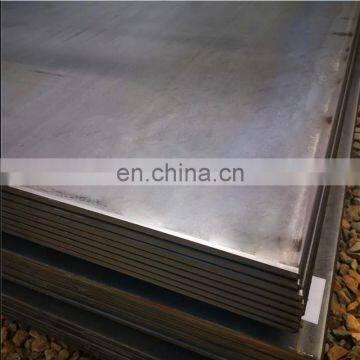

12Cr1MoV Alloy Structural Steel Plate
US$ 600 - 860
MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
liaocheng
Place of Origin:
China
Model Number:
12Cr1mov
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Rolled 15CrMo Steel Plate High Pressure Boiler Steel Iron SheetUS$ 600 - 860MOQ: 3 Tons -
42Crmo 65mn 40Cr 15Crmo 12Cr1MoV Alloy Plate Alloy Steel Plate SheetUS$ 600 - 860MOQ: 1 Ton
-
Hot Roll Alloy Steel Plate 12Cr1MoV Alloy Steel PlateUS$ 600 - 860MOQ: 1 Ton
-
Hot Rolled Low Alloy Carbon Steel Plate 15crmo 30crmo Plate SteelUS$ 600 - 860MOQ: 3 Tons
-
Hot Rolled 12mm 16mm 15crmo 40cr Alloy Steel PlateUS$ 600 - 860MOQ: 1 Ton
Brand Name
liaocheng
Place of Origin
China
Model Number
12Cr1mov
Length
5000-18000
Type
Steel Plate
Width
1500-5200
Application
Container Plate
Surface Treatment
Coated
Technique
Hot Rolled
Standard
AISI, ASTM, BS, DIN, GB, JIS
Grade
12Cr1mov
Special Use
Silicon Steel
Product Description
Chrome molybdenum alloy steel sheet GB 12Cr1MoV steel plate price
12Cr1MoV steel plate is Chinese alloy steel material, which is equivalent to EN10028-2 grade 16Mo3.
12Cr1MoV steel plate is Cr-Mo alloy steel. The addition of molybdenum(Mo) not only improves the resistance to pitting corrosion
but also significantly enhances creep strength at elevated temperatures. The chromium(Cr) improves the resistance to
high-temperature hydrogen attack and graphitization.
12Cr1MoV steel plate is Chinese alloy steel material, which is equivalent to EN10028-2 grade 16Mo3.
12Cr1MoV steel plate is Cr-Mo alloy steel. The addition of molybdenum(Mo) not only improves the resistance to pitting corrosion
but also significantly enhances creep strength at elevated temperatures. The chromium(Cr) improves the resistance to
high-temperature hydrogen attack and graphitization.
Specification |
According to client's need |
||||||
12Cr1MoV steel Density |
7.85 g/cm³ |
||||||
Technique |
Hot rolled, Q+T, Annealed |
||||||
Additional Condition |
AR, TMCP, N, Q+T, Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, UT, The Third Party Test (such as SGS Test) |
||||||
Grade |
C |
Si |
Mn |
Cr |
Mo |
Al |
12Cr1MoV |
0.08-0.15 |
0.20-0.45 |
0.30-0.60 |
1.35-1.65 |
0.15-0.25 |
0.70-1.10 |
Grade |
Sample Raw Stock Size mm |
Heat Treatment |
Mechanical Property |
||||||||
Quench |
Tempering |
Tempering |
Tensile Strength MPa |
||||||||
Heat Temperature, ℃ |
Coolant |
Heat |
Coolant |
||||||||
1st Quench |
2nd Quench |
Temperature, ℃ |
No Less Than |
||||||||
12Cr1MoV |
30 |
970 |
- |
Air |
750 |
Air |
490 |
||||
Detailed Images
12Cr1MoV steel plate application:
12Cr1MoV steel plates are mainly used in the manufacture of bridges, ships, vehicles, boilers, high pressure vessels, oil and gas
pipelines, large steel structures and so on.
12Cr1MoV steel plates are mainly used in the manufacture of bridges, ships, vehicles, boilers, high pressure vessels, oil and gas
pipelines, large steel structures and so on.
