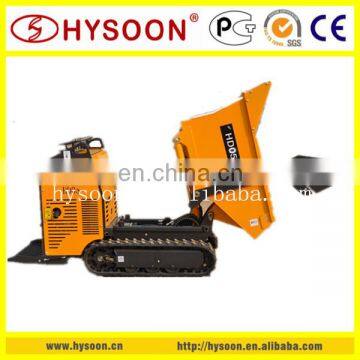

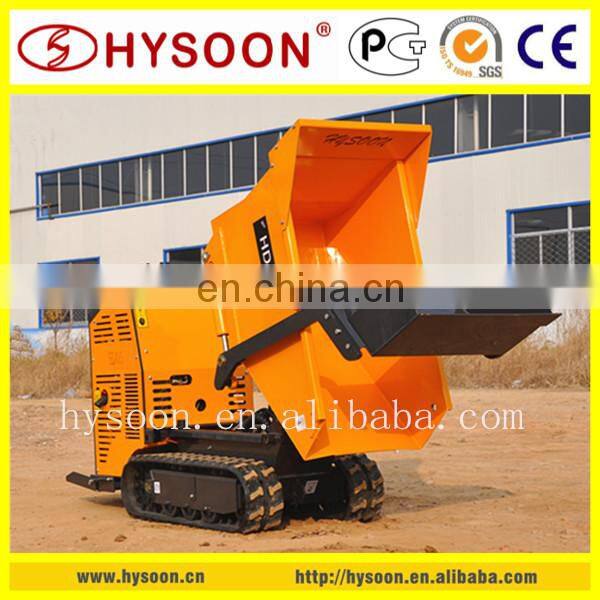

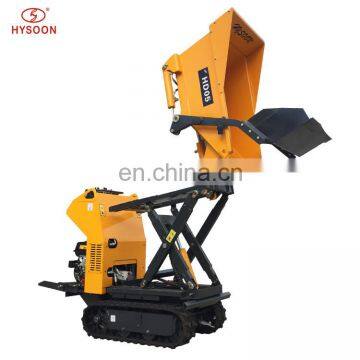

Mini Dumper Mini Dump Truck Small Loading Shovel
HD05A Small Loading Shovel & Main features:
Time saving service:
Integral type Chassis ensures operating and maintaining easily.
Complete hydrostatic transmission technology makes the mini track dumper more stability.
Thanks to the open-style design of left-side, right-side and back cover guards;
You can fill the diesel & engine oil and exchange the engine air filter for the mini track dumper conveniently.
All the cover guards on the operation system can be dismounted quickly and repair the dumper more convenient and fast
Compact size:
Size:1895mm*695mm*1220mm. Its flexibility performance ensures the mini track dumper to transport kinds of materials in small space.
High efficiency:
Safe and quick rear dumping.
HD05A Small Loading Shovel & Main parameter:
Model |
HD05A |
Skip | |
Length |
1221 |
Width |
690 |
Height |
585 |
Capacity |
0.31m3 |
Angle of dumping |
45° |
Angle from the ground |
10° |
Engine | |
Fuel |
Diesel |
Rated power |
6.8Kw |
rotating speed |
3000r/min |
Cylinder |
1 |
Hydraulic system | |
Motor |
Big torque motor |
Double pump |
Gear pump |
System pressure |
16MPa |
System flow |
12ml/min |
Hydraulic oil tank capacity |
19.4L |
Body of machine | |
Operating weight |
800kg |
Load capacity |
600kg |
Fuel tank |
5.5L |
Speed |
3.5km/h |
* 1 year warranty.
* 24h hours technical support
* Calling or Door to door service.
* Supply High Quality Products for You At Reasonable Price.
* Accept Your Customization.
Why us?
1. Independent of the design team, Professional production team, 15 Technical patents. Accept your customization.
2. High Quanlity & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price, But we offer products is the highest quality.
3. Responsible, in good faith. To guarantee delivery. Do security by alibaba Escrow.
Our Warranty?
1. 1 Year Warranty. Offer you accessories for free in 1 year warranty period.
2. Provide technical support for life.
Do we have Distributors?
Yes, In Australia, we have distributor for many years. And We are widely recruit dealers around the world. If you want to be one of them, please contact us.
Can we Support OEM?
Yes.
