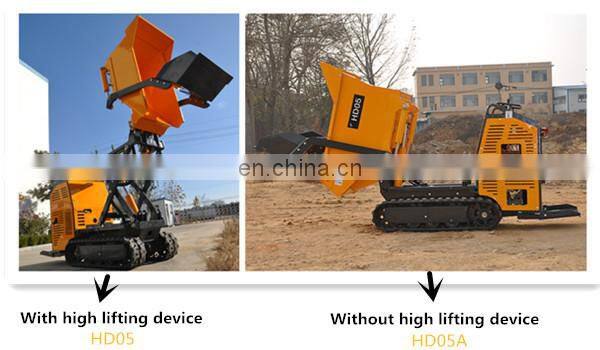

HD05A Mini Dumper de OrugaUS$ 4,500 - 5,500MOQ: 1 Set -
HYSOON HD05A Mini Dumper de OrugasUS$ 4,500 - 5,500MOQ: 1 Set
-
Chinese Mini Tip Truck DumperUS$ 11,000 - 12,000MOQ: 1 Set
-
Chinese CE Certificated Self-loading Hydraulic Mini Dumper Crawler TypeUS$ 4,500 - 5,500MOQ: 1 Set
-
HYSOON FD350 Mini Track DumperUS$ 1,000 - 10,000MOQ: 1 Set

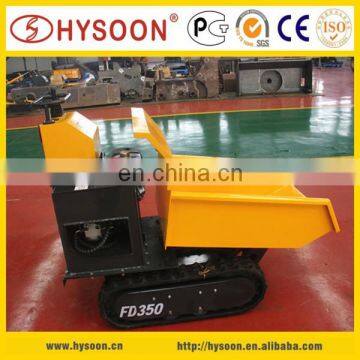

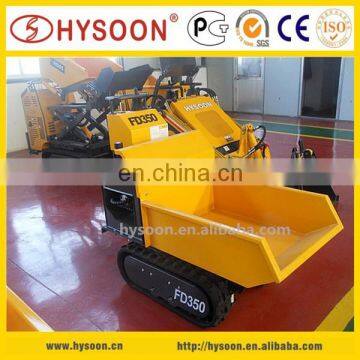

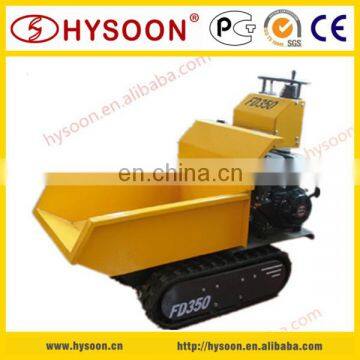

CE certificated garden hydraulic crawler mini dumper
Features:
• With crawler tyre, size(mm):1498* 764* 1300
• Imported hydraulic parts ensures easy operation and maintenance.
• More drive force and cross-country power.
• Crawler track installed protects your grassland
• It is a skid steer dumper, with short Turning Radius, it is more suitable for working in small space.
• Full hydraulic system control, handle control, save energy, operate easily and load 350kg.
• Usage: Widely used in garden, orchard, Nursery, building sites.....
Main size:
Items |
Metric |
Inch |
Max operating height(H) |
1300mm |
51.18 in |
Bucket dumping max height(H3) |
1238mm |
48.74 in |
Max bucket dumping height(H2) |
59mm |
2.3 in |
Bucket dumping angle(α) |
80° |
80° |
Axle base(L) |
620mm |
24.4 in |
Total length(L1) |
1498mm |
58.98 in |
Ground clearance(H1) |
55mm |
2.2 in |
Wheelbase(A) |
550mm |
21.65in |
Total width(B) |
764mm |
30.08 in |
Mini turning radius (R) |
915mm |
36in |
Main performance parameter:
Engine |
|
Parameter |
|
Rated power |
11hp /3600rpm |
||
Max torque |
23.5N.m/2400 rpm |
||
Noise(Db) |
≤80 |
||
Hydraulic system |
System pressure |
15MPa=150bar=2175psi |
|
System flow |
14.4L/min |
||
Hydraulic oil tank capacity |
27L(5.94UK gal) |
||
Working times |
Bucket dumping |
Collect bucket |
|
2.28 |
1.3 |
||
Performance |
Rated operating load |
350Kg (771.6 Lb) |
|
Bucket capacity |
0.13m3 (4.6 ft3) |
||
Speed |
Measured: 3Km/h ( 2.05mile/h); Theoretical: 5.4Km/h(3.36mile/h) |
||
Operating weight |
420Kg ( 925.9Lb) |
||
Compared with hand guided mini dumpers, relaxed and turn easily, just handle control
Similar products:

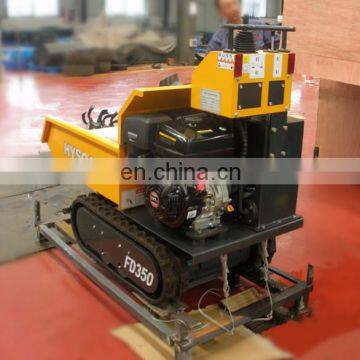

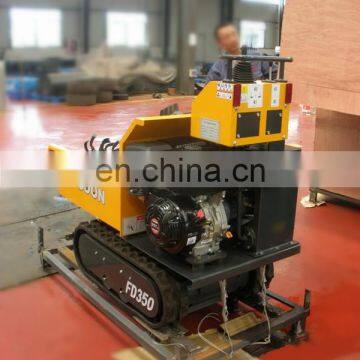

One set & LCL: steel frame & plywood packing:
FCL: nude packing, 10 sets for a 20 feet container; 20 sets for a 40 feet container.
1.The Reasons you choose us?
1). We are the professional manufacturer of crawler mini dumper in China.
4). Responsible, in Good Faith. To Guarantee Delivery. Do Security by Alibaba Escrow.
2. Our Warranty?
1). Warranty: 1 Year. Offer You Accessories for Free in 1 Year Period.
2). Provide Technical Support for Life.
3. Do We have Distributors?
Yes. In South Korea. And we are widely recruit Distributors Around the World.
4.Can We Support OEM?
Yes, we can.
