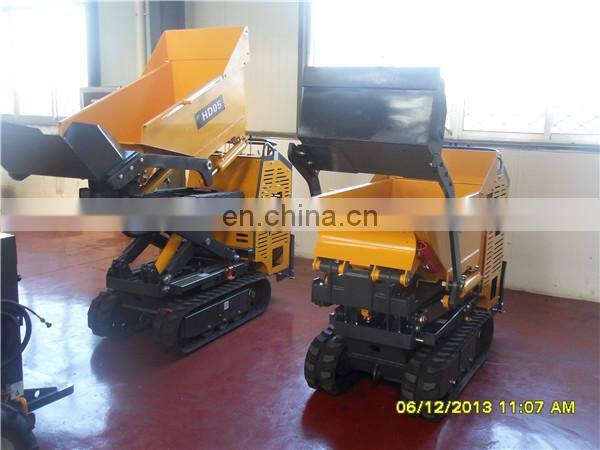

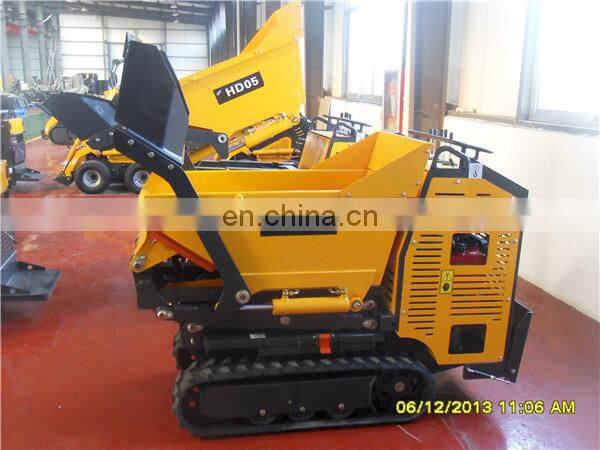

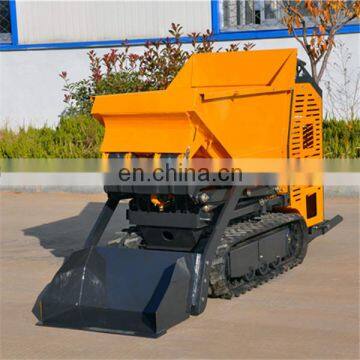

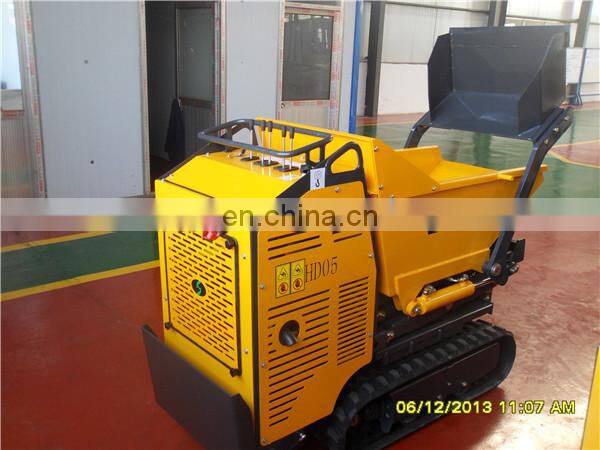

mini track dumper
9.8 gasline engine
500kg load capacity
with tracks
self-loading bucket and high lifing device for choice
1.Famous engine meets all emission standards
2.Imported hydraulic parts ensure easy operation and maintenance
3.Super trafficability because of the narrow width
4.big load capacity
5.self-loading bucket and high lifting device for choice,much convenient during working
6.track installed protects your grassland
| Engine | Rated Power | 9.6Kw (13HP) |
| Rated Speed | 3000 rpm | |
| Fuel | Diesel | |
| Noise | <=80 | |
| Hydraulic Pressure | 16Mpa | |
| Flow Rate | 20L/min | |
| Hydraulic oil tank volume | 19.4L | |
| Load capacity | 500kg or 600kg | |
| Hopper capacity | 0.2cbm or 0.31cbm | |
| Self-loading bucket capacity | 0.04cbm | |
| Speed | 0-3.5km/h | |
| Operating weight | 600kg or 800kg | |
| Total Height (H) | 1220mm |
| Max Lifting Height | 1719mm |
| Max Dump Height | 1447mm |
| Dump Angle | 57degree |
| Wheelbase | 515mm |
| Total Length without self-loading bucket | 2021mm |
| Total Length with self-loading bucket | 2421mm |
| Departure Angle | 10degree |
| Axles base | 862mm |
| Total Width | 695mm |
| Min Turning Radius R | 820mm |
Pakcing&Shipping for the mini dumper
for sample order-----packing by steel frame and covered with ply-wood,delivery by LCL container
for quantity order----loaded into container directly and fasted well,10sets/20'container.
Sample order available
Customize available
Quickly respond about after-sale service
TAIAN HYSOON MACHINERY CO.,LTD is the original manufacturer of the mini dumper,mini loader,mini skid steer loader,skid steer loader and loader attachment in China.We focus on research and manufacture the small and medium-sized construction machinery.We currently have 4 series in manufacture,more than 10 kinds of products.Including Mini Loaders,Skid Steer Loaders,Dumpers,Tracked Carrier.Most of them have got C E and
G O S T Certification,and exported world-wide,for example Germany,Sweden,Australia, America.
And there is more than 30 kinds of attachments for loaders,such as Sweeper,Digger,Hydraulic Breaker,Fork,Lawn Mower,Trencher, to suit any different work requirement.
TAIAN HYSOON MACHINERY CO.,LTD concentrates on supplying solution for small and middle construction projects,researching and developing high quality products according to customers’ requirements,creating more value for customers.Looking forward to cooperate with you,achieving Win-Win situation.
Welcome to HYSOON!
Why us?
1. We are the 1st manufacturer of mini skid steer loader and mini skid steer attachmetns in China.
2. Independent of the design team, Professional production team,15 Technical patents. Accept your customization.
3. High Quanlity & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price,
But we offer products is the highest quality.
4. Responsible, in good faith. To guarantee delivery. Do security by alibaba Escrow.
Our Warranty?
1. Offer you accessories for free.in 1 year warranty period.
2. Engine Warranty is 3 years, International Warranty.
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world. If you want to be one of them, please contact us.
Can we Support OEM?
Yes, we can.
