garden mini dumper
11HP diesel engine
with tracks
with CE GOST
1.Famous engine meets all emission standards
2.Imported hydraulic parts ensure easy operation and maintenance
3.Super trafficability because of the narrow width
4.big load capacity
5.More drive force and cross country power
6.track installed protects your grassland
| Product | Track Mini Dumper FD350 | |
| Engine | Rated Power | 8.2Kw (11HP) |
| Rated Speed | 3600 rpm | |
| Fuel | Gasoline | |
| Noise | <=80 | |
| Hydraulic Pressure | 15Mpa | |
| Hydraulic oil tank volume | 22L | |
| Load capacity | 350kg | |
| Hopper capacity | 0.13cbm | |
| Speed | 0-3.3km/h | |
| Operating weight | 420kg | |

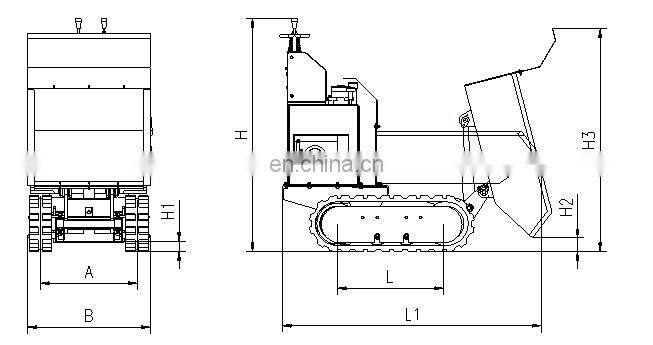

| Item | Data |
| Total Height (H) | 1300mm |
| Max Dump Height (H2) | 80mm |
| Dump Angle | 80degree |
| Axles base (L) | 620mm |
| Total Length (L1) | 1498mm |
| Ground Clearance (H1) | 55mm |
| Wheelbase (A) | 564mm |
| Total Width (B) | 764mm |
| Min Turning Radius R | 820mm |
Pakcing&Shipping for the mini dumper
for sample order-----packing by steel frame and covered with ply-wood,delivery by LCL container
for quantity order----loaded into container directly and fasted well,11sets/20'container.
Sample order available
Customize available
Quickly respond about after-sale service
Why us?
1. We are the 1st manufacturer of mini skid steer loader and mini skid steer attachmetns in China.
2. Independent of the design team, Professional production team,15 Technical patents. Accept your customization.
3. High Quanlity & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price,
But we offer products is the highest quality.
4. Responsible, in good faith. To guarantee delivery. Do security by alibaba Escrow.
Our Warranty?
1. Offer you accessories for free.in 1 year warranty period.
2. Engine Warranty is 3 years, International Warranty.
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world. If you want to be one of them, please contact us.
Can we Support OEM?
Yes, we can.
