HD10L mini front loader,Hysoon mini wheel loader,
with Perkins Engine
4WD
with tyres
ride on operation
small machine with strong power,
suitable for different working condition,such as home,garden,landscaping,golf course,
waste treatment plant,small construction,road maintenance,mining.

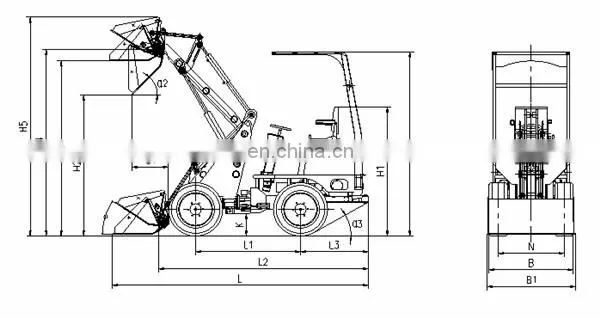

Parameter for HD10L mini front loader
| Engine Brand | Perkins |
| Fuel | Diesel |
| Rated Power | 30HP |
| Fuel Volume | 15.3L |
| Hydraulic oil volume | 30L |
| Operate Weight | 1100kg |
| Load capacity | 1000kg |
| Bucket capacity | 0.3cbm |
| Speed | 0-10km/h |
| Min Turning Radius | 3190mm |
| Tyre | 10.00/75-15.3 |
| Max Pin Height (B) | 2690mm |
| Max Dumpe Height (C) | 2030mm |
| Dump distance at highest point (D) | 515mm |
| Total Height (H) | 2660mm |
| Ground Clearance (F) | 320mm |
| Wheelbase (G) | 1490mm |
| Length without bucket (J) | 2980mm |
| Total Width (W) | 1200mm |
| Bucket Width (K) | 1260mm |
| Total Length(with bucket) (L) | 3630mm |
| Departure Angle | 30degree |
| Bucket dump angle | 45degree |
| Bucket Collection angle | 34degree |

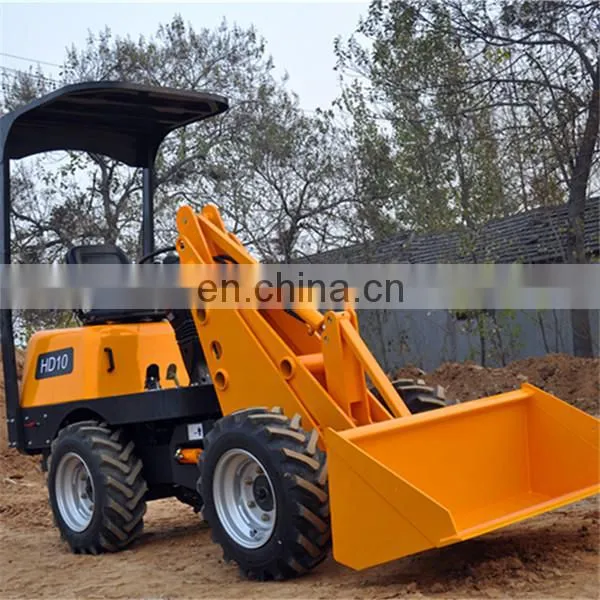

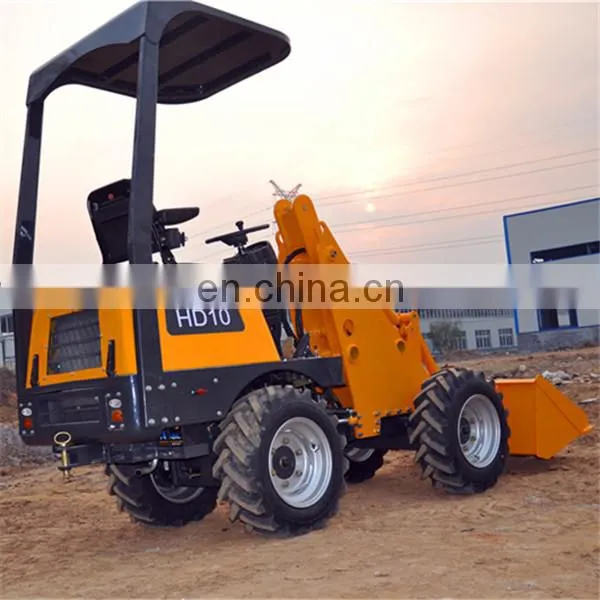

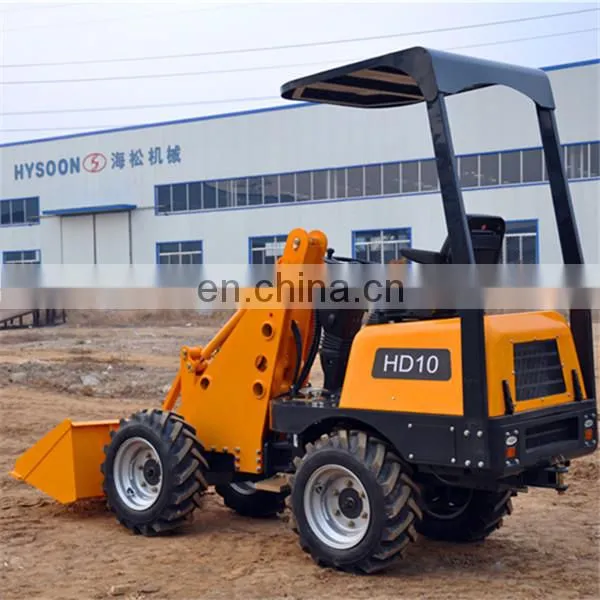

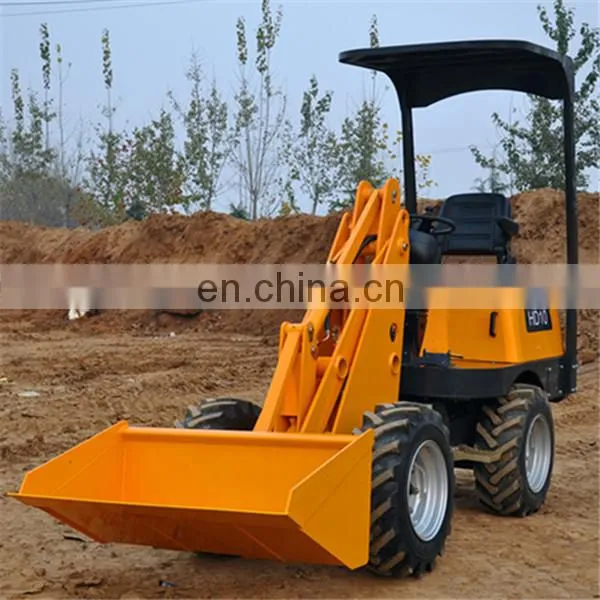

Please check more detail pictures for HD10L mini front loader as below

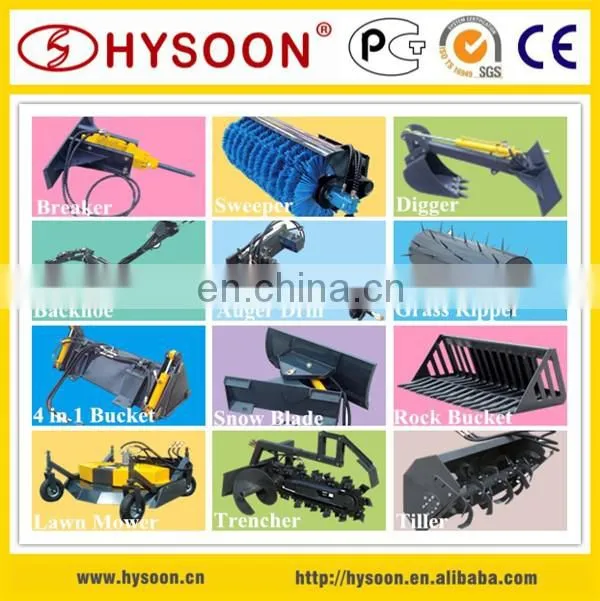

HD10L mini front loader attachments

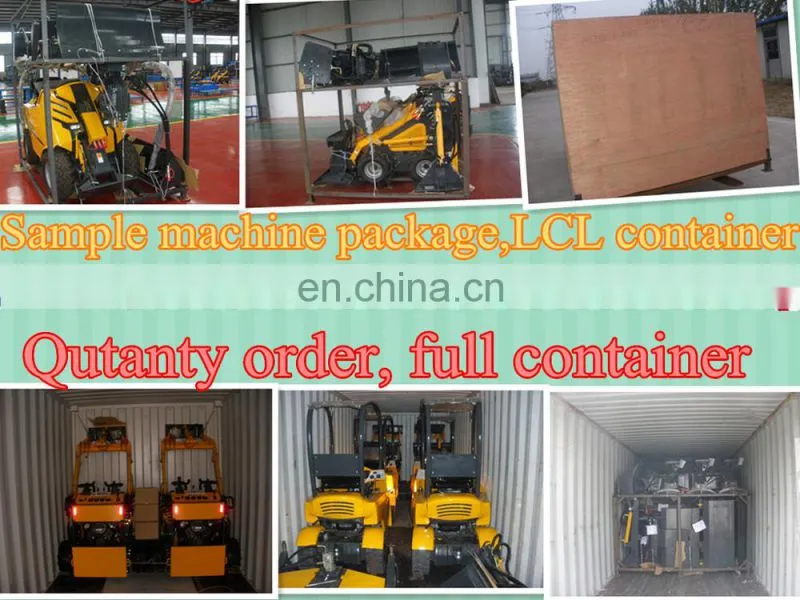

The sample order for China wheel loader will be packed by steel pallet,and delivery by LCL container;
For quantity order will be loaded into the container directly,and fasten well.
It can load 8sets China wheel loader per 20'container.
Taian Hysoon Machinery Co.,Ltd.
is the manufacture of the construction machinery.
We always focus on mini construction equipment,now have a series products.
And in the year 2015,Hysoon company will focus on to realize remote control on our proudcts
Wish there is chance to cooperate with you,for win-win.
Taian Hysoon Machinery Co.,Ltd. workshop overview
Taian Hysoon Machinery Co.,Ltd. Products Range
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Hysoon loaders have get the CE Certificateion and GOST Certification,
for the mini skid steer loader HY380 and HY280,
bobocat skid steer loader HY700 and HY850,
mini loader HY200,
mini dumper FD350 and HD05 and HD10.
For further info about any Hysoon products,please do kindly contact
