Home > Products > mini loaders > HYSOON electric mini garden tractor loader
HYSOON electric mini garden tractor loader
- 200 Set / Sets per Month
- Qing Dao Tian Jin Ning Bo Shang Hai
- T/T Credit Card
Product Details
Brand Name: | HYSOON | Place of Origin: | Shandong, China | Type: | Mini Loader |
Certification: | CE GOST | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12 Month |
Condition: | New | Dimension(Long * Breadth * High): | 2424* 970* 2020mm | Moving Type: | Wheel Loader |
Rated Load: | 260kg |
Product Description
HYSOON electric mini garden tractor loader
- Articulated steering chassis
- hydrostatic transmissin
- 4 wheel driving, ride on driving makes you more comfotable
- Impoted hydraulic system from Italy
- Quick installation system. A hitch plate can be ensured that the attachments can be installed/uninstalled easily and quickly, and to make sure that it will not influence your work efficiency
- The compact dimension, hydrostatic transmission guarantees smooth, flexible and precise driving. The machine can be controlled very exactly both on low and higher drive speed.

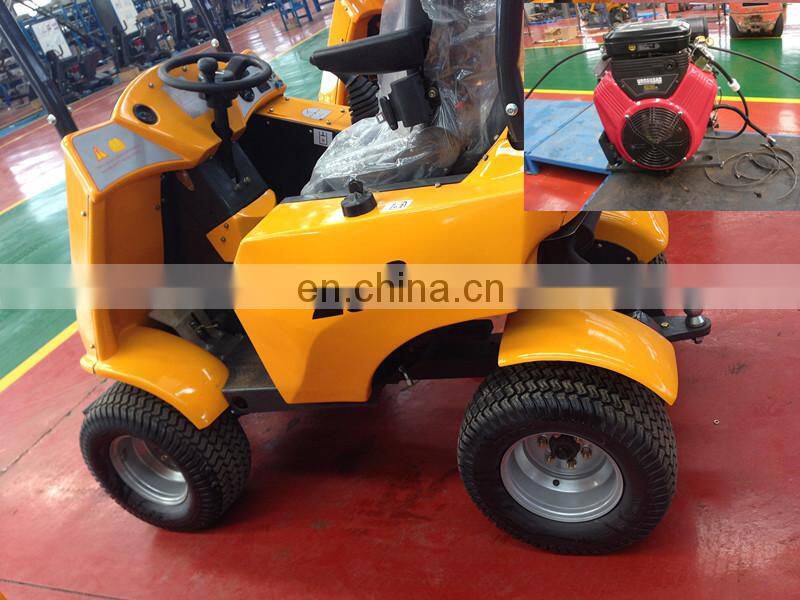

With Electric motor, also can change to 23HP Briggs&Stratton gasoline engine
easy control and maintenance, two pedals for selecting the driving direction and speed

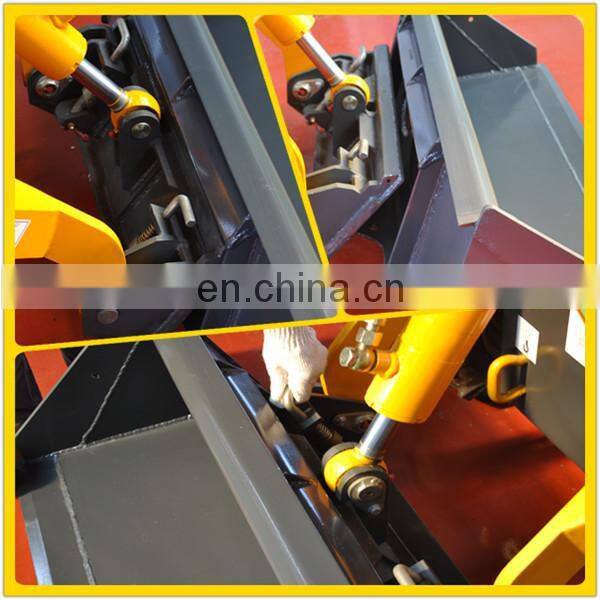

One special quick attach for the bucket
CE Cetificated mini loader (HY200) Attachments

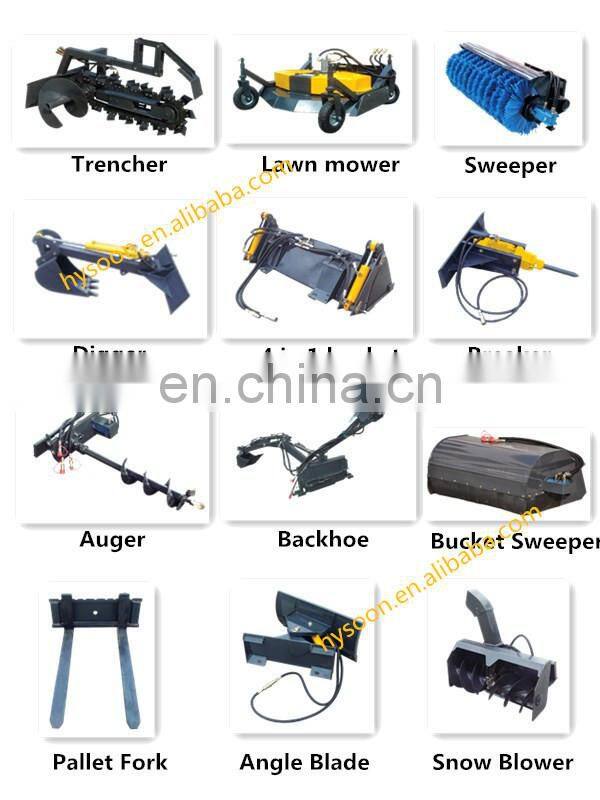

There are numerous loader Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.

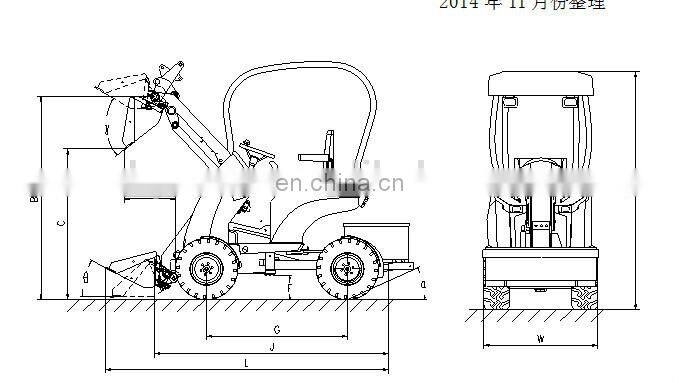

Item | HY200E | |
Metric | Inch | |
(B) Max pin height | 1755mm | 69.1inch |
(C) Max dumping height | 1295mm | 51.0 inch |
(D) Max dumping distance | 430mm | 16.9 inch |
(H) Total height | 2045mm | 80.5 inch |
(F) Ground clearance | 210mm | 8.3 inch |
(G) Wheel base | 1207mm | 47.5 inch |
(J) Overall length without bucket | 2015mm | 79.3 inch |
(W) Total width | 1180mm(20×10tyre) | 46.5 inch |
(K) Bucket width
| 1150mm | 45.3 inch |
(L) Total length with bucket | 2430mm | 95.7 inch |
(α) Departure angle | 25° | 25° |
(γ) Bucket dumping angle | 37° | 37° |
(θ) Rollback of bucket on ground | 28° | 28° |
For LCL, package playwood & iron pallet
5 sets for 20" container, 10 sets for 40" container
- 1 year warranty.( Engine warranty is 3 years, International warranty service)
- 24hours technical support
- Calling or door to door service
- Supply high quality small wheel loader for you at reasonable price
- Accept your customization
Our company is the leading professional manufacturer specializing in mini skid steer loader and skid steer attachments in north of China for 7years and get rich experience.
Complying with the principle of "Credit First and Quality First", we zealously adopt the advanced production technology, use the advanced equipment and implement the advanced management experience in the production of miniature engineering machinery. We manufacture all kinds of miniature engineering machines which have the beautiful appearance, the high quality and bring the comfort and convenience to you during operation.
Our products are not only popular in domestic markets, but also have been exported to America, Canada, Australian, Argentina,Russia, etc. Due to the high quality, we received the extensive approval and trust from our clients all over the world.
We strictly comply with ISO9001 Quality Management System Authentication and ISO1400 Environment Management System Authentication. The amount of engines' exhaust has reached EURO or RURO III Standard.
Exhibition
Warmly welcom to visit our factory
Why us?
1. We are the first manufacturer of mini loader with accessories in China.
2. we have stong technical support , Professional desgin team, can make sepcial design for you.
3. High Quality & Reasonable Price. The accurate product positioning.
4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory .
Our Warranty?
1. supply parts for free if damage within 1 year warranty time .
2. Engineers are available to service machinery overseas
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world.
If you want to be one of them, please contact us.
Can we accept OEM?
Yes, we can
