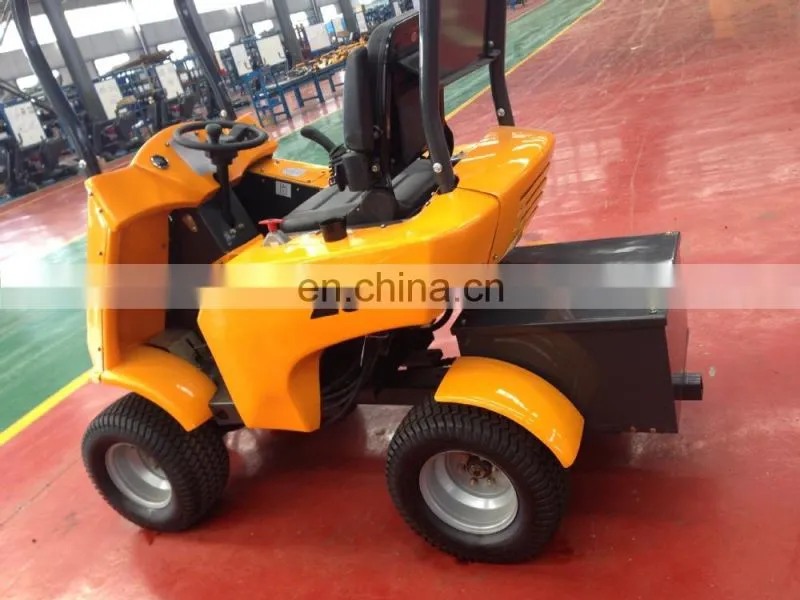

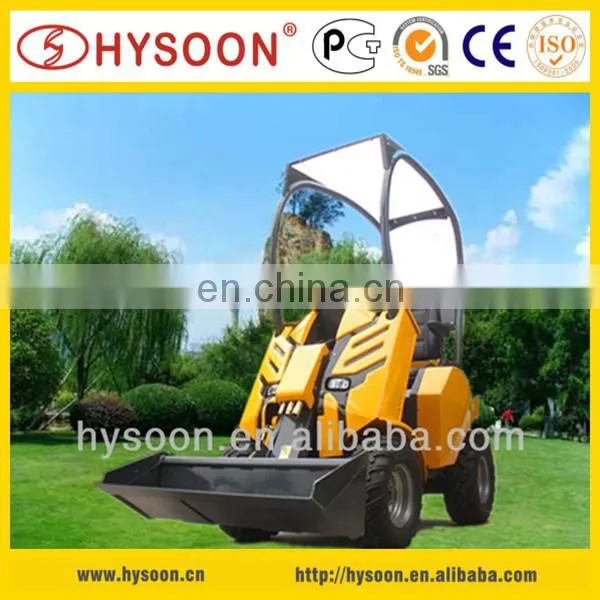

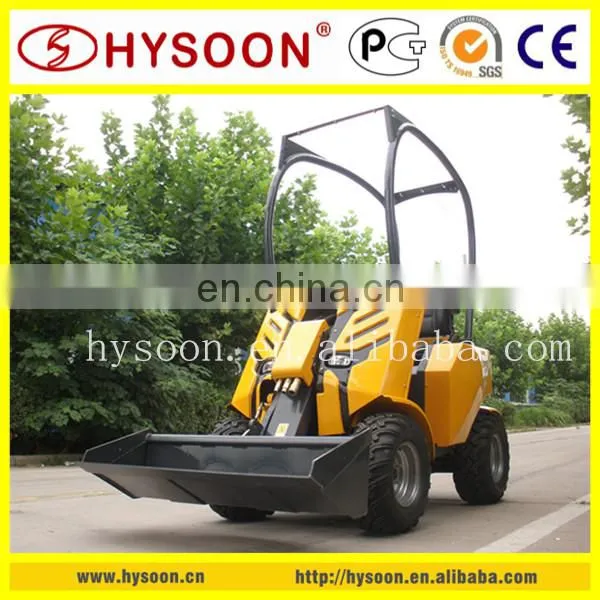

HYSOON electric motor mini loader like Avant HY200E
- Articulated steering chassis
- hydrostatic transmissin
- 4 wheel driving, ride on driving makes you more comfotable
- Impoted hydraulic system from Italy
- Quick installation system. A hitch plate can be ensured that the attachments can be installed/uninstalled easily and quickly, and to make sure that it will not influence your work efficiency
- The compact dimension, hydrostatic transmission guarantees smooth, flexible and precise driving. The machine can be controlled very exactly both on low and higher drive speed.

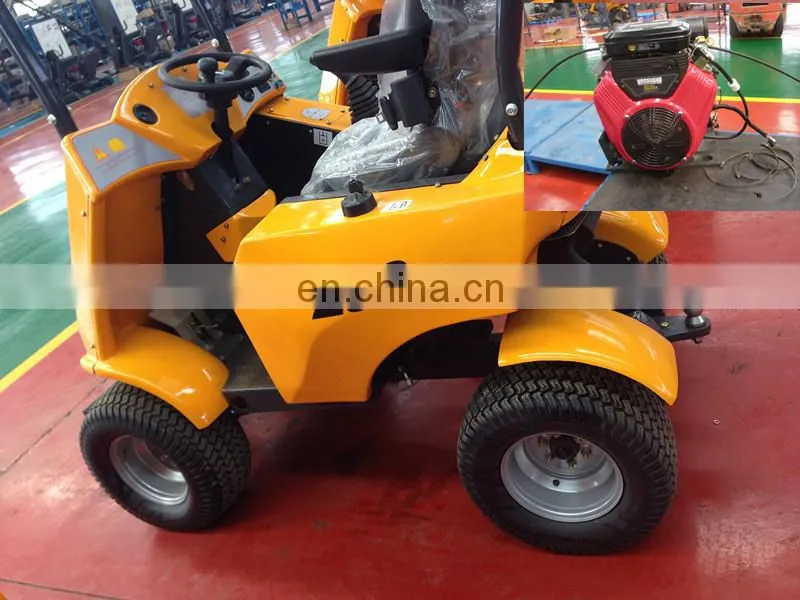

With Electric motor, also can change to 23HP Briggs&Stratton gasoline engine

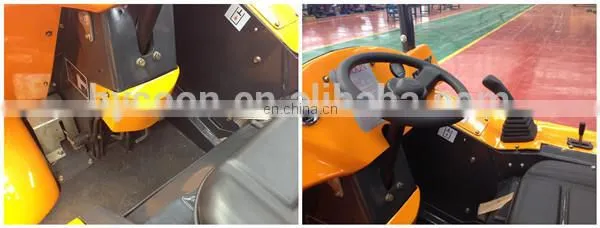

easy control and maintenance, two pedals for selecting the driving direction and speed

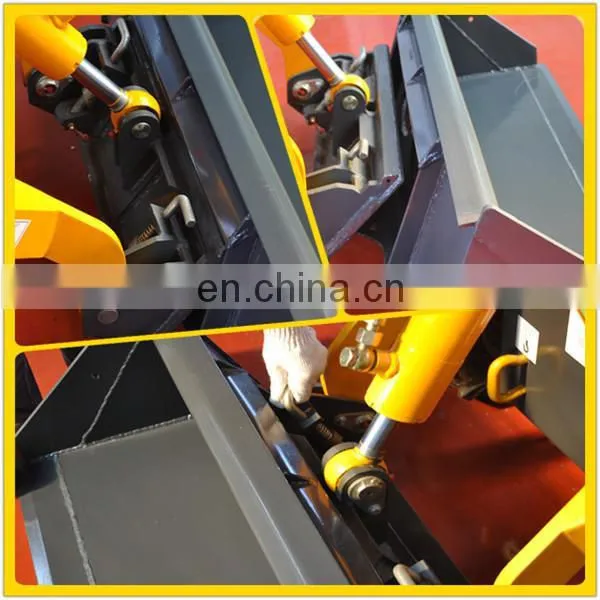

One special quick attach for the bucket
CE Cetificated mini loader (HY200) Attachments
There are numerous loader Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.

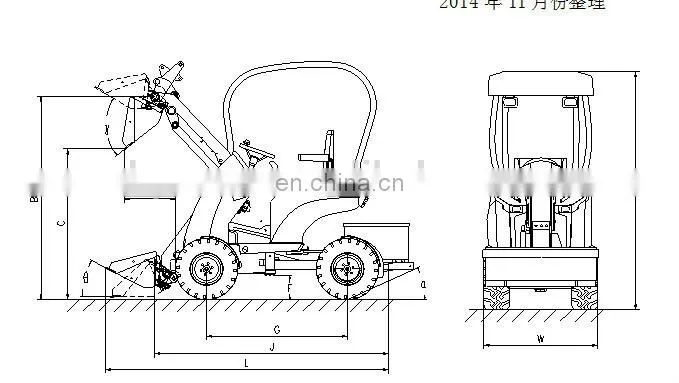

Item | HY200E | |
Metric | Inch | |
(B) Max pin height | 1755mm | 69.1inch |
(C) Max dumping height | 1295mm | 51.0 inch |
(D) Max dumping distance | 430mm | 16.9 inch |
(H) Total height | 2045mm | 80.5 inch |
(F) Ground clearance | 210mm | 8.3 inch |
(G) Wheel base | 1207mm | 47.5 inch |
(J) Overall length without bucket | 2015mm | 79.3 inch |
(W) Total width | 1180mm(20×10tyre) | 46.5 inch |
(K) Bucket width
| 1150mm | 45.3 inch |
(L) Total length with bucket | 2430mm | 95.7 inch |
(α) Departure angle | 25° | 25° |
(γ) Bucket dumping angle | 37° | 37° |
(θ) Rollback of bucket on ground | 28° | 28° |
