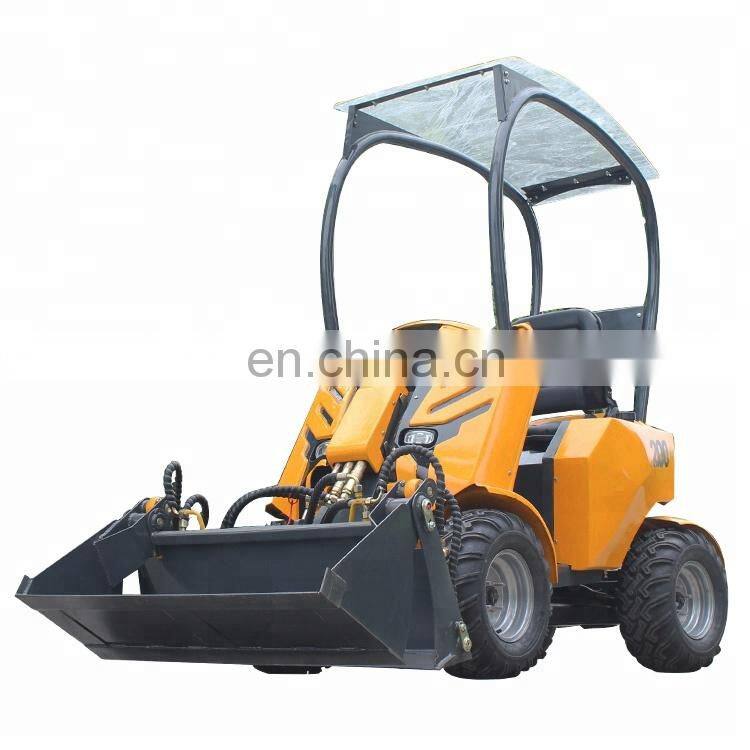

small front end loaders for sale
1.Main specification
Imported American Briggs&Stratton gasoline engine 23HP
Imported Italy pump and valve
Articulated steering chassis and four-wheel drive
Bucket capacity : 0.15^m3
Rated load:260Kg
Main size :
Item |
HY200 |
|
Metric |
Inch |
|
Max pin height (B) |
1769 mm |
69.6 inch |
Max height of unloading (C) |
1260mm |
49.6inch |
The highest point of unloading distance(D) |
558 mm |
21.9 inch |
Total length (H) |
2020 mm |
79.5 inch |
The height from ground (F) |
160 mm |
6.3 inch |
Wheelbase (G) |
1207 mm |
47.5 inch |
No bucket length (J) |
2030 mm |
79.9 inch |
Total width (W) |
970 mm |
38.2 inch |
Bucket width (K) |
980mm |
38.6 inch |
Total length (L)(with bucket ) |
2424 mm |
93.1 inch |
Angle of departure (α) |
40° |
40° |
Bucket unloading angle(γ) |
27° |
26° |
Collecting bucket (θ) |
48° |
48° |
Main performance parameter
Item |
HY200 |
|
Metric |
Inch |
|
Rated power |
17.15KW |
23HP |
Fuel tank of capacity |
22L |
4.8 UKgal |
Hydraulic tank capacity |
21L |
4.6 UKgal |
Loading weight |
260Kg |
573.2 Lb |
Bucket capacity |
0.15 m3 |
5.32 ft3 |
Max traction force |
5 KN |
1124Lbf |
Max lift force |
4.6 KN |
1034 Lbf |
Speed |
0-8km/h |
0-4.97mile/h |
Max lift force |
260 Kg |
573.2 Lb |
Minimum turning radius |
2320mm |
91.3 inch |
Operation weight |
840kg |
1851.9lb |
2. Various attchments can be mounted on HY200 like Breaker , Auger , Digger , Trencher , snow blower , snow blade , sweeper , backhole , ripper , fork , 4 in 1 bucket, leveller ,trencher , and so on . Use one HY200 , you will finish different works with high effiency !

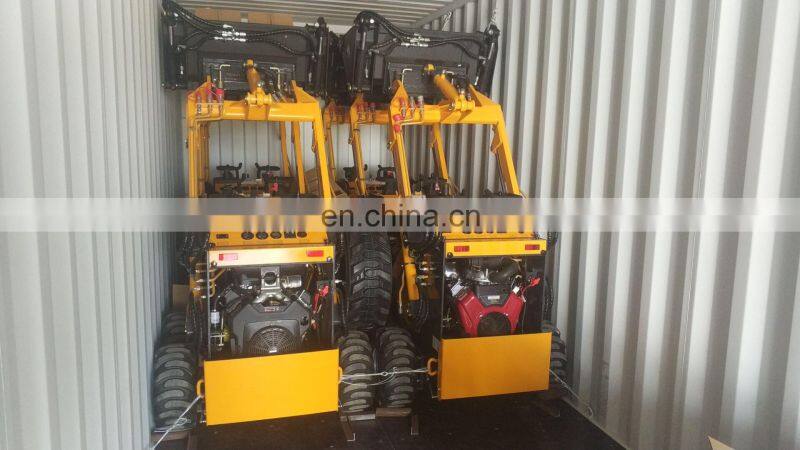

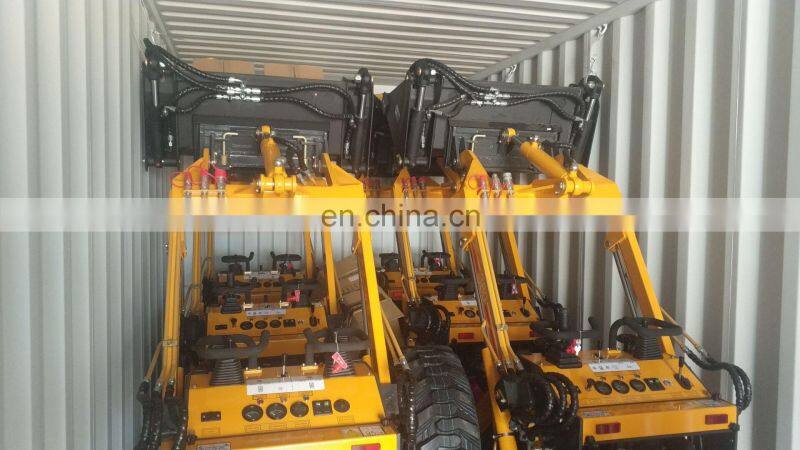

3. packaging :
If less than full container load, we use pywood &iron frame package
It’s very strong toprotect the products .
If full container load , we fix the machine in the container
4. Exhibition
We attended lots professional exhibitions : Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on . Our products have won lots customers loved .Following are some pictures :
5.Warmly Welcome you to visit our factory
Further informations , please do not hesitate to contact me . Your satisfaction is our relentless pursuit .
