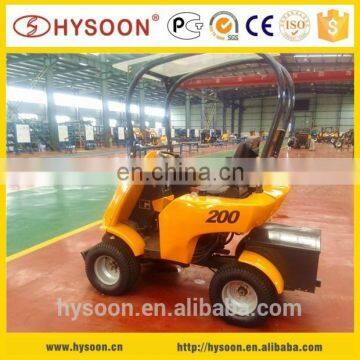

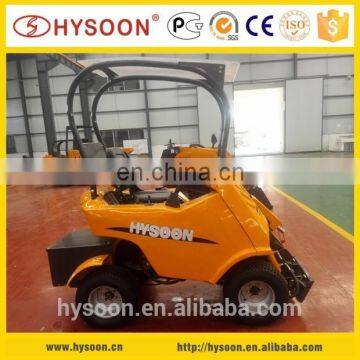

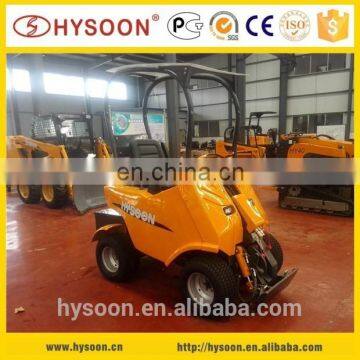

HYSOON Electric small wheel loader
1.Main specification
Electric motor :7.5KW
Battery capacity :150AH
Imported Italy pump and valve
Articulated steering chassis and four-wheel drive
Bucket capacity : 0.15^m3
Rated load:260Kg

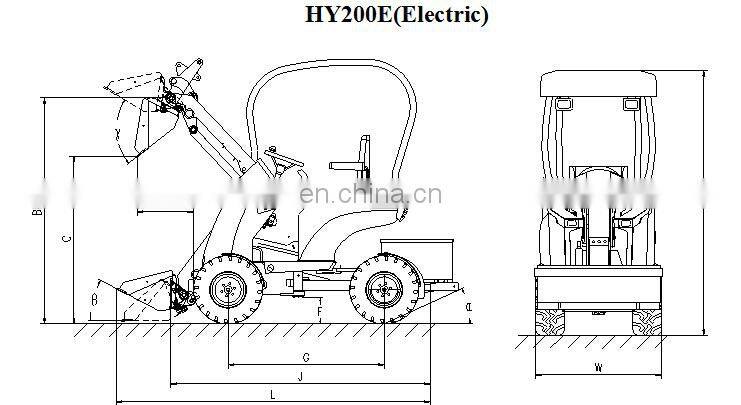

Item |
HY200E |
|
Metric |
Inch |
|
(B) Max pin height |
1755mm |
69.1inch |
(C)Max dumping height |
1295mm |
51.0 inch |
(D) Max Dumping distance |
430mm |
16.9 inch |
(H) Total height |
2045mm |
80.5 inch |
(F) Ground clearance |
210mm |
8.3 inch |
(G) Wheel base |
1207mm |
47.5 inch |
(J) Overall length without bucket |
2015mm |
79.3 inch |
(W)Total width |
1180mm |
46.5 inch |
(K) Bucket width |
1150mm |
45.3 inch |
(L) total length |
2430mm |
95.7 inch |
(α) Departure angle |
25° |
25° |
(γ) Bucket dumping angle |
37° |
37° |
(θ) Rollback of bucket on ground |
28° |
28° |
Item |
HY200E |
|
Metric |
Inch |
|
Electric motor power |
7.5 kW |
10 hp |
Accumulator capacity |
150Ah |
150Ah |
Hydraulic oil tank capacity |
21 L |
4.6 UK gal |
Operating weight |
1100Kg |
2425.1 lb |
Bucket capacity |
0.15m³ |
5.32ft³ |
Max pulling force |
5kN |
1124 Lbf |
Max lifting force |
5.1KN |
1146.5 Lbf |
Travel speed |
0-8km/h |
0-4.97 mile/h |
Rated operating load |
260kg |
573.2 lb |
Min turning radius |
2030mm |
80inch |
Electromotor |
three-phase current motor(7.5KW) |
|
Engine cooling |
Air cooling |
|
Drive type |
Hydraulic 4 wheels driven |
|
System pressure |
17MP |
|
Accumulator |
Traction used, maintenance-free lead-acid batteries. Rated voltage 8v, capacity 150Ah. |
|
Tires(standard configuration) |
20×10.00-10P332 4P/TL |
|
2. Various attchments can be mounted on HY200E like Breaker , Auger , Digger , Trencher ,
snow blower , snow blade , sweeper , backhole , ripper , fork , 4 in 1 bucket, leveller ,trencher ,
and so on . Use one HY200 E, you will finish different works with high effiency !
Further informations , please do not hesitate to contact me . Your satisfaction is our relentless pursuit .
