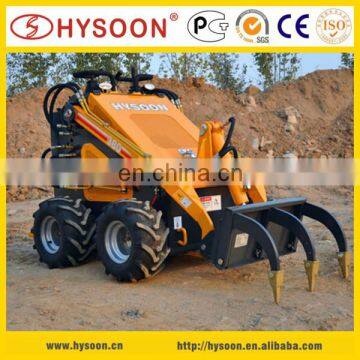

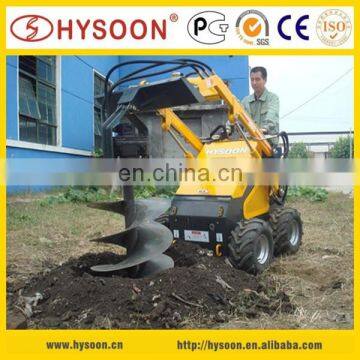

hysoon garden and farm equipment mini skid steers mini dumper 4x4
Features for HY380 Mini skid steer loader:
1. Engine: American Briggs& Stratton Petrol Engine and Diesel Engine Optional
2. Pump: Gear Pump
3. Tires: Engineer Tires. Optional: Solid Tires, Grass Tires, Crawler.
4. With a standard bucket. Or it can not be optional.
5. Optional Configuration: Italy Servo Controller.(Joystick).
| Max Dumping distance E | 348mm |
| Max Dumping Angle α3 | 30° |
| Rollback of bucket on ground α2 | 25° |
| Departure angle α1 | 11° |
| Ground clearance F | 118mm |
| Turn radius forward turning R | 1307mm |
Parameter:
| Engine | Rated power | 23HP | ||
| Rated speed(rpm) | 3600 | |||
| Noise (Db) | ≤95 | |||
| Hydraulic system | Hydraulic pressure(Mpa) | 17 | ||
| Cycle time(s) | Raise | Dump | Lower | |
| 4.27 | 1.34 | 3.31 | ||
| Technical Parameter | Operating Load | 200 Kg | ||
| Bucket Capacity | 0.15 m3 | |||
| Max Lifting Force | 375 Kg | |||
| Travel Speed | 0-5.5Km/h | |||
| Operating Weight | 890 Kg | |||
Easy to Maintanence:
Upper cover&back plate can be opened and dismounted,easily replace and maintain parts, like engine,pump,motor,etc
Italy pump , Italy servo for optional
Wheeled and tracked optional
Various attachments for HY380 MINI SKID STEER LOADER AND FIT FOR MANY KINDS OF APPLICATIONS:
Various accessories can be mounted on it ,like backhoe, digger, fork,sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,4 in 1 bucket,snow blower, leveler, mixer, lawn aerator,trench filler, trencher,grapple,auger,stonr bucket, auger levers,standard bucket,trailer system, and so on.
Small width, the loader can also work in narrow space, such as in door, duckey, hennery, cave, alley,land sorting, garden,ground care, snow removal, mining, recycling,landscaping, construction, companies,property maintenace,dairy industry,farm, Livestock farm , waste(animal waste, municipal solid waste, life garbage) removal, ditching, truck loading ,tree planting and so on.
If LCL , we use plywood & iron frame package , It’s very strong toprotect the products .
If full container load , we fix the machine in the container
Warmly welcome to visit our factory:
We attended lots of professional international exhibitions:
1. Conexpo-Con/Agg2011
2. GIE+EXPO Louisville
3. Baumain Munich
4. AGRITECHNICA 2011
5. Baumain Shanghai 2010-2014
6. Canton Fair
* 1 year warranty. (Engine enjoys 3 years International warranty service.)
* 24h hours technical support.
* Calling or Door to door service.
* Supply High Quality Small Loader for You At Reasonable Price.
* Accept Your Customization.
Why us?
1. We are the 1st manufacturer of hysoon mini dumper 4x4 and mini skid steer attachmetns in China.
2. Independent of the design team, Professional production team,15 Technical patents. Accept your customization.
3. High Quanlity & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price, But we offer products is the highest quality.
4. Responsible, in good faith. To guarantee delivery. Do security by alibaba Escrow.
Our Warranty?
1. Offer you accessories for free.in 1 year warranty period.
2. Engine Warranty is 3 years, International Warranty.
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world. If you want to be one of them, please contact us.
Can we Support OEM?
Yes, we can.
We also produce the following products , please click the following pictures for more products information :
Should you have any further queries, please do not hesitate to contact us.
Susan Jiao Taian Hysoon Machinery Co.,Ltd.
