mini trench digging machine is a multifunction machine,can use dingo attachment,such as digger,breaker,snow blower,fork,auger blade,grapple,lawn mower,trencher can do many works
factory price Hysoon HY380 micro backhoe loader for sale
Brigges&Stratton Engine:23HP
Can load 200kgs,
max lifting force:735kg
Size:1752mm*1033mm*1205mm
CE Certificated
Main Technical Specifications:
| Model | Hysoon HY380 mini trench digging machine |
| Engine Model | B&S 3854 or Kohler |
| Rated Power | 20HP |
| Bucket Capacity | 0.15CBM |
| Rated Load | 200KGS |
| Operating Weight | 940KGS |
| Engine Displacement | 627ML |
| System Pressure | 17Mpa |
| Bucket Breakout Force.Bucket Cylinder | 550KG |
| Breakout Force,Lift Cylinder | 375KG |
| Tipping Load | 325KG |
| Grade Ability | 8° |
| Fuel Tank Capacity | 21L |
| Oil Tank Capacity | 27L |
| Max.Travel Speed | 5.5Km/h |
| Item | Data |
| Max Working Height (A) | 2143mm |
| Max Pin Height (B) | 1884mm |
| Max Dump Height (C) | 1488mm |
| Dump Distance at highest point (D) | 348mm |
| Bucket dump angle | 30degree |
| Bucket collectiong angle | 25degree |
| Departure angle | 11degree |
| Total Height (H) | 1233mm |
| Ground Clearance (F) | 118mm |
| Wheelbase (G) | 636mm |
| Length without bucket (J) | 1752mm |
| Total Width (W) | 1160mm |
| Bucket Width (K) | 1150mm |
| Total Length (with bucket) (L) | 2206mm |
| Turning Radius | 1307mm |

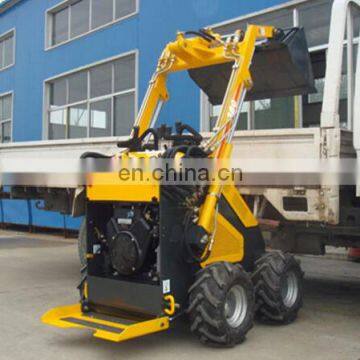

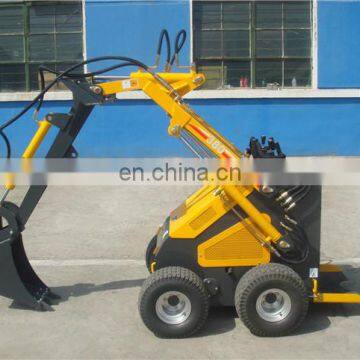

Please check more detail pictures for Hysoon HY380 mini trench digging machine

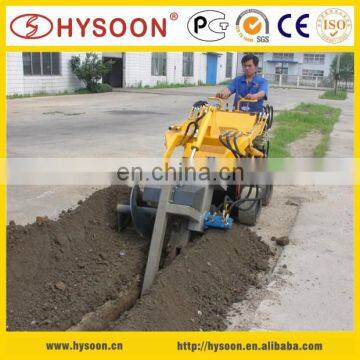

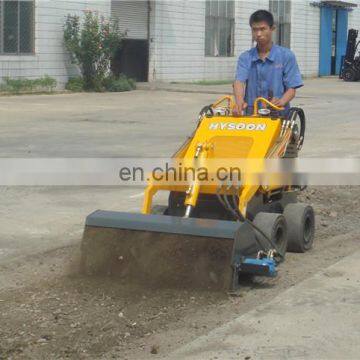

Dingo attachments for Hysoon HY380 mini trench digging machine
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Hysoon loaders have get the CE Certificateion and GOST Certification,
for the mini skid steer loader HY380 and HY280,
bobocat skid steer loader HY700 and HY850,
mini loader HY200,
mini dumper FD350 and HD05 and HD10.
For further info about any Hysoon products,please do kindly contact
