skid steer attachment
1. Attachment for skid steer .

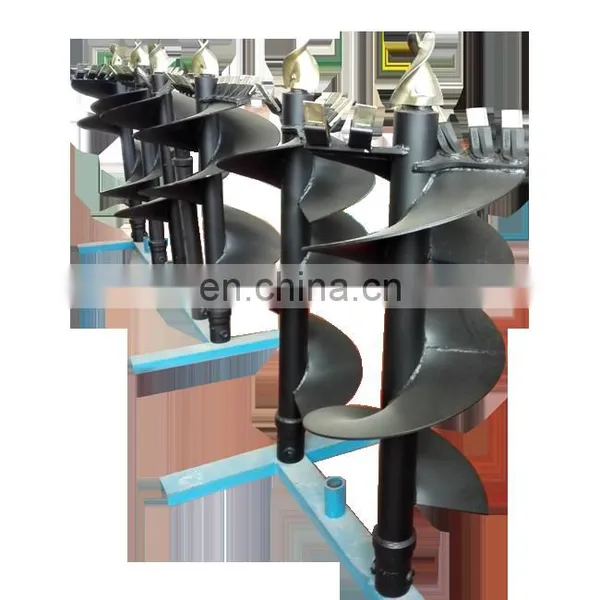

Different attachment like digger , auger , fork , 4 in 1 bucket , sweeper , lawn mower , snow blower , snow blade , stump grinder , trencher , hydraulic breaker , rippler , rotarty tiller and so on . More than 50 kinds of attachments .
2. All above attachment can be worked on HY380
main specification
1.Imported American Briggs&Stratton gasoline engin 23HP
2.Italy pump , Italy servo for optional
3.with Engineering tires
4.0.15M^3 bucket capacity
5.Overall Dimension:2206*1160*1233mm
HY380 mini skid steer loader with attachment |
|
|
Item |
Metric |
Inch |
Max working height(A) |
2115 mm |
83.3 inch |
Max pin height (B) |
1856 mm |
73.1 inch |
Max dump height(C) |
1460 mm |
57.5 inch |
The highest point discharge distance(D) |
388 mm |
15.3 inch |
Bucket swing angle(β) |
55° |
55° |
Bucket unloading angle(γ) |
30° |
30° |
Opening-closing angle(θ) |
25° |
25° |
Angle of departure(α) |
8° |
8° |
Total height (H) |
1205 mm |
47.4 inch |
The height from the ground(F) |
90 mm |
3.5 inch |
Wheelbase (G) |
636 mm |
25.0 inch |
No bucket length(J) |
1752 mm |
69.0 inch |
Total width (W) |
1033 mm |
40.7 inch |
Bucket width (K) |
980 mm |
38.6 inch |
Total length(L)(with bucket) |
2206 mm |
86.9 inch |
Turning radius (R) |
1307 mm |
51.5 inch |

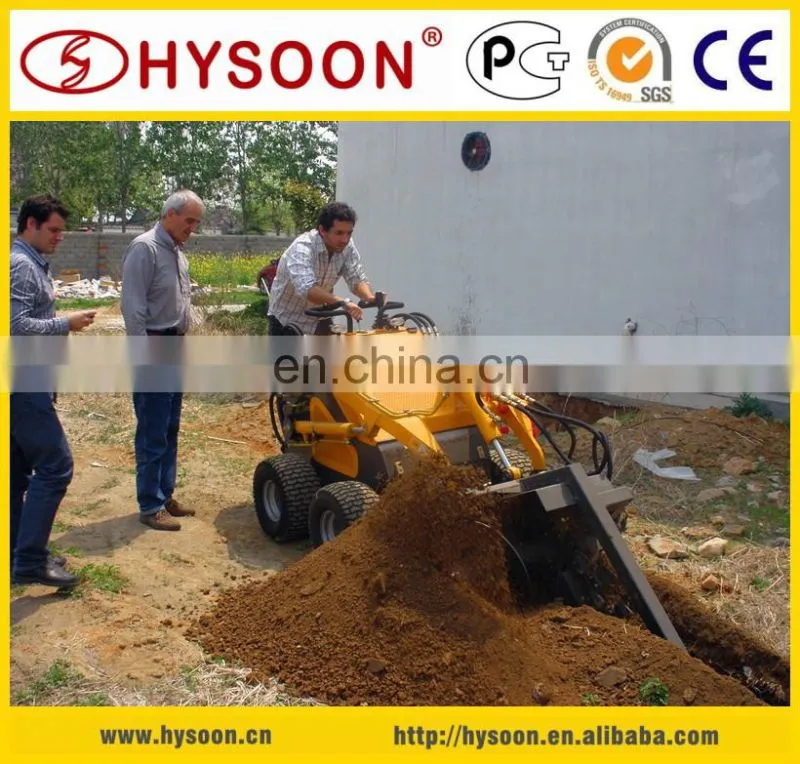

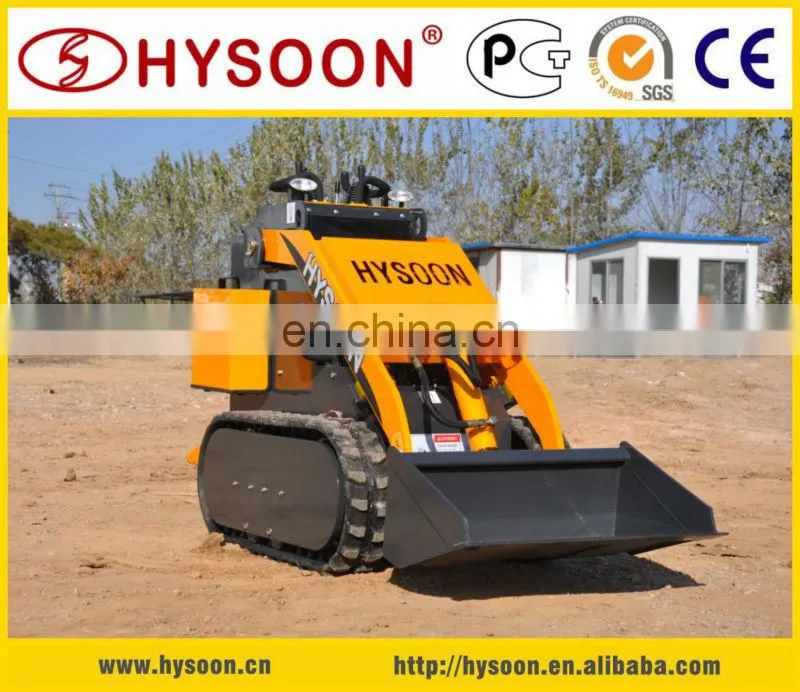

3.Products pictures of skid steer loader with attachment .

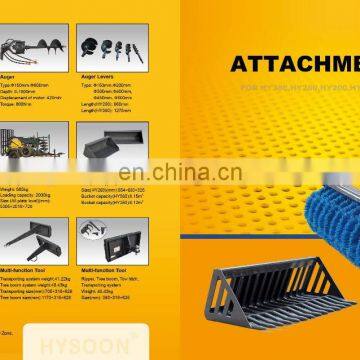

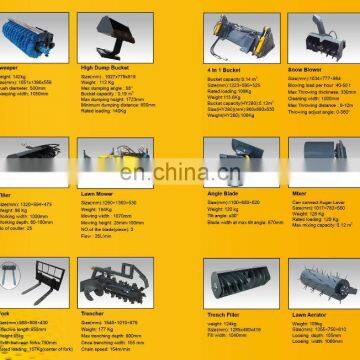

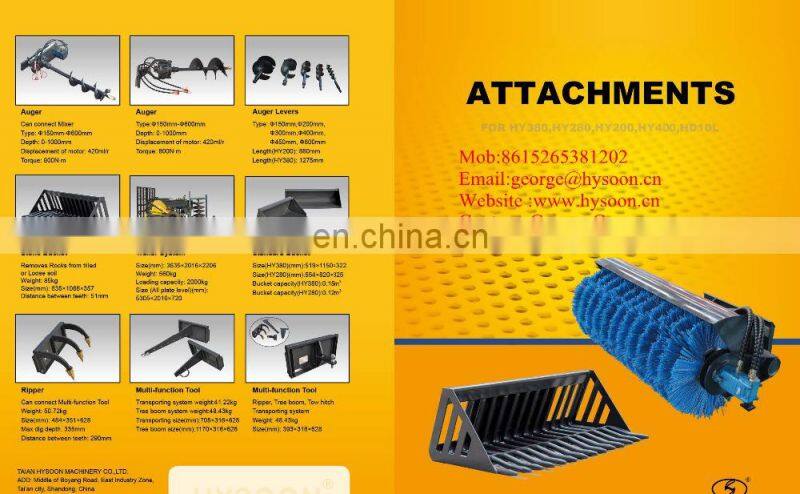

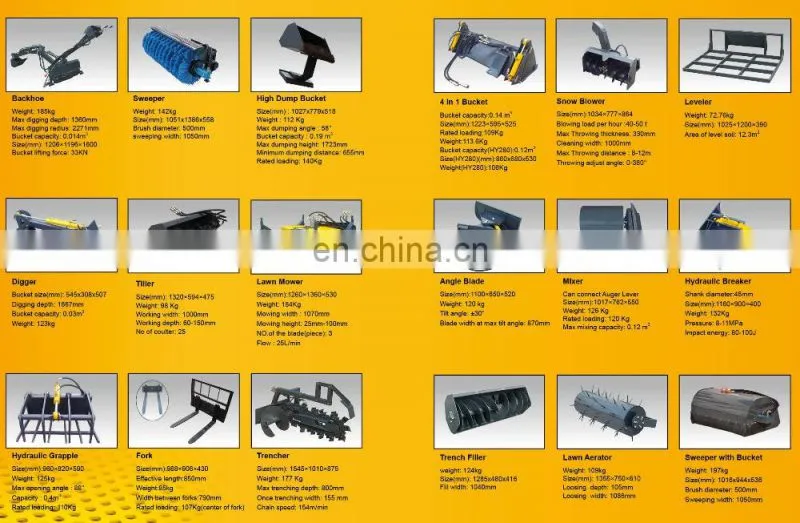

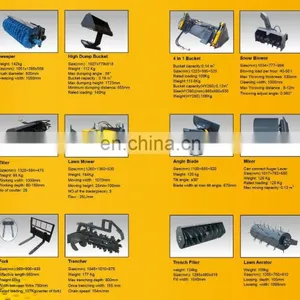

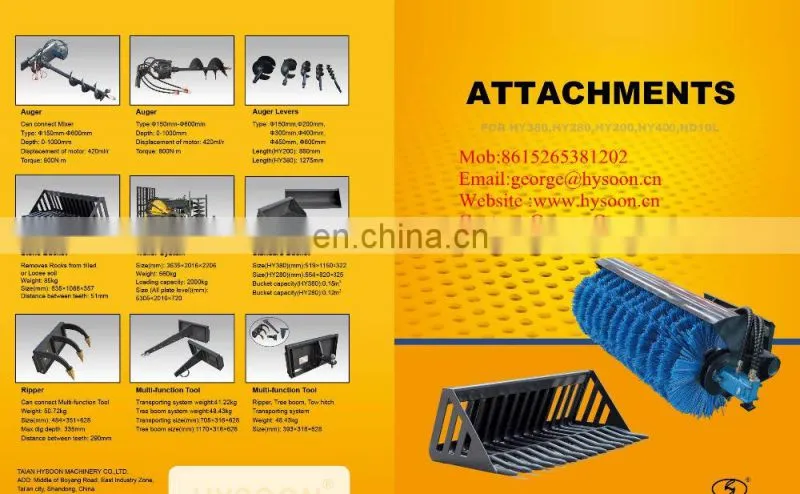

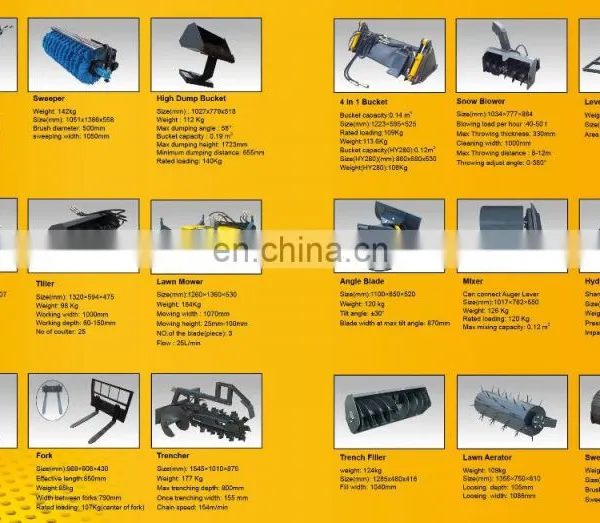

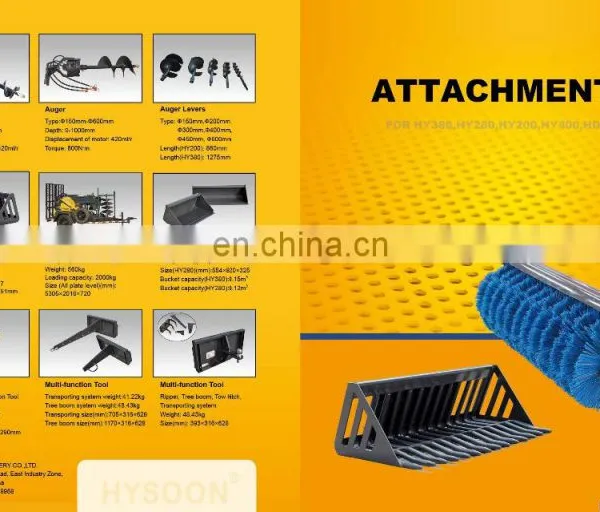

ATTACHMENTS for skid steer loader | |
|
Package for skid steer loader attachment
If LCL , use plywood & iron frame package , It’s very strong to protect the products .
If FCL , loading into container directly : 8 pieces/20'ft &16 pieces/40'ft
We also produce the following products , please click the following pictures for more products information :
Exhibition for skid steer loader attachments
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .

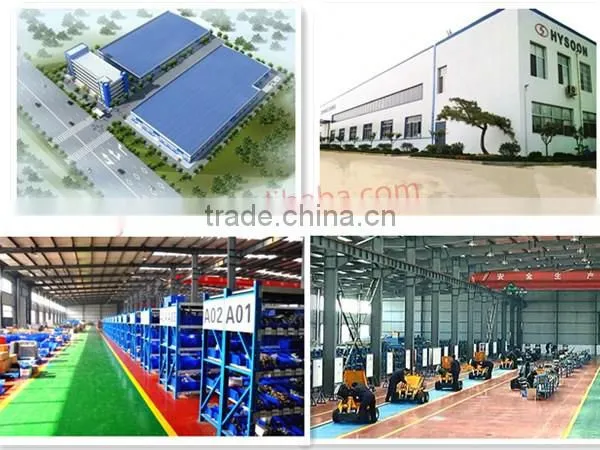

Warmly Welcome you to visit our factory!
