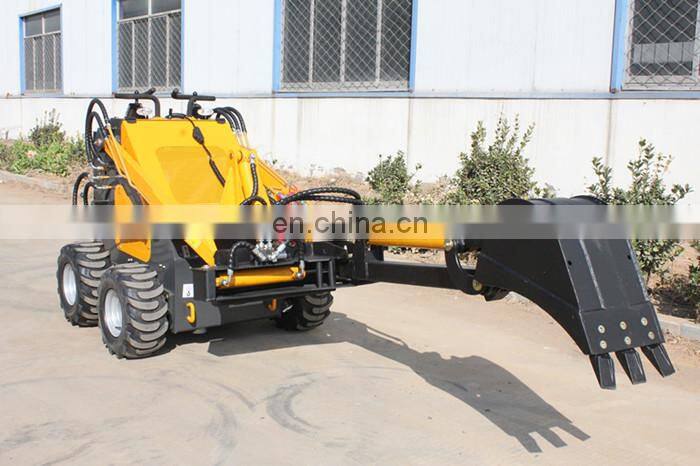

Walk behind mini excavator loader HY380
Hysoon HY380 mini excavator loader can change different attachments at job site, it can change just needs a few of minutes , to adapt to different working environment and job contents In this way, shoveling, stacking, lifting, digging, drilling, crushing, grasping,pushing, loosening soil, trenching, road cleaning can be respectively carried out. An auxiliary trailer can load all attachments to job site, do whatever you want to do.

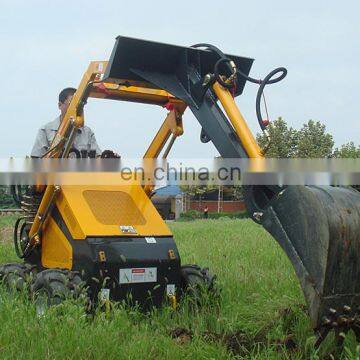

With slewing front hoe:

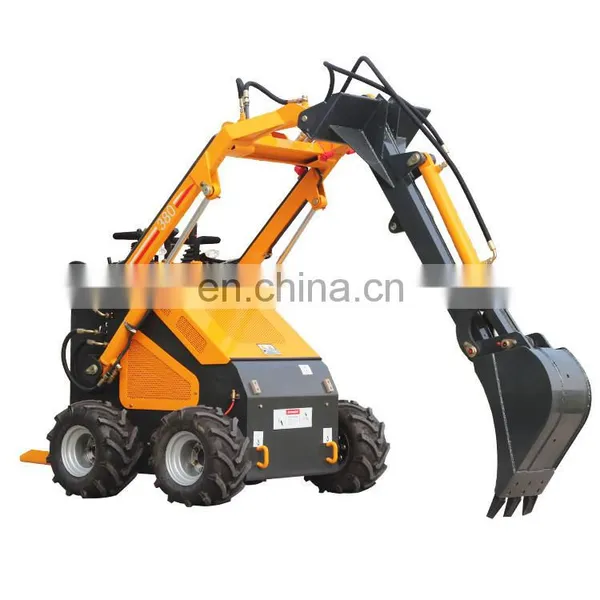

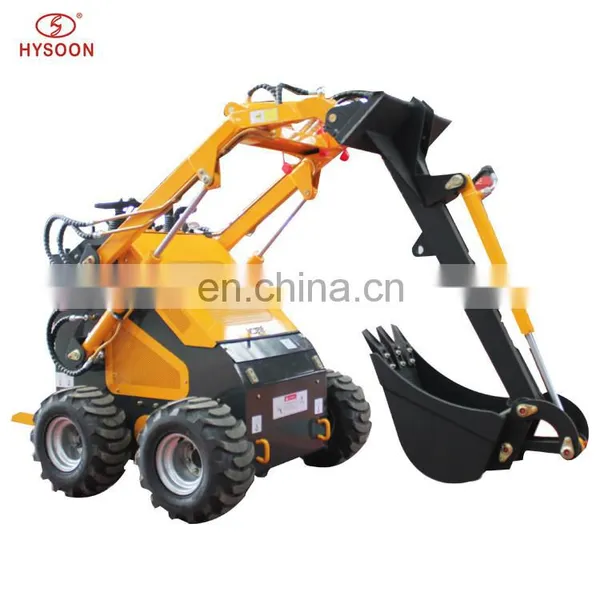

With front hoe (digger)
Digging depth: 1667mm
Bucket size(mm): 545*308*507
Bucket capacity: 0.03m^3
It can be used for site clearing and project closing after large engineering machinery. The 4 in 1 bucket would better choice of attachment for this job, which is with pushing, shoveling,leveling and grabbing 4 functions.
Attachments can be: digger, auger, trencher, sweeper, backhoe, high dump bucket, tiller, lawn mower, hydraulic grapple fork, fork, trencher, 4 in 1 bucket, snow blower, leveler, angle blade, mixer, hydraulic breaker, trench filler, lawn aerator, sweeper with bucket, stone bucket, trailer, standard bucket, ripper, multi-function tool etc.
Host machine description:
· Briggs & Stratton Vanguard gasoline engine, 23hp
· Italian Hydrocontrol valve
· Italian joystick HANSA pump optional
· American WHITE motor
· Ergonomically designed, operating safety
· Quick hitch system
· Balance weight platform optional
· Higher lifting height than similar products
· Stand on or walk behind
· Double hand grip
· Tracked and wheeled type optional
|
1. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine. 3. Joystick handle optional, operating more comfortable. 4. International warranty engine, enjoy local 3 years free engine maintenance. 5. HY380 mini skid steer loader is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine oil, oi filter, spark plug and so on. |
Parameter
HY380 mini skid steer loader |
|||||
Wheel Type |
Track Type |
||||
Max working height(A) |
2143 mm |
2128 mm |
|||
Max pin height (B) |
1884 mm |
1869 mm |
|||
Max dump height(C) |
1488 mm |
1473 mm |
|||
The highest point discharge distance(D) |
348 mm |
399 mm |
|||
Total height (H) |
1233 mm |
1218 mm |
|||
The height from the ground(F) |
118 mm |
105mm |
|||
Wheelbase (G) |
636 mm |
612mm |
|||
No bucket length(J) |
1752 mm |
1752 mm |
|||
Total width (W) |
1160 mm |
1060 mm |
|||
Bucket width (K) |
980 mm |
980 mm |
|||
Total length(L)(with bucket) |
2206 mm |
2206 mm |
|||
Turning radius (R) |
1307 mm |
1317 mm |
|||
Bucket swing angle(β) |
55° |
55° |
|||
Bucket unloading angle(γ) |
30° |
30° |
|||
Opening-closing angle(θ) |
25° |
25° |
|||
Angle of departure(α) |
11° |
10° |
|||
Engine | |||||
Rated Power (KW) |
17.15KW |
||||
Rotating Speed |
3600rpm |
||||
Noise(Dd) |
≤95 |
||||
Hydraulic System | |||||
Pressure |
17Mpa |
||||
Working Time(s) | |||||
Raise |
4.27 |
||||
Dump |
1.34 |
||||
Lower |
3.31 |
||||
Performance parameters | |||||
Operating Load |
200kg |
441Lb |
|||
Bucket Capacity |
0.15m³ |
5.33ft³ |
|||
Max Lifting Force |
375kg |
827Lb |
|||
Travel Speed |
0-5.5km/h |
0-3.4 mile/h |
|||
Operating Weight |
890kg |
1958lb |
|||
Configuration |
Optional configuration |
||||
Engine | |||||
American Briggs&Stratton gasoline engine 23HP. |
Kohler gasoline engine 27hp |
||||
Pump: | |||||
Chinese gear pump, double pump. |
Chinese Triple pump; Italian servo pump(joystick) |
||||
Valve: | |||||
Italian double valve. |
Italian triple valve. |
||||
Operating Handle: | |||||
double hydraulic mechanical handles. |
one servo handle & one mechanical handle |
||||
Moving way: | |||||
wheel type with engineering tires. |
wheel type with solid tires; rubber track type |
||||
Attachment: | |||||
Original with a standard bucket. |
various attachments. |
||||
The small ditch digger HY380 is 360 degree pivot steering, turn radius forward turning is 1307mm. It is especially suitable for the operation of narrow areas such as garden, farm, urban infrastructure, road or construction site, workshop, warehouse, wharf, ship deck and even cabin,underground construction tasks. |
· Packaging for LCL: steel frame & plywood packaging |
|
· Packaging for FCL
|
