1. HY380 mini rubber tracks is a compact , flexiable , Multifunction machine . It owns unique structure , novel appearance , independent intellectual property rights , good performance and much competitive price .
You can do different works by quick change different attachments , like digger , auger , fork , 4 in 1 bucket , sweeper , lawn mower , snow blower , snow blade , stump grinder , trencher , hydraulic breaker , rippler , rotarty tiller and so on . More than 50 kinds of attachments .
2. main specification of HY380 mini rubber tracks
1.Imported American Briggs&Stratton gasoline engin 23HP
2.Italy pump , Italy servo for optional
3.with Engineering tires
4.0.15M^3 bucket capacity
HY380 mini rubber tracks | HY380 | |
Item | metric | Inch |
Max working height(A) | 2128 mm | 83.8 inch |
Max pin height (B) | 1869 mm | 73.6 inch |
Max dump height(C) | 1473 mm | 58.0 inch |
The highest point discharge distance(D) | 399 mm | 15.7 inch |
Bucket swing angle(β) | 55° | 55° |
Bucket unloading angle(γ) | 30° | 30° |
Opening-closing angle(θ) | 25° | 25° |
Angle of departure(α) | 10° | 10° |
Total height (H) | 1218 mm | 48.0 inch |
The height from the ground(F) | 105mm | 4.1 inch |
Wheelbase (G) | 612mm | 24.1 inch |
No bucket length(J) | 1752 mm | 69.0 inch |
Total width (W) | 1060 mm | 41.7 inch |
Bucket width (K) | 980 mm | 38.6 inch |
Total length(L)(with bucket) | 2206 mm | 86.9 inch |
Turning radius (R) | 1317 mm | 51.9 inch |

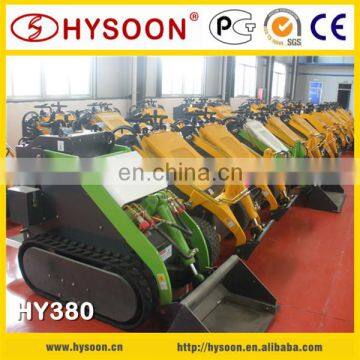

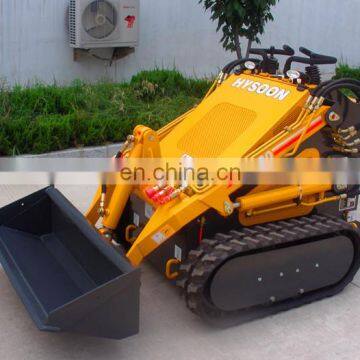

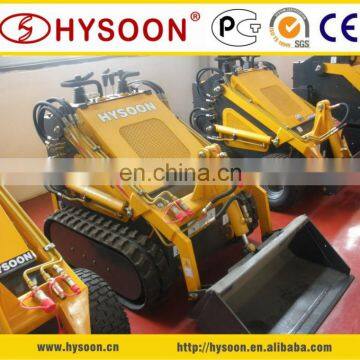

3.Products pictures of HY380 mini rubber tracks
You can aslo choose wheel tyres
ATTACHMENTS for HY380 mini rubber tracks | |
|
If LCL , use plywood & iron frame package for HY380 mini rubber tracks , It’s very strong to protect the products .
If FCL , loading into container directly : 8 pieces/20'ft &16 pieces/40'ft
Warmly Welcome you to visit our factory!
