front end shovel loader for sale
1. HY380 front end shovel loader specification :
1.The engine of HY380 front end shovel loader is Imported American Briggs&Stratton gasoline engine or Kohler engine
2.For HY380 front end shovel loader , you can also choose Italy pump and joystick
3. The machine body of front end shovel loader is very compact ,also various attachments can be used on front end shovel loader to finish diffrent works with high effiency .HYSOON front end shovel loader are very popular in Landscaping , garden ,park , road maintenance , construction , rental company and so on .HY380 shovel loader is a small machine , but has big function .
Item | Metric | Inch |
Max working height(A) | 2115 mm | 83.3 inch |
Max pin height (B) | 1856 mm | 73.1 inch |
Max dump height(C) | 1460 mm | 57.5 inch |
The highest point discharge distance(D) | 388 mm | 15.3 inch |
Bucket swing angle(β) | 55° | 55° |
Bucket unloading angle(γ) | 30° | 30° |
Opening-closing angle(θ) | 25° | 25° |
Angle of departure(α) | 8° | 8° |
Total height (H) | 1205 mm | 47.4 inch |
The height from the ground(F) | 90 mm | 3.5 inch |
Wheelbase (G) | 636 mm | 25.0 inch |
No bucket length(J) | 1752 mm | 69.0 inch |
Total width (W) | 1033 mm | 40.7 inch |
Bucket width (K) | 980 mm | 38.6 inch |
Total length(L)(with bucket) | 2206 mm | 86.9 inch |
Turning radius (R) | 1307 mm | 51.5 inch |
2. HY380 front end shovel loader pictures:
HY380 front end shovel loader can do different works by quick change different accessories .
, like digger , breaker , trencher , 4 in 1 bucket ,fork ,angle blade and so on . HY380 front end shovel loader are multifunction machine , you can use one piece of shovel loader to finish all kinds of works .HY380 shovel loader is no doubt a good guy!

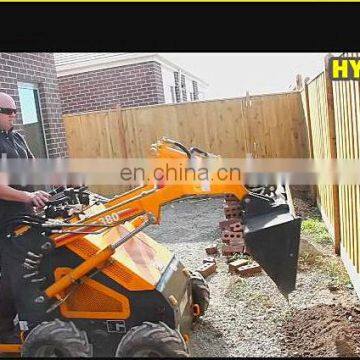

HY380 front end shovel loader with digger and trencher
HY380 front end shovel loader with hydraulic breaker and auger
3.Package for HY380 front end shovel loader
If LCL , use plywood & iron frame package , It’s very strong to protect HY380 shovel loader
If FCL , direct load into the container .20'ft :8 pieces , 40'ft :16 pieces
4. Exhibition for front end shovel loader
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .
Warmly Welcome you to visit our factory!
