China Common Rail Diesel Pump and Injector Test Bench
Functions:
1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.

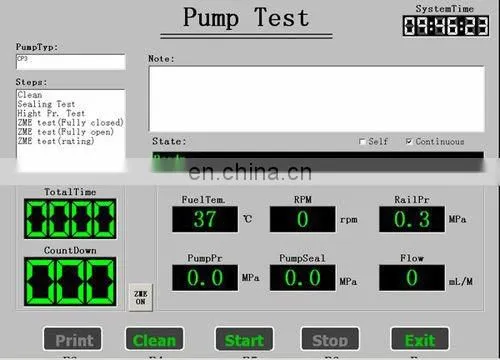

2.Pump test: measure feeding and return volume,pump chamber pressure,feeding pressure,check sealing performance, and functions of ZME valve.

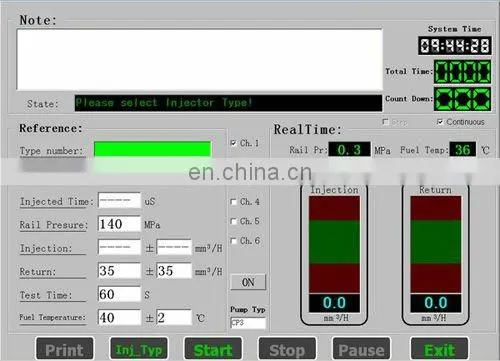

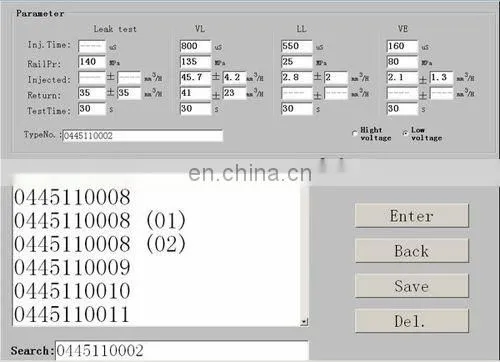

3.Injector test: measure the injected fuel quantity & return volume under full-loaded, idling, pre-injection and Emission status.
4. Check the sealing performance of the injector.
5. Check the solenoid valve.
6. Clean the injector and pump before testing.
7. Clean the ZME separately.
8. Testing 6 oil injectors in one setup.
9. Test electronic high pressure pump VP37 and VE37.
10.Testing pump nozzle & electronic unit pump by additional programming system & adaptor.
11.User can add and edit the data by themselves.
12.Save and print the testing results & customer information.
Characteristics:
1. Full-automatic operation procedure, save the time to set up the data.
2. Germany flow sensor: flow range 0.004-4L/min, test precision 0.3%.
3. Bosch common rail system (original Bosch rail with DRV) is used.
4.Rail pressure is controlled accurately by DRV and ZME valve.
5. Industrial temperature controlling kit enables the temperature to be constant at 40±2°C
6. Original Bosch CP3 common rail pump is equipped.
7. Industrial computer with windows system.
8. Rich database:546 types of data.
9. Self-protection under following status:overheat, oil-mist, overpressure, low oil level,
10. Remote control is convenient for software upgrading and after-sale service.
11.Support Multi-language.
Main technical parameters:
Power |
11kw, 15kw optional |
Oil pump rotation speed |
0-4000 rpm |
Test rang of rail pressure |
0-2000bar |
Test precision of rail pressure |
±0.5Mpa |
Test precision of flow sensor |
0.3% |
Measuring rang of flow sensor |
0.004-4L/Min |
Temperature of test oil |
40±2°C |
Filter precision of test oil |
less than 5μ |
Capacity of tank |
80L |
Dimension |
1780X900X1800MM |
Aggregate weight |
1000KG |
Electricity |
380V, 50Hz, 3 phase |
Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise
that produces common rail test bench, traditional diesel fuel injection pump
test bench, Nozzle Tester, and sells spares parts for repairing variety of
electronic diesel injection systems to serve the automobile aftermarket all
over the world.
The company pursues high standard manufacturing and qualified products. All
the products have passed the quality system certification of ISO9001:2008 &
CE certificate and entered European market. Depending on the stable and
lasting capabilities, our products are well known to international market such
as Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany,
Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and etc
Q: Are you trading company or manufacturer ?
A: We are test bench assembling factory. We have had test bench for 20 years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: How about the use of maintenance technology and equipment ?
A:We have free training about test bench,injector and pump maintenance.
Q: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer, if you have any requirements you can contact us directly.
