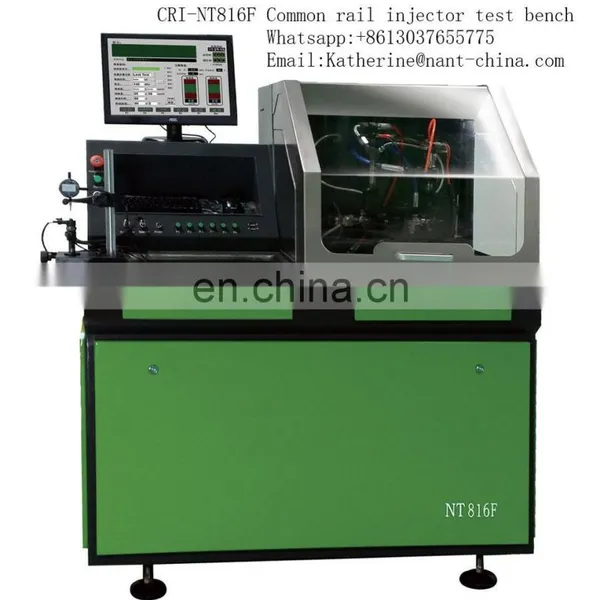

CRI Test Machine CRI-NT816F Including Bosch 3rd Stage Solution and Bosch IMA Coding FunctionUS$ 7,200 - 7,200MOQ: 1 Set -
Common Rail Injector Test Bench NT206 Common Rail Injector Tester Piezo Injector TesterUS$ 4,500 - 4,500MOQ: 1 Set
-
NT926 Common Rail Diesel Test Equipment Test Common Rail Diesel Fuel Test BenchUS$ 6,000 - 6,000MOQ: 1 Set
-
Common Rail Injector Test Bench EPS207 for Testing Solenoid Valve Injectors and Piezo InjectorsUS$ 3,600 - 3,600MOQ: 1 Set
-
NT100 CR Injector Tester Diesel Injector Nozzle Tester Fuel Injector TestersUS$ 1,700 - 2,000MOQ: 1 Set
Bosch third tools
Function introduction:
1.High pressure cleaning: high pressure cleaning impurities attached to internal parts of injector.
2.Atomization test: to judge whether the injector is blocked through the atomization effect.
3.Single injection: the operator can set the number of injections to conduct a single injection observation.
4. Sealing test: check the sealing performance of nozzle, nozzle cap nut and solenoid valve.
5. Injector test: Test the injected fuel & return volume under rating, idling, Emission, pre-injection and pre-injection 2 status.
6. Test the current of injector solenoid valve, valve assembly lift, fuel injection lift.
7. Fully automatic test of different types of solenoid valve injector and piezoelectric injector
8. Check,save, print data and customer information.
Main configuration:
1. Equip original Bosch CP1 pump
2. Stainless steel fuel tank with industrial air conditioner to control temperature ± 2 ℃ circularly
3. Equip original German high-precision flow sensor
4. Equip original Bosch DRV, pressure sensor (0-2000bar)
5. Equip Bosch 3rd stage stroke testing program and adapters
6. Include DRV, fuel injection cooling treatment device
7. Include Oil circuit emptying treatment device
8. You can set the injection current curve by yourselves
9. The system includes original fuel injector current curve and data
10. Main motor power 5.5KW, optional three phases 380V 50HZ, three phases 220V 60HZ, two phases 220V/60Hz in convenient for the different need of power supply in different countries.
System advantage:
1. Windows XP system, to achieve full automatic operation
2. Industrial computer system control, high-speed operation, stable performance
3. Equip original Bosch data, test accuracy similar with the world-leading test bench.
4. Powerful database: include more than 1,000 kinds of Bosch, Delphi, Denso, Siemens injector plan,
and test plan could be updated free of charge
5. Injector database management: edit,save, revise and delete
6. The operator can choose to test step by step or continuous test
7. The operator can set injection time and injection pressure during testing
8. The operator can choose testing results automatically judged by computer system or judge it by yourself.
9. Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface
10. Support customized products and application.
