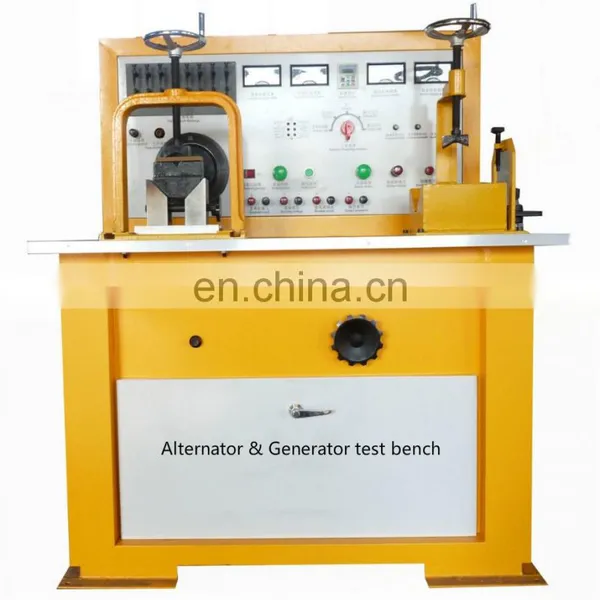

Car repairs electrical BCQZ-2B Integration generator starter motor generator test bench

General introduction

This test bench uses variable frequency speed regulation ,pointer instrument display.
It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc.

Advantages:

1.It uses variable frequency speed regulation
2.It displays result by pointer instrument .
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It possesses high control sensitivity and strong controllability.
7.It is with charge fuction

Test items:

Test Starter:  5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M
Test Alternator & Generator:  1.5 KW, (12V 24V 48V), 5000RPM
Test generator: no load and load ,speed, voltage,current;
Test starter: no load, load, braking torque;
Test electronic regulator: regulate voltage and current, limit current;
Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;
Test battery: voltage; test electric horn: sound;
Test electric wiper: action;
Test ignition coil
