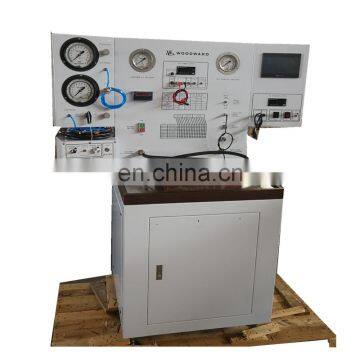

BK2000 speed controller test machine automatic speed governor test bench
BK2000 governor test bench is developed by our engineers and technicians with more than ten years of governor maintenance experience. Its excellent performance, compact structure and low price will become one of the platforms for you to check, test and adjust governor performance.
BK2000 speed governor test bench is a kind of speed governor test equipment which can test the governor conveniently and corrects the governor parameters accurately far from the engine or turbine. It can test UG-8, UG-32, UG-40, 3161, PG (with standard base and drive shaft), PG-EG, EGB 200, 3 produced by Woodward Company. 00, PG 2 00300500, PGA, SG, PSG, EGB-2, EGB-58, LSG-10, PG-PH, EG-3, EG-10, TG-13 governors and non-Woodward products such as EUROPA, RHD6, TY111, TY555 governors and actuators. The non-standard governor base and output shaft governors (actuators) produced by Woodward and other models or other non-listed

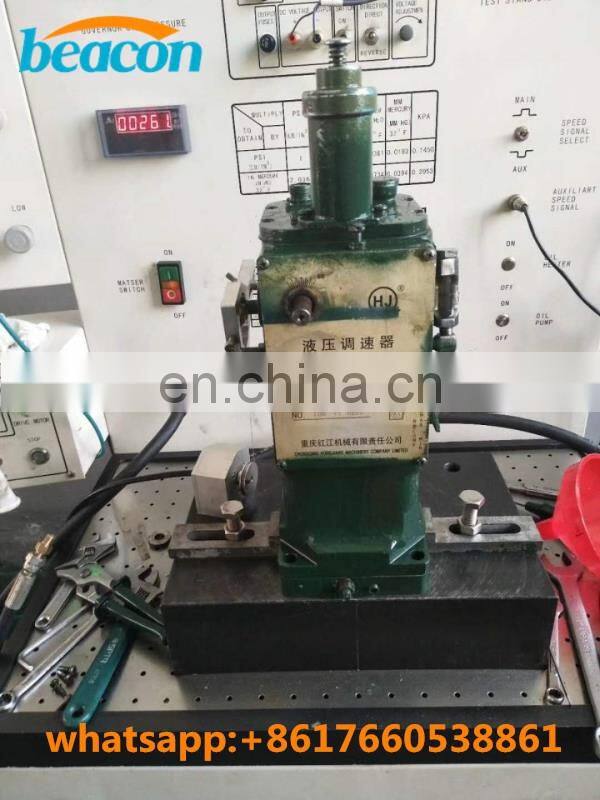

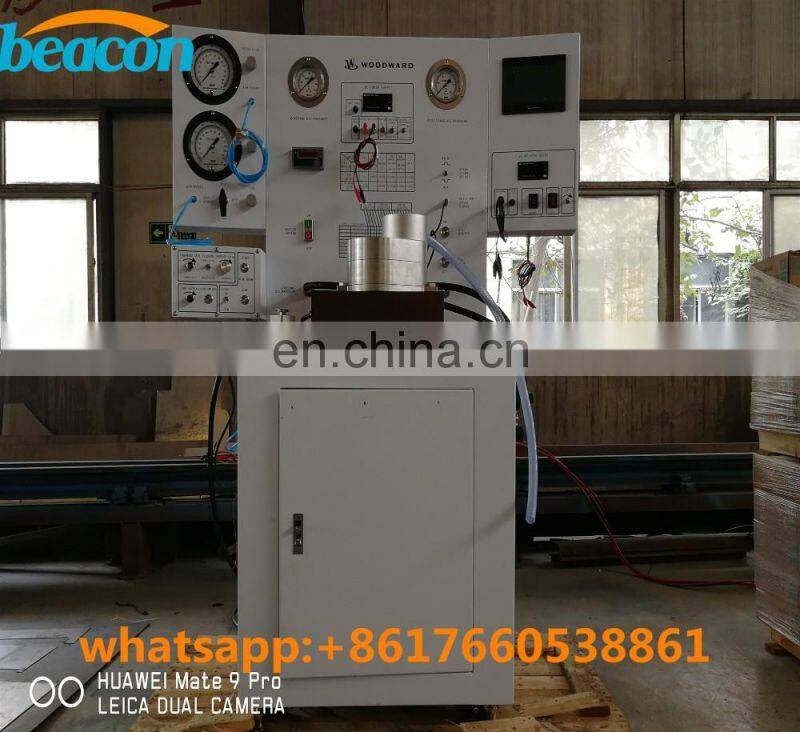

Detail Photo
The contents of the governor or the governor of the BK2000 governor test stand are usually as follows:
1. Governor oil pump pressure.
2, stop at high speed or low speed.
3, gas or electricity safety parking device.
4, air pressure control or hydraulic control speed setting. It
5, electromagnetic coil or AC / DC motor speed setting.
6, speed setting.
7, output shaft stroke.
8. Load limiting control function.
9, electric control control / hydraulic control actuator.
10, the stability of the governor (on the test stand).
11, repair loophole inspection. The governor test bench is not an engine or turbine, and it is impossible for the user to expect the governor test bench to replace the turbine or engine that ultimately determines the governor's performance. The reason is that it is impossible for any governor test bench to provide exactly the same driving torque, torque, connection mode, turbocharging effect, acceleration and deceleration effect, and control characteristics of connecting rod group as the engine or turbine. Therefore, it is normal that the performance of the same governor mounted on an engine or turbine and mounted on a test bench may differ. However, the governor test bench can provide a quick and convenient way to test the governor as the final device in the engine or turbine. Users of governor test bench can carefully and completely test, adjust or set the variable parameters such as pressure, speed, stop, load limit and speed adjustment on the test bench before the governor is installed with engine or turbine. Practice has proved that, in most cases, the governor installed on the engine or turbine according to the governor factory parameters on the test bench can achieve satisfactory results.
The main technical parameters of the BK2000 governor test stand are:
1, 3.7KW AC motor drive;
2, SIEMENS PLC;
3, provide adjustable 0MP 0.8MP, room temperature to 60 degrees centigrade pressure oil. Tank capacity: 26 litres (about 5 gallons);
4 and 3 times speedup;
5. Three sets of double-scale (MP, PSI) barometers (mechanical type); dial diameter: 150mm; accuracy level: 0.25, MP PSI double-scale dial
6. Two sets of dual-scale (MP, PSI) hydraulic meters (0-4MP, 0-1MP each set); dial diameter: 100mm; accuracy, etc.
Class: 1.5; case material: 304SS
7, 0-1A DC power supply and 3 bit ammeter.
8, 0-110V DC power supply and two bit half voltmeter.
9. The height of the working face is about 900 millimeters (no feet, no casters).
10. The working speed range of the test-bed is 200~2500RPM 7500RPM), speed accuracy: + 1 turn.
11, power supply: 3X380V; 50HZ, voltage fluctuation range: -10%~+10%
12, power: 5500W;
13, compressed air demand: more than 0.5MP (air compressor user provided);
14, seven inch color screen.
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
