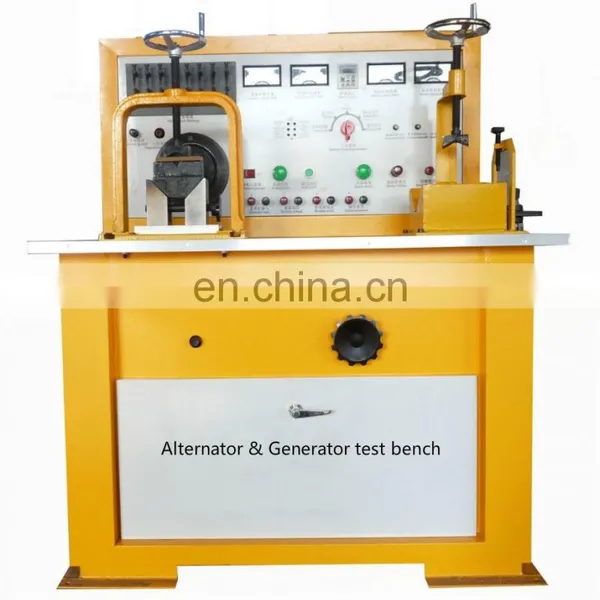

LGCS-2B Auto Electrical Generator Alternator Starter Test Bench
US$ 2,000 - 2,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Beacon
Place of Origin:
Shandong, China
Model Number:
LGCS-2B
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or other any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LGCS-2A Auto Electrical Starter and Alternator Test BenchUS$ 6,800 - 8,000MOQ: 1 Set -
Electronic Equipments LGCS-2A Generator Starter Testing MachineUS$ 6,800 - 8,000MOQ: 1 Set
-
Electrical LGCS-2A Starter Alternator Testing MachineUS$ 9,600 - 12,000MOQ: 1 Set
-
Electrical LGCS-2A Alternator and Starter Motor Test Bench MachineUS$ 9,600 - 12,000MOQ: 1 Set
-
LGCS-2A Automobile Starter Motor Testing Machine Generator Starter Integration Test BenchUS$ 6,800 - 7,800MOQ: 1 Set
Brand Name
Beacon
Place of Origin
Shandong, China
Model Number
LGCS-2B
Power
Electronic
Product Description
This test bench uses variable frequency speed regulation ,pointer instrument display.
It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc.
Advantages:
1.It uses variable frequency speed regulation
2.It displays result by pointer instrument .
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It possesses high control sensitivity and strong controllability.
7.It is with charge fuction
Test items:
Test Starter: 5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M
Test Alternator & Generator: 1.5 KW, (12V 24V 48V), 5000RPM
Test generator: no load and load ,speed, voltage,current;
Test starter: no load, load, braking torque;
Test electronic regulator: regulate voltage and current, limit current;
Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;
Test battery: voltage; test electric horn: sound;
Test electric wiper: action;
Test ignition coil
It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc.
Advantages:
1.It uses variable frequency speed regulation
2.It displays result by pointer instrument .
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It possesses high control sensitivity and strong controllability.
7.It is with charge fuction
Test items:
Test Starter: 5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M
Test Alternator & Generator: 1.5 KW, (12V 24V 48V), 5000RPM
Test generator: no load and load ,speed, voltage,current;
Test starter: no load, load, braking torque;
Test electronic regulator: regulate voltage and current, limit current;
Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;
Test battery: voltage; test electric horn: sound;
Test electric wiper: action;
Test ignition coil
MODEL NUMBER | LGCS-2B |
Language | English/Spanish, etc |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | depend on request |
Motor power | 2.2kw |
Regulating speed of frequency converter | 0-5000Rpm |
Frequency converter power | 7.5kw |
External battery | Prepare one self for starter testing |
Turning direction | Positive and negative |
Adjusting mode | Rotary |
Three-pin discharge | 8 groups in parallel |
ignition angle index plate | 360°division |
range of adjusting clearance | 0-15mm |
Testing starter max braking current | 1000A |
Test starter max braking torque | 100N.m |
Accessories: | Accessory wires, blank plates for starters, fuses, etc. |
Packing sizes | 1440*900*1580mm=2.05CBM |
Weight | N.W: 250kgs G.W: 280kgs |

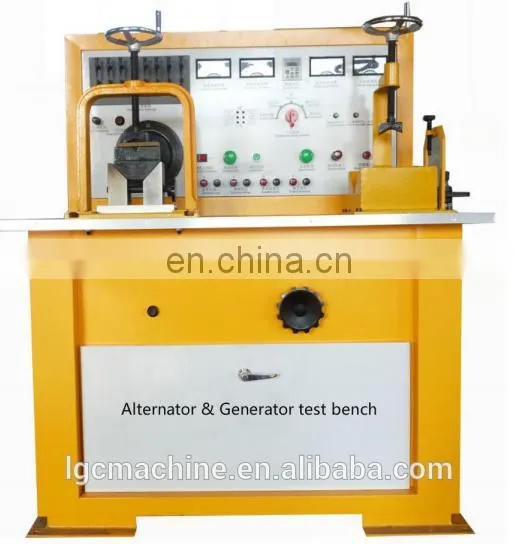

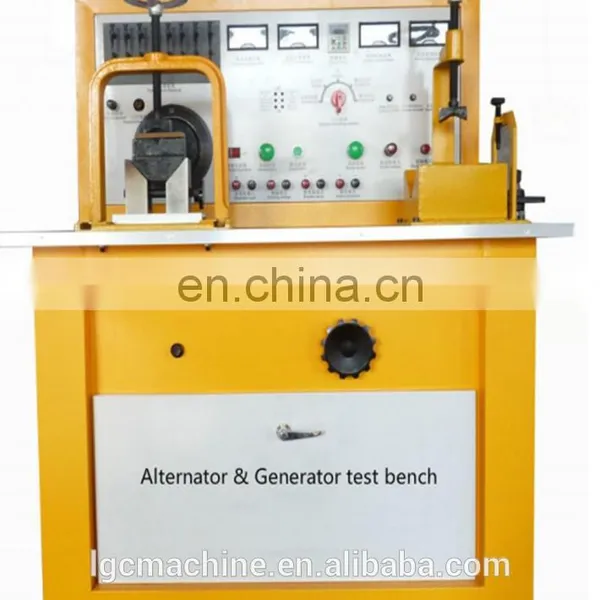

Detailed Images
Packing & Delivery
Related Products
Pls point the photos ,you will see more details :
Certifications
Our Company
JINAN BEACON MACHINE CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"
FAQ
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
