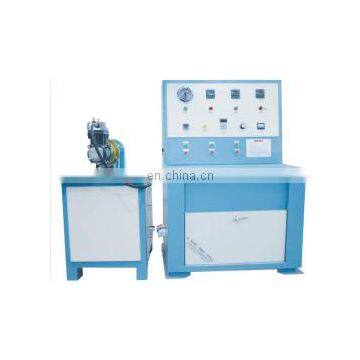

BCKS-2A Automobile Air Compressor Braking System Test Machine

Function & Parameter

1.General Introduction

This test bench is used for performance test of air compressor in braking system of various vehicles, it is a ideal test equipment in air compresser maintenance.

It is specially suitable for public bus repairing and detection.

2.Test item

It is to test, under rated rotate speed, the time the air compressor needs to reach the specified air pressure.

It can test the oil temperature,air temperature and recycled water temperature of air compressor.

3. Technical parameter:

Working power supply: AC 380V 50HZ 3 phase

Motor power:11KW

Frequency converter power: 11KW

Frequency speed adjustable range: no load 0-5000rpm

                   Load 0-2000rpm(continuously adjustable)

Air pump subsidiary tank: 15L

Oil pump rated pressure:0-1.0Mpa

Lubrication oil temperature test range:0-100 degrees

Air temperature test range:0-100 degrees

Water temperature test range:0-100 degrees

1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;

STEP2,then we will make a PI for you to confirm all the order detail;

STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.

 2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.

3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.

4.Q: what is your after sale service?

A: One year warranty for our product, whole life technical support whole-life.

5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
