Home > Products > Balance Machine > YYW-500A Automatic turbocharger balancing machine

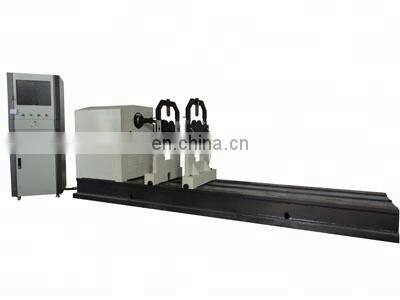

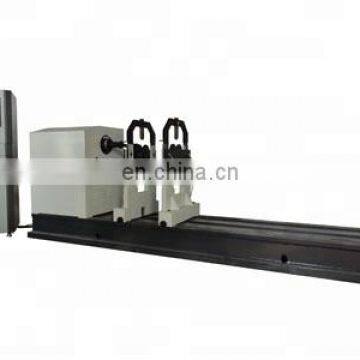

YYW-500A Automatic turbocharger balancing machine
- 1000 Set / Sets per Month
- Qingdao
- T/T Credit Card
- YYW-10000A Armature balancing equipment
- LCD screen automatic YYQ-100 belt drive rotor dynamic balancing machine
- LCD screen YYQ-100A Rotor automatic armature calibration rotor balance machine
- YYQ-160A automatic soft bearing dynamic balancing machine
- Automatic armature YYQ-50A Mixed Flow Fan Belt Drive Balancing Test Equipment
- High speed YYQ-300A soft bearing flywheel balancing machine
Product Details
Brand Name: | LGC | Place of Origin: | Shandong, China | Model Number: | YYW-500A |
Power: | Electronic | Usage: | Balancing Machine |
Product Description
YYW-500A Automatic turbocharger balancing machine
Industrial control computer 19 "LCD color screens
WidowsChinese and English system double choice
With AM-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module ,Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display
Optional function
1,Balance Angle automatic tracking function
2,Parking automatic positioning function
3,Vector Angle function decomposition
Lathe bed according to user requirements lengthen
Supporting shaft neck can be based on user demand increased
Characteristics: this series is hard supporting horizontal dynamic balance machine, with roller bearing, universal couplings drive, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, agricultural machinery, textile machinery, and other industries, can be in the single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment defects, and the coupling compensation function and so on many kinds of measuring method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints.
Technical parameters:
Mass scope of workpiece kg | 20-500 |
Biggest diameter workpiece mm | 1500 |
Two span of supports mm | 70-1600 |
Trunnion support mm | 20-120 (120-240 for choice) |
Balancing speed r/min | 300-1500 stepless speed regulation |
Min achievable residual unbalance amount | ≤1gmm/kg |
Unbalance reduction ratio% | ≥90% |
Motor power | 5.5Kw |
mode of speed regulation | Variable frequency speed regulation |
Transmission model | Universal joint |
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
Q:What's the warranty?
A:One year
