Description:

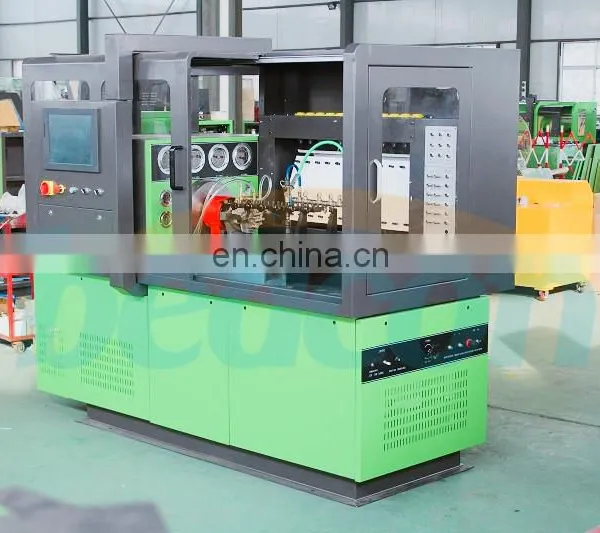

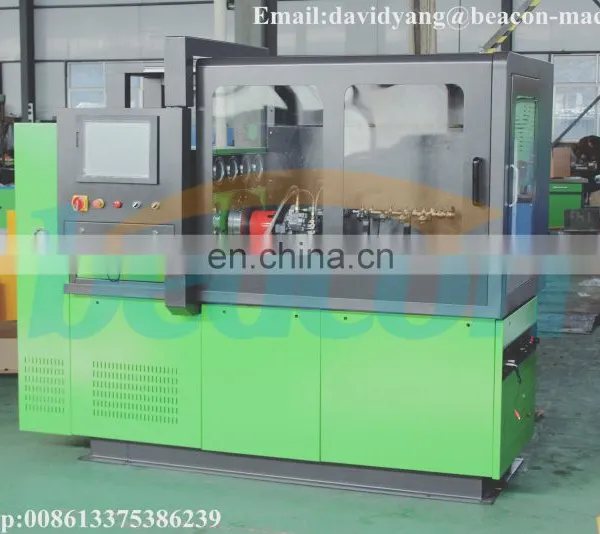

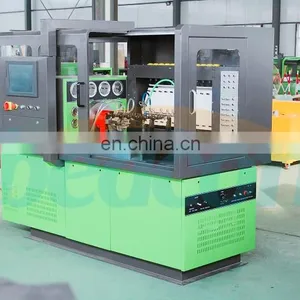

This BCS815A mainly test for common rail pump and injector, and diesel fuel
injection pump(Mechanical Pumps)
1.Motor power:7.5KW, 11KW, 15KW, 18.5KW, 22KW
2.Industrial PC with touch screen
3.Compressor cooling
4.Oil tank(including heating,refrigeration,liquid level detection,temperature
detection)
5.Diesel tank(including heating,refrigeration,liquid level detection,temperature
detection)
6.Flow meter(German ZDM) detecting the fuel injection flow rate
7.Flow meter(German ZDM) detection of common rail pump
8.Flow meter(German KRACHT) to detect oil flow
9.Flow meter(German KRACHT) detection of diesel oil return flow
10.2sets of B-OSCH common rail +DRV
11.Oil tank temperature sensor
12.Diesel fuel tank temperature sensor
13.Diesel supply temperature sensor
14.Diesel return temperature sensor
15.Oil pressure sensor
16.Diesel supply pressure sensor
17.Diesel return pressure sensor
18.Diesel pump internal pressure sensor
19.Oil pressure closed loop control module
20.The device is convenient to move and position the roller
BCS815A Common Rail Injector Pump Test Bench Diesel Fuel Injection Pump Test Bench Function:
Common Rail System Testing:
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world’s first successful
development
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test VP44 VE VP37 pump
10.Test RED3 RED4 TICS ZEXEL electronic control pump
11.Drive circuit board(solenoid valve electric parameters to enhance the voltage current,time,pull in voltage ,current,time,keep voltage ,current,time,according to the setting of parameters of production factory)
12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal, output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.
Driving signal waveform can be programmed.
Diesel Fuel Injection Pump Testing Function:

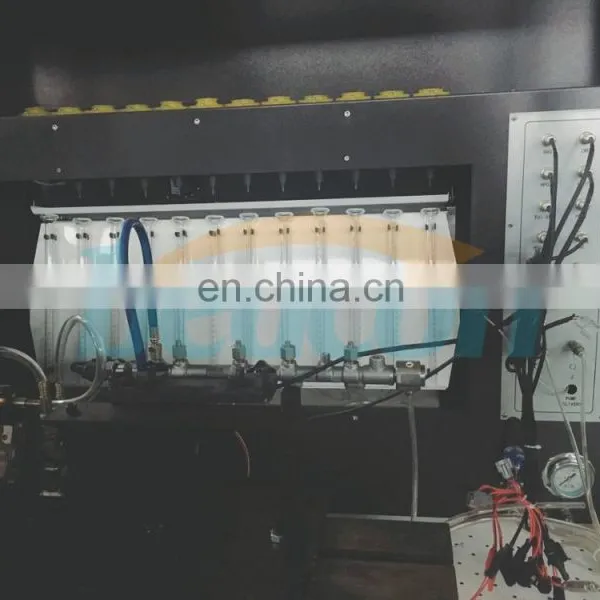

1.Measurement of each cylinder delivery at any speed.
2.Test point and interval angle of oil supply of injection pump.
3.Checking and adjust the mechanical governor.
4.Checking and adjust the distributor pump.
5.Experiment and adjusting of behavior of supercharging and compensatory device.
6.Measurement of oil return of distributing pump.
7.Testing of the electromagnetic valve of distributor pump.(12V/24V)
8.Measurement of the internal pressure of distributor pump.
9.Checking the sealing of injection pump body.
10.Install tube of auto-sucking oil supply can check on oil supply pump(including VE Pump)
11.Checking the travel of stroke (Optional)
12.Oil lubricate (Optional)
13.Forced cooling system (Optional）
EUI / EUP Testing Function
HEUI Testing Function.
TECHNICAL PARAMETERS:
Adjustable cylinders numbers | 12 | ||||||
RPM | 0-4000 | ||||||
Support RPM | Pre-set | ||||||
Capability with Pump Type | All in-line and Rotary Pump | ||||||
