Introduction

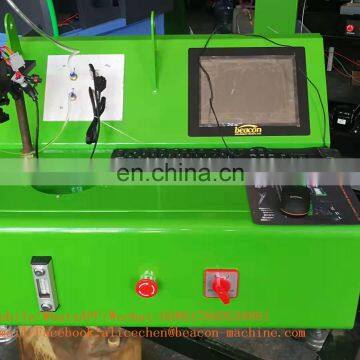

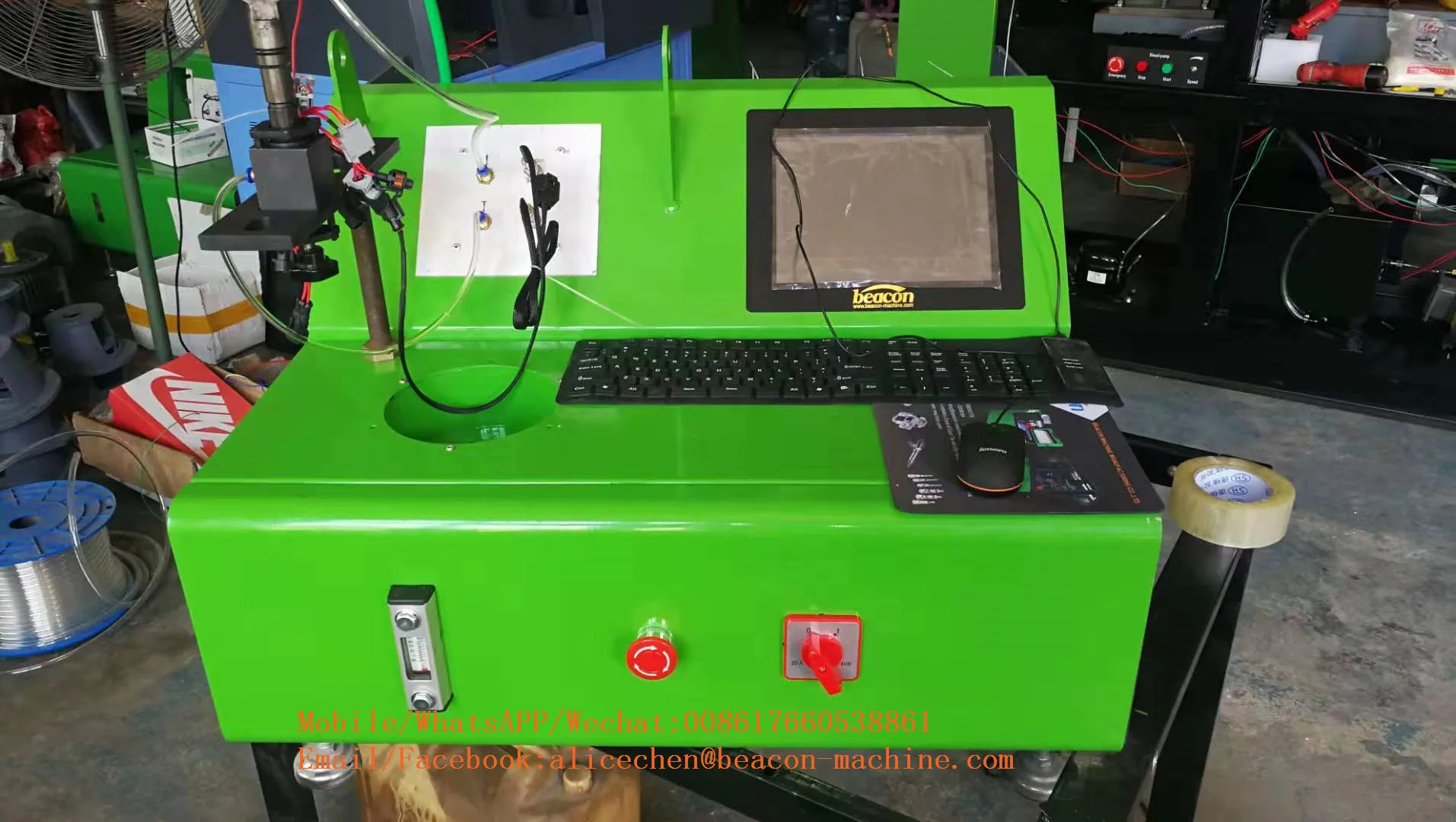

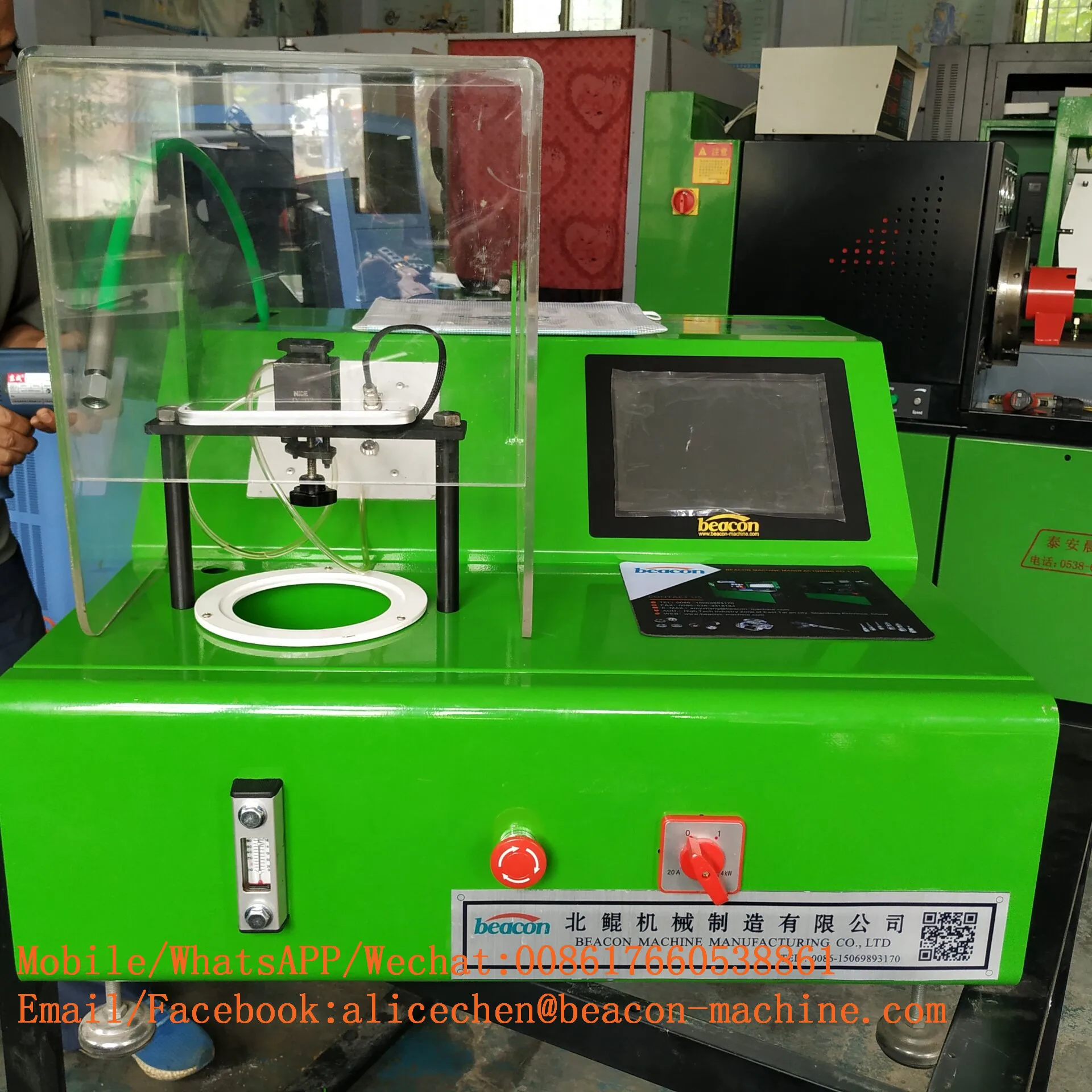

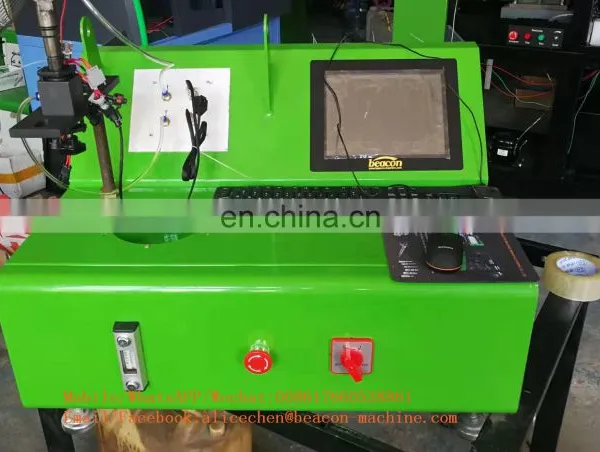

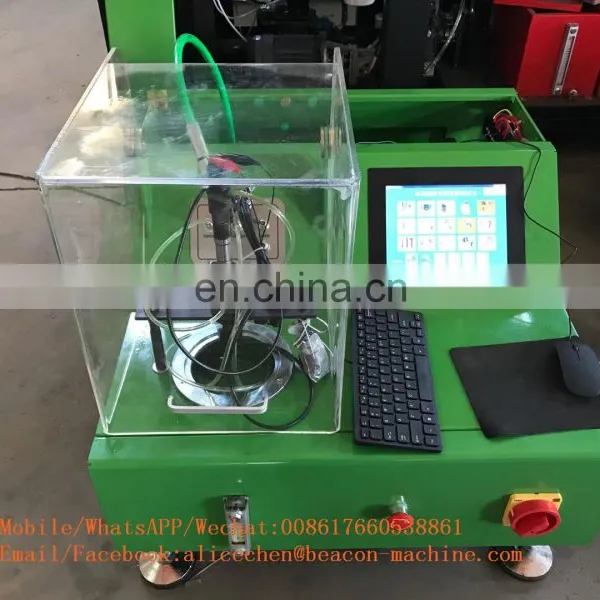

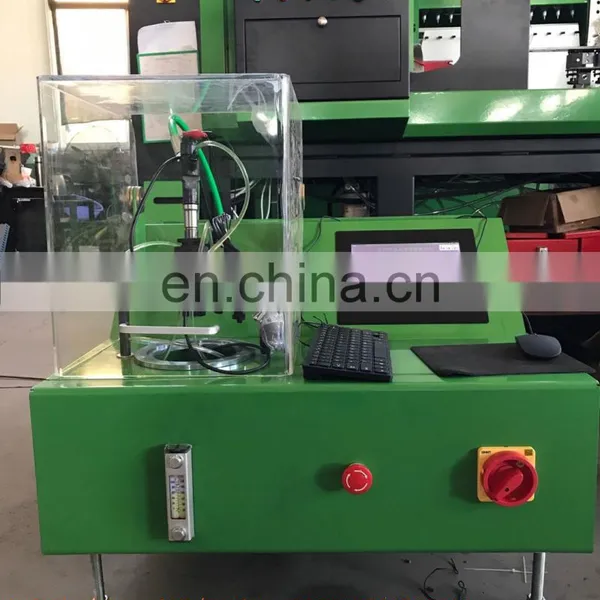

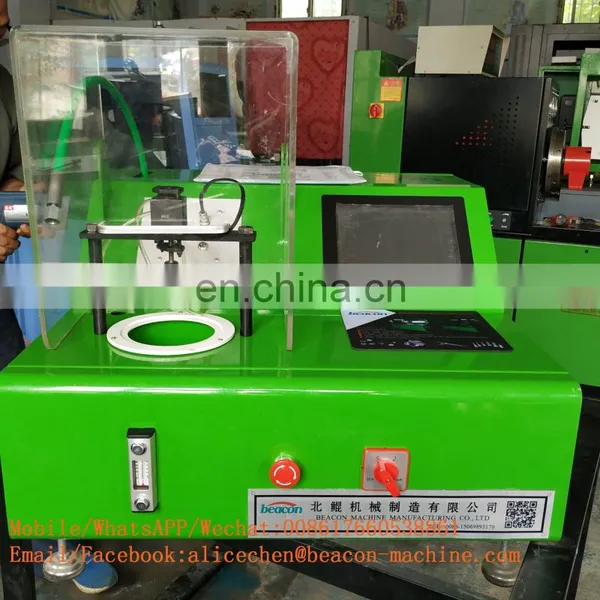

EPS200 Common Rail Injector Test Bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer,
Windows operating system. The oil quantity is measured by sensor and displayed on computer screen. All data can be searched and saved. It adopts BOSCH original common rail pump to provide 0~1600 bar of rail pressure. The rail pressure can be adjusted automatically.
it can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Advanced technology, steady performance, precise measurement and convenient operation.
Main function
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
Technical characteristic
1. Pulse width | 0.1~20ms |
2. Continuous injection times | 0~1000 |
3. Fuel temperature | 40±2°C |
4. Rail high pressure | 0~1600 bar |
5. Test oil filtered precision | 5μ |
6. Input power | 380V/50hz/3phase or 220V/60hz/3phase |
7. Rotation speed | 0~3000RPM |
8. Oil tank capacity | 16L |
9. Overall dimension(MM) | 865×775×1430 |
10. Weight | 150KG. |

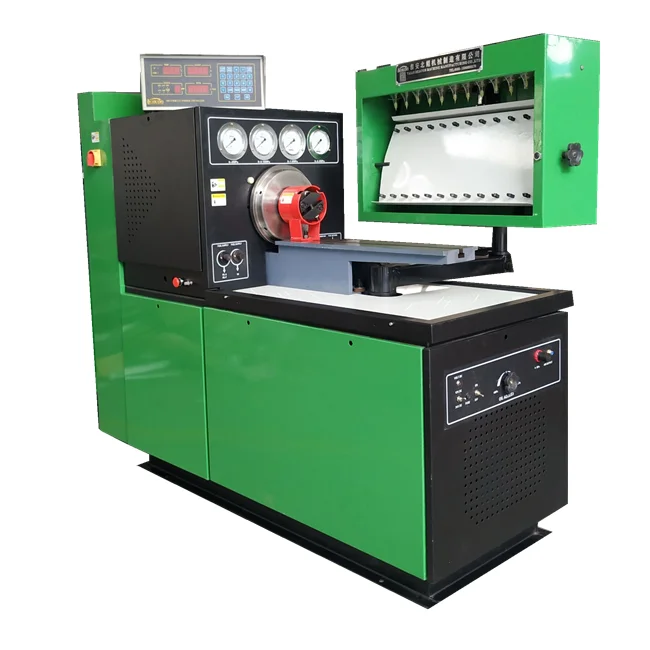

12 PSB diesel fuel injection pump test bench

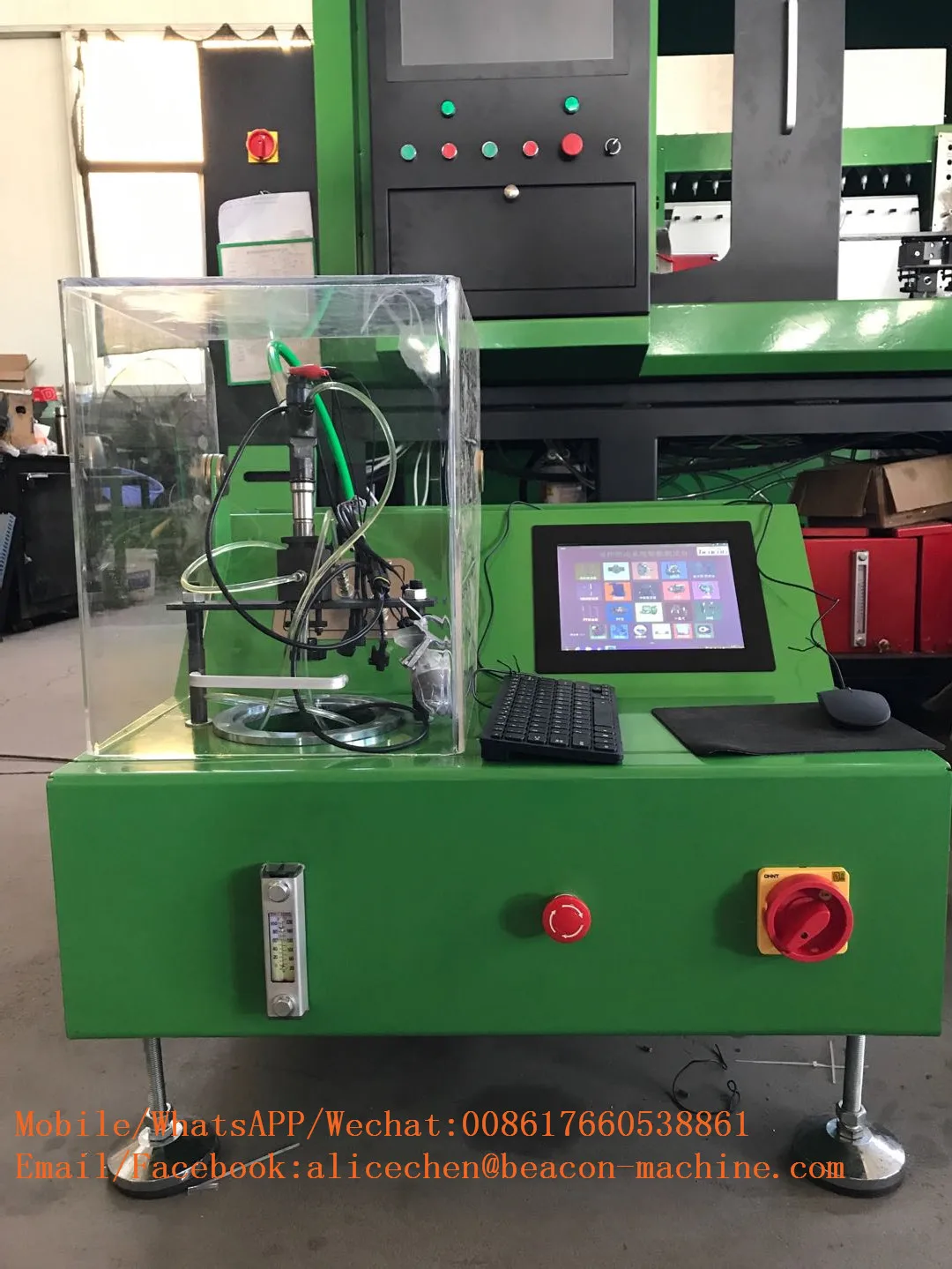

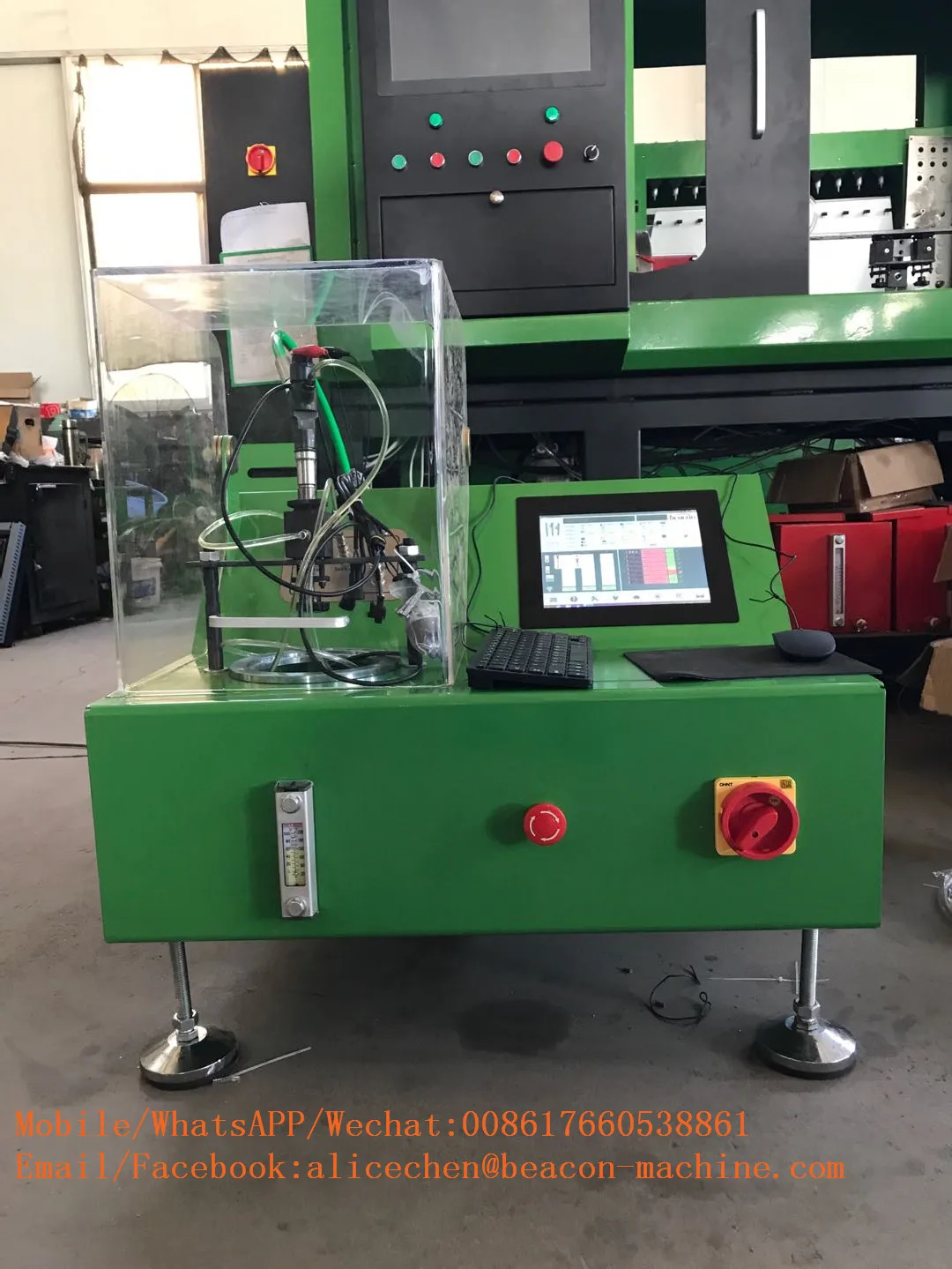

Beacon EPS205 common rail test bench wth QR code

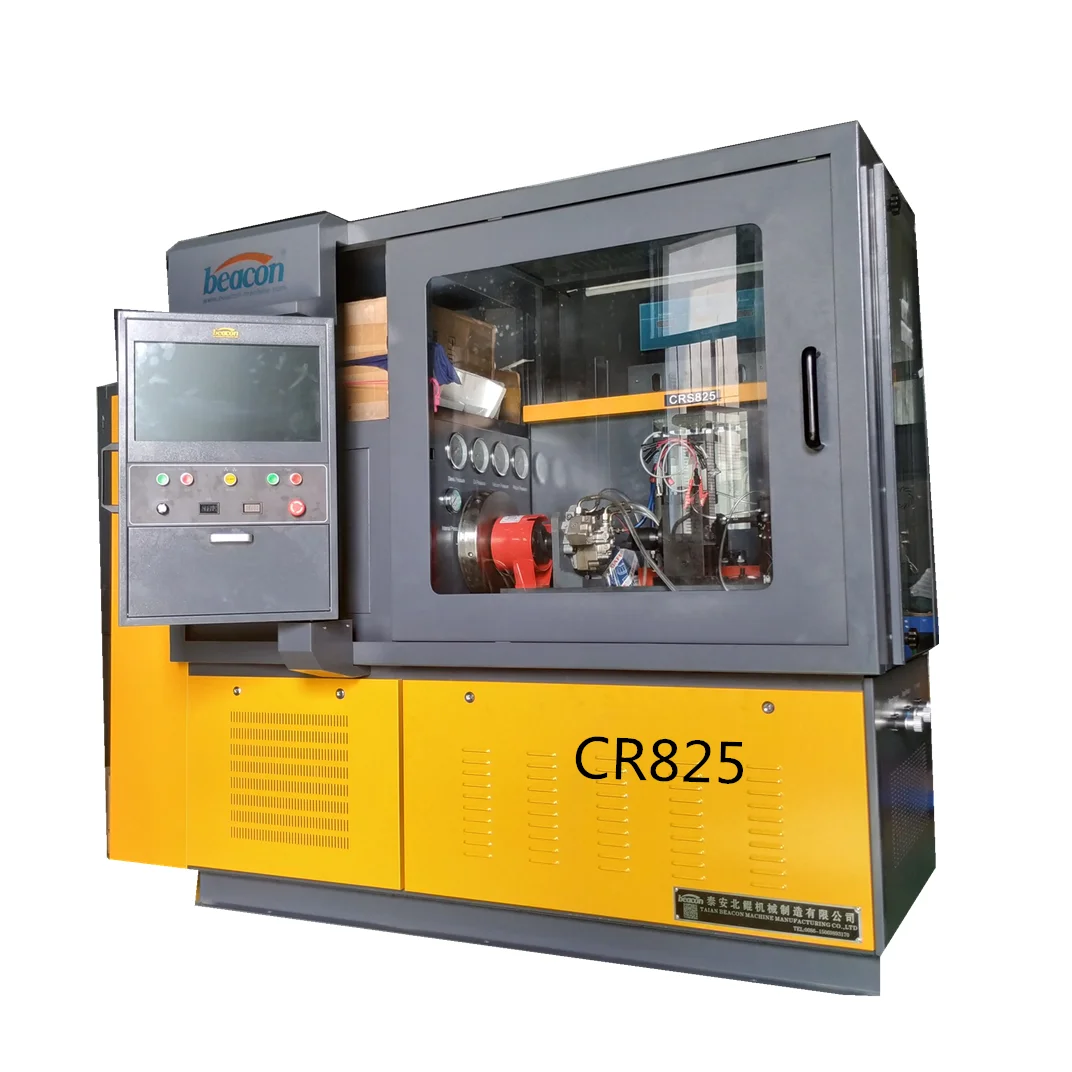

cr825 common rail diesel fuel injection pump test bench BC-CR825

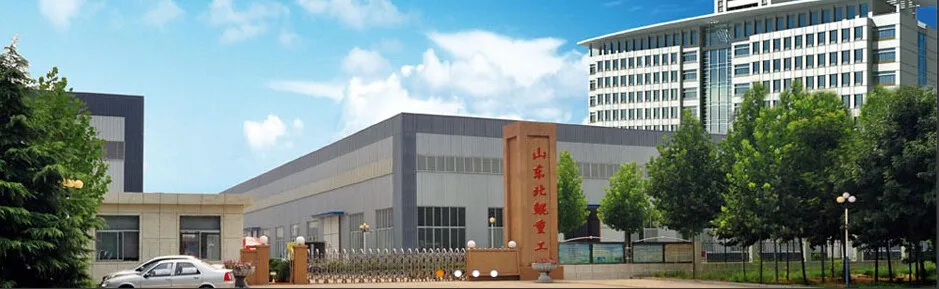

JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
