Home > Instruments & Meters > Test Instrument > Test Machine > EPS208 EPS205 Diesel Fuel Common Rail Injector Test Bench
US$ 2,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BEACON
Place of Origin:
Shandong, China
Model Number:
EPS208
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Sea Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Injector Coding Test Bench Common Rail EPS200 EPS208 EPS205 CR Piezo Fuel Injector TesterUS$ 3,000 - 3,000MOQ: 1 Set -
EPS208 EPS205 EPS200 EPS Series Common Rail Injector Coding Piezo Diesel Fuel Injector Test BenchUS$ 3,000 - 3,000MOQ: 1 Set
-
EPS200 NTS205 New Common Rail Injector Test Bench EPS208 Diesel Fuel Injector TesterUS$ 2,000 - 3,000MOQ: 1 Set
-
EPS208 Upgrade Multifunction Diesel Common Rail Injector Tester Test Bench Eps 208US$ 2,000 - 3,000MOQ: 1 Set
-
EPS208 Common Rail Diesel Injector Tester EPS205 EPS200 Piezo Injector Test Bench ControlarUS$ 2,000 - 3,000MOQ: 1 Set
Brand Name
BEACON
Place of Origin
Shandong, China
Model Number
EPS208
Power
Electronic
Product Description
EPS208 diesel fuel common rail injector test bench Bosch EPS205 QR Code
EPS208(Common Rail System EPS208)high pressure common rail injector test bench is imitation diesel engine ECU（Engine Control Unit），by the same time supply Bosch, Electric installation, Delphi, Siemens and other common rail system control signals（CP1/ CP2/ CP3/ HP3/ HP4/ DELPHI），Drive high pressure common rail pump and high pressure common rail injector to work，The driving signal parameters can be set according to the actual situation of the user，And can be saved in groups,It is convenient for maintenance personnel to judge and maintain the working condition of high-pressure common rail system.
Power of EPS208High Pressure Common Rail Test-bed is 2.6KW。
1, Main motor speed | 0-3000RPM |
2, Motor power | 1.5kw |
4, Oil pressure | 0-2000bar |
6 Delivery Oil CountControlControl accuracy | 0-1000 times 1 times |
7, Fuel pressure control Control accuracy | 0-2000bar 1bar |
8, Electronic power | 220V 1phase |
>>>CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen;
3. More than 700 kinds of injector data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect
7. Pule and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11.Frequency converter inside to keep the RPM.
>>>FUNCTION
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
Piezo injector testing(option function)
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5.Electronic fuel delivery measuring, automatic testing and detection.
6. Data can be searched and saved.
Detailed Images
Good news!!! Super September good deal huge discount product !! Please click below photo to check!

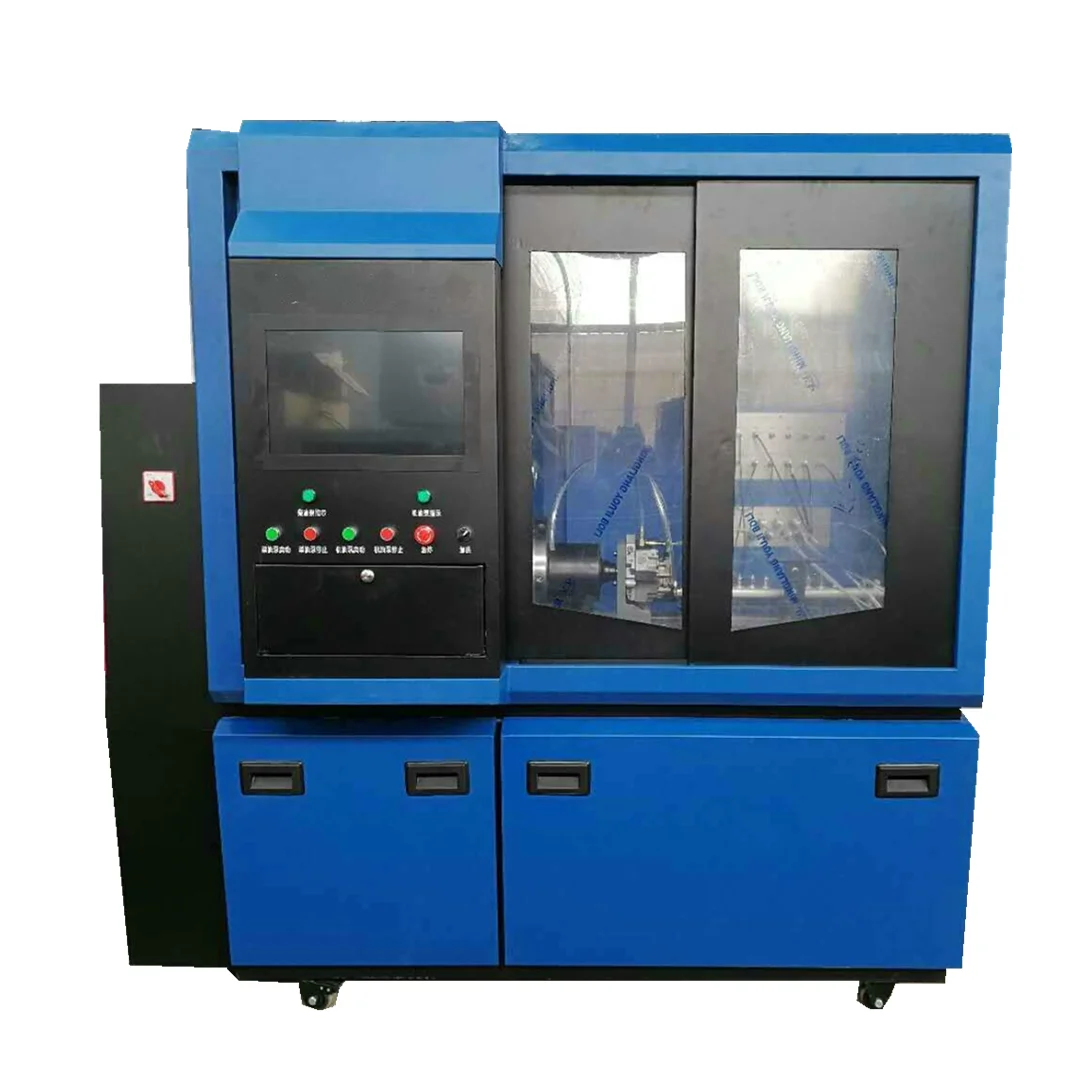

CR917S multifunctional common rail injector pump heui eui eup test bench with coding function
BK2000 automatic speed ship governor test bench

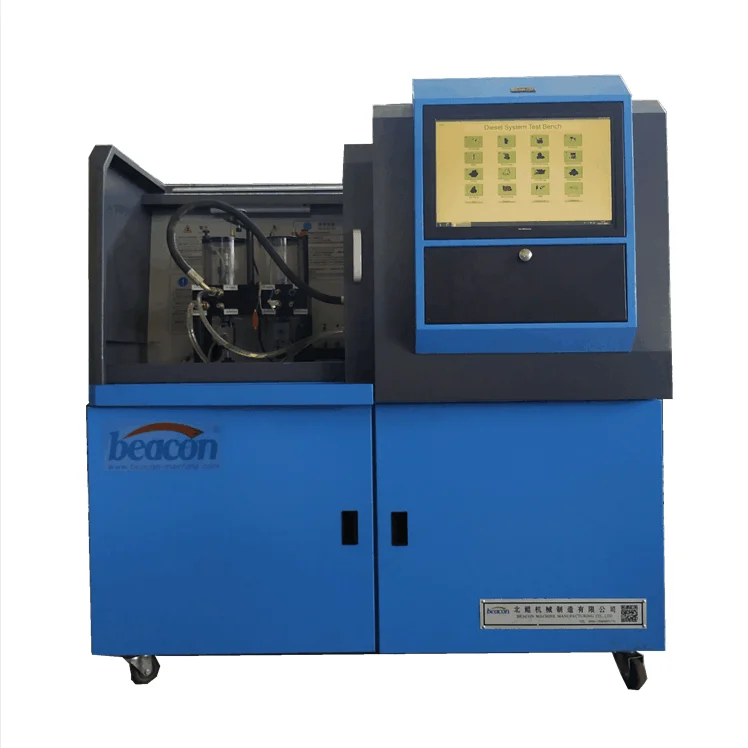

Automotive electrical CR318 Heui common rail injector test bench with double oil road

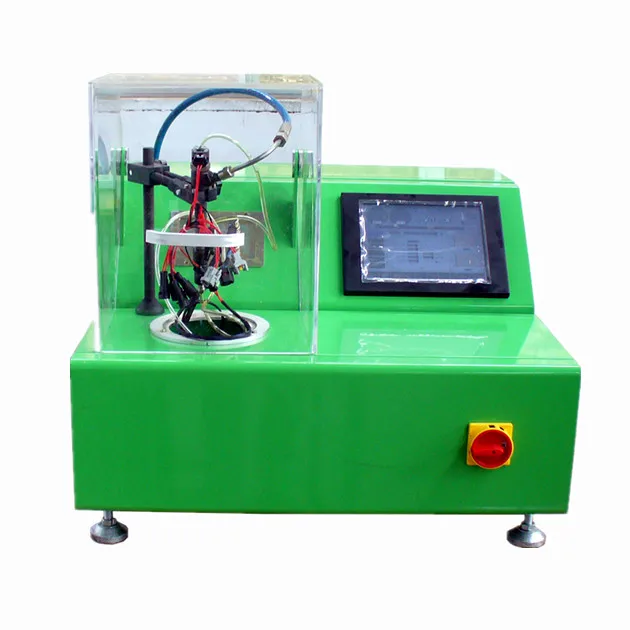

Beacon Machine EPS200 common rail diesel injector test bench with IQA coding

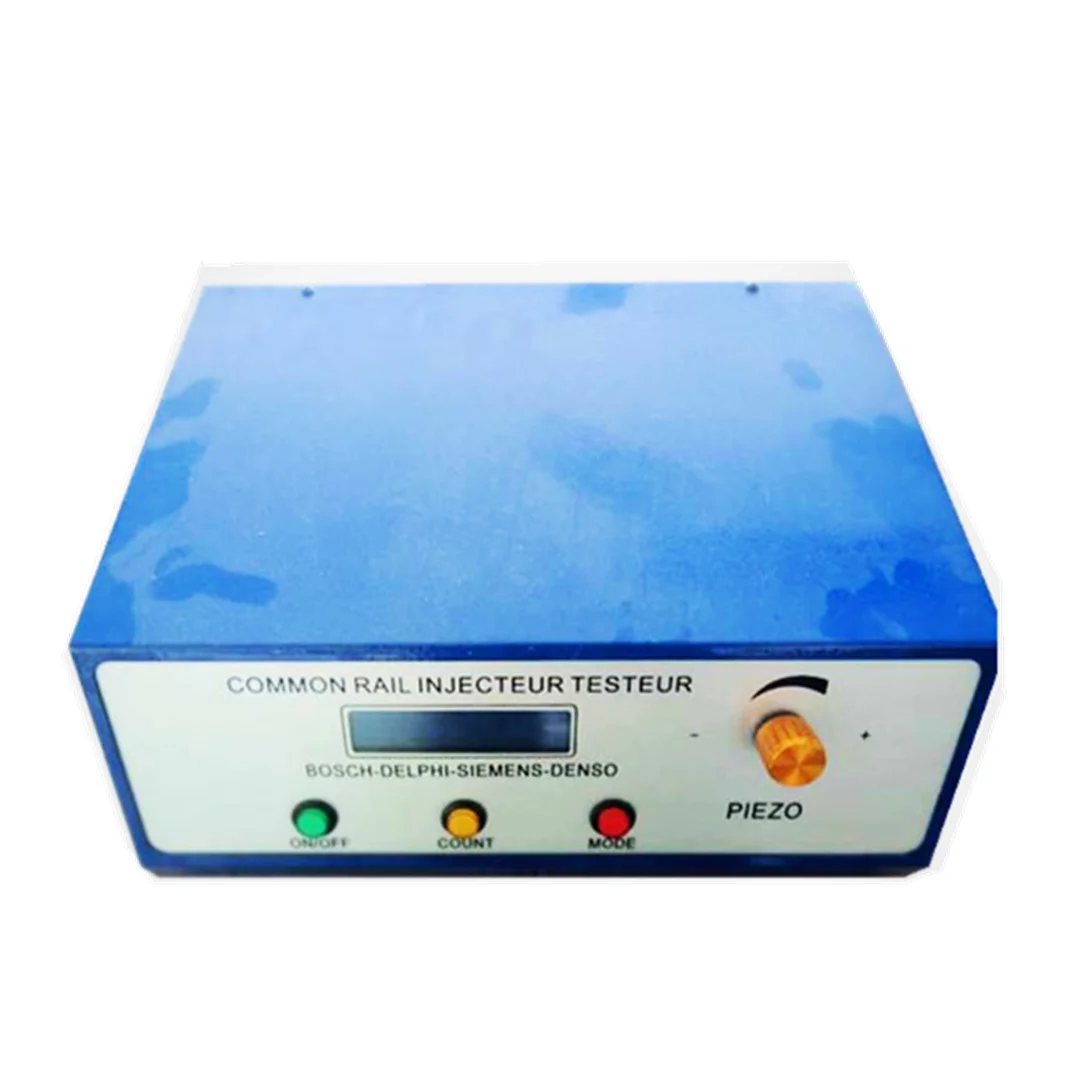

CR1000a diesel fuel CRDI common rail piezo injector tester

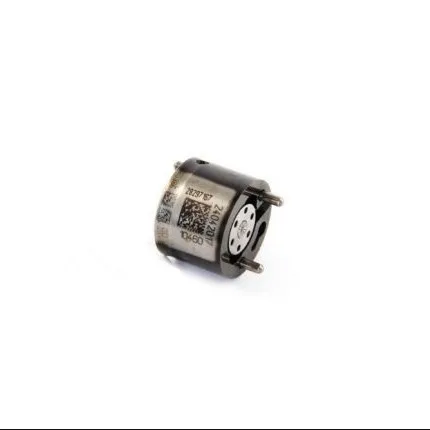

Beacon common rail control valve 9308-625c 625c
Certifications
Packing & Delivery
Our Company
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
